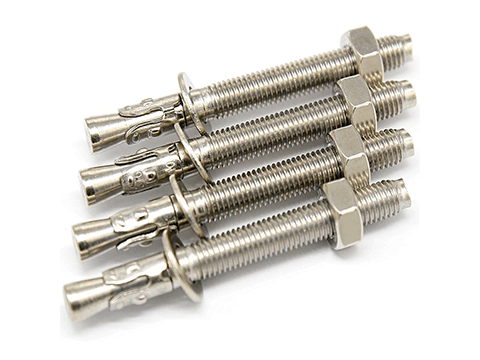

Stainless Steel Anchor Bolts

Stainless steel anchor bolts are fasteners made from stainless steel and are primarily used to secure equipment and components to foundations like concrete and walls. Leveraging the properties of stainless steel, they offer excellent corrosion and oxidation resistance and are adaptable to humid, outdoor, acidic, and alkaline environments. They are widely used in construction, chemical engineering, and marine engineering, ensuring long-term connection stability and making them a reliable choice for securing components in harsh environments. Wanzhi Steel offers stainless steel anchor bolts in various grades, sizes, and types, with custom options available. Don’t hesitate to get in touch with us for more details.

Specification

Item	Stainless steel anchor bolt
Place of Origin	Hebei, China
Standard	AISI, ASTM, DIN, JIS, GB, EN
Aliases	Stainless Steel 304 316 Expansion Bolt Wedge Anchor Bolt

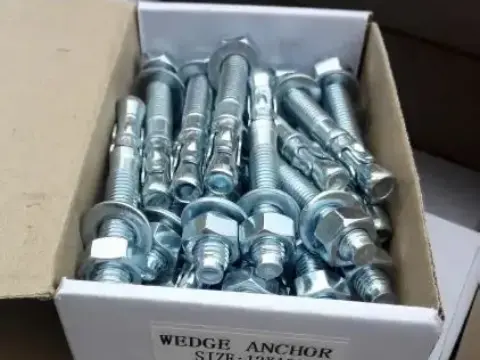

Fastener type	Wedge anchor bolt (Expansion Bolt)

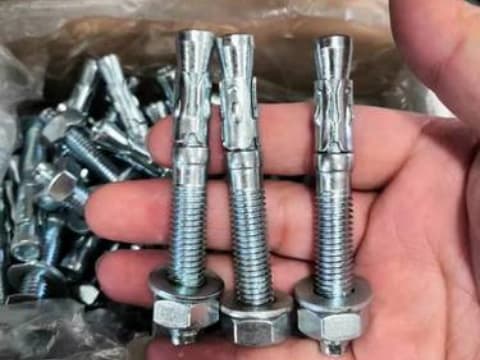

Other optional materials	Galvanized steel, Q235/Q355 carbon steel, brass, aluminum, copper
Production Technique	Cold forging, Hot forming, Machining, Heat treatment, etc

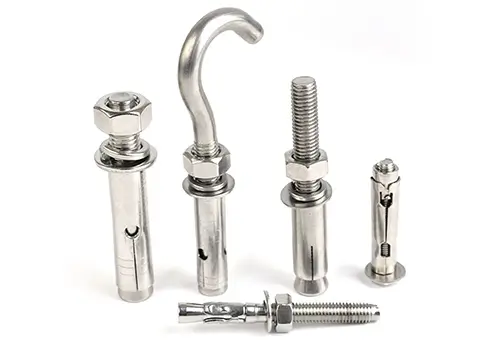

Other main types	Foundation/wedge/chemical/L, U, J Shape hook/toggle/molly/concrete/pin type anchor bolt, anchor eye bolt, etc
Finish	Bright(Uncoated), Nickel Zinc Coated Anchor Bolts
Class	Class4.8, Class5.8, Class8.8, Class10.9, Class12.9
Usage	Metal Structure, Base Plate, Railing, Foundation, Concrete, Brick walls, Steel structure
OEM&ODM	Available
Sample	Free Available
Payment term	TT 30% Advance + 70% Balance
Price Item	FOB, CIF, EXW, CFR, etc

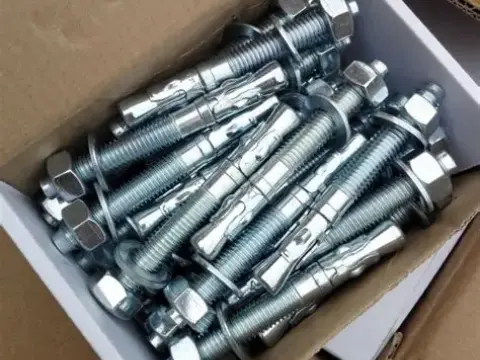

Packing	Standard export packaging
Certification	ISO 9001, SGS, ABS, BV
MOQ	3 Tons

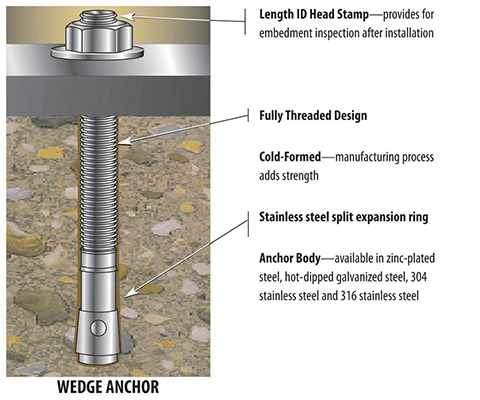

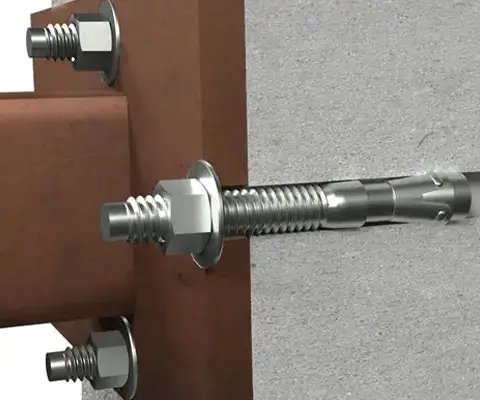

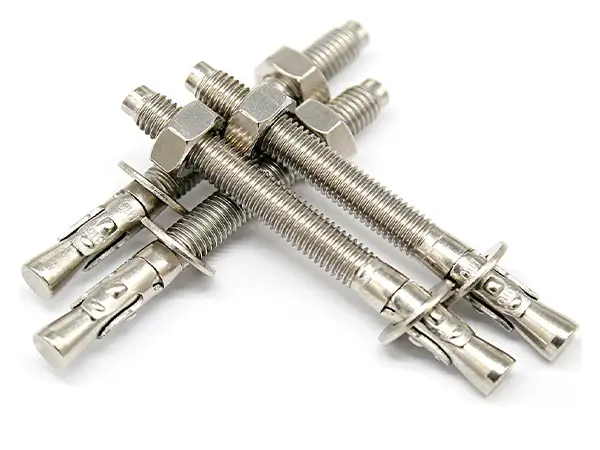

Wedge Anchor Structure & Fastening Principle

The wedge-shaped anchor bolt consists of a screw and a wedge-shaped sleeve (or expansion piece). During installation, the wedge-shaped structure is used to expand the sleeve by knocking or tightening the nut, and is tightly engaged with hard substrates such as concrete and masonry to form a mechanical lock. It has strong pull-out and shear resistance, making it difficult to loosen after tightening.

Calculation Formula of Stainless Steel Anchor Bolt

Total weight = bolt weight + nut weight + washer weight + other component weights.



Using 304 stainless steel, a hexagonal nut, and a standard flat washer as an example:

• Bolt weight = π × (nominal diameter/2)² × total bolt length × 7.93 g/cm³.



• Nut weight = (external volume – internal volume) × ρ = [(2.6 × Flat width of nut² × Thickness) / 1000 – π × (nominal diameter/2)² × Thickness / 1000] × 7.93 g/cm³.



• Standard flat washer weight = [π × (washer outer diameter (mm)² – washer inner diameter (mm)²) / 4 × washer thickness] × 7.93 g/cm³ / 1000.

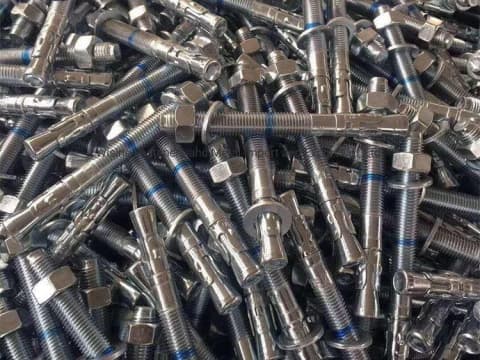

Stainless Steel Wedge Anchor Bolt Features

Easy installation

No embedded components are required; simply pre-drill holes and tighten the nuts to achieve expansion and fixation. This tool-free solution is more efficient than chemical anchor bolts. It’s ideal for fast on-site installation. It’s suitable for high-strength substrates such as concrete, solid brick, and stone, but not for soft or hollow walls.

Various specifications

Available in various diameters and lengths, it offers strong versatility and is widely used in building structure reinforcement, machinery installation, bridge engineering, marine facilities, chemical equipment fixation, and other applications requiring high corrosion resistance.

Durability and safety

Stainless steel is rust-resistant, long-term stable and reliable, and reduces maintenance costs. After installation, there is no chemical adhesive, and the fastening effect will not be affected by substrate aging or temperature changes, providing high safety.

Application Areas

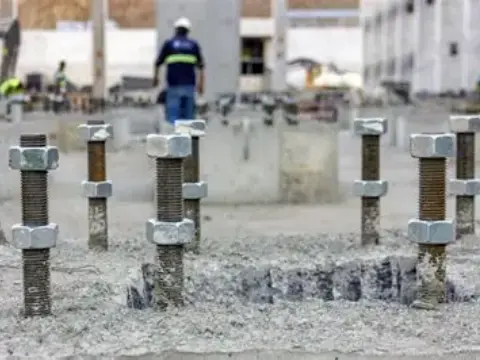

Construction

Used for fixing metal frames of curtain walls of high-rise buildings, reinforcing and renovating infrastructure such as bridges and tunnels, and repairing historical buildings, replacing traditional expansion bolts.

Heavy equipment securing

Fixing of machine tools and compressors on factory production lines; installation of bases for large equipment such as port cranes and wind turbines; anchoring of mining machinery in rock substrates.

Traffic and public safety

Fixing the concrete foundation of highway guardrail columns; anchoring equipment supports beside railway tracks; installing pipeline supports in urban subway tunnels.

Disaster Prevention and Geotechnical Engineering

Slope stabilization of highway cuts, mining faces, etc., reinforcement of surrounding rocks of tunnels and mines; reinforcement of building foundations in earthquake-prone areas.

Temporary structures

It can be used for rapid anchoring of scaffolding, replacing carbon steel anchor bolts in high temperature (such as steel mills) or low temperature (such as Arctic research stations) environments to prevent embrittlement or creep problems.

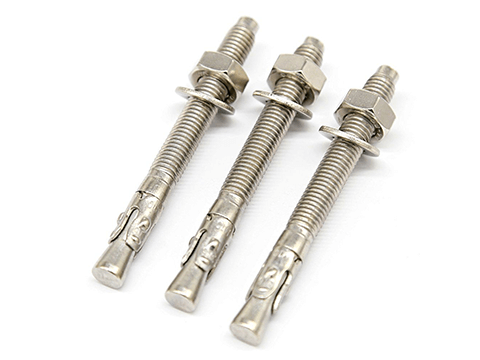

Stainless steel anchor bolts of different diameters

• M6: With a 6mm diameter, this compact size makes it suitable for securing lightweight components, such as small appliances and interior decorations.
• M8: With an 8mm diameter, it offers greater load-bearing capacity than the M6. It is commonly used for securing small pipe supports and lightweight outdoor signage.
• M10: With a 10mm diameter, it offers medium strength and is suitable for mounting door and window frames and anchoring general equipment. It is used in industrial plants and commercial buildings.
• M12: With a 12mm diameter, this is a common size for securing heavier equipment. It can withstand high tensile and shear forces in factory workshops and substations.
• M16: With a 16mm diameter, it is used in large buildings, bridges, and other important projects. It maintains performance under heavy loads and in harsh environments.

Types of Stainless Steel Anchor Bolts

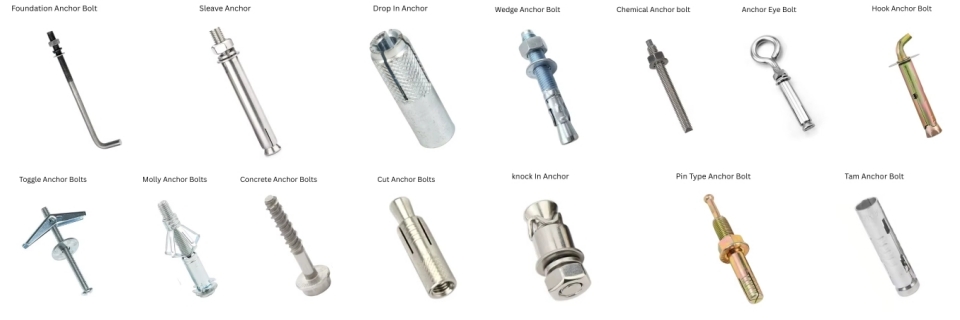

Anchor Bolt By Feature

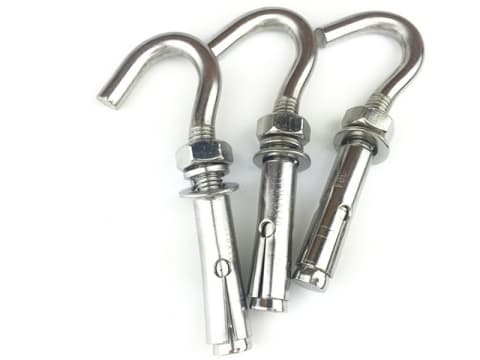

The anchor bolts provided by Wanzhi Steel are further subdivided into various types according to different functions. Specifically, they include J-shaped and L-shaped anchor bolts, pin-type anchor bolts, knock-in anchor bolts, drop-in anchor, sleeve anchor, expansion anchor bolts, wedge anchor, eye anchor, concrete screws, folding molly bolts, toggle bolts, self-cutting anchors and chemical studs, etc.



If you don’t know which product can meet your needs, please feel free to Contact Us.

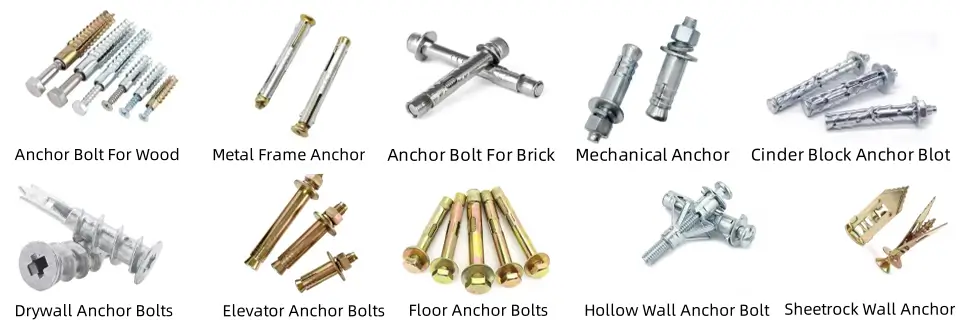

Anchor Bolt By Application

We offer a wide range of anchor bolt types designed for diverse applications, including anchor bolts specifically designed for wood, metal frame anchors for windows, mechanical anchors, and SS anchor bolts specifically designed for various wall materials, including brick, cinder block, drywall, cavity wall, and gypsum board. We also offer specialized stainless steel anchor bolt for elevators and flooring installations.



Stainless Steel Anchor Bolts Manufacturer- Wanzhi Steel

• Advanced Equipment: Equipped with imported cold heading machines and fully automatic passivation lines, achieving an accuracy of ±0.015mm and a daily production capacity of 50,000 pieces, we deliver stable and efficient quality.
• Flexible Customization: We support full-size customization from M6 to M24, offering special coatings, laser marking, and other services to meet individual needs.

• Price Competitiveness: High-quality, qualified stainless steel wire rod and large-scale production ensure low costs. Wholesale discounts offer a price-performance ratio far superior to competitors.
• Fast Delivery: Regular products are in stock, and customized products can be delivered in 8-18 days. Global logistics ensures on-time arrival.



Get samples or a bulk quote! Chat with Us Online,

or send an email to: info03@wanzhisteel.com





Wanzhi Steel is an ISO 9001-certified steel factory located in Hebei, China. It has been specializing in the production of anchor eye bolts, stainless steel foundation bolts, stainless steel toggle bolts, Duplex nails, galvanized anchor bolts, Common nails, stainless steel threaded rods, Galvanized bolts, and chemical anchor bolts for 14 years, with a monthly output of 1,800 tons. With high-quality products and good services, its products have been exported to more than 120 countries around the world.
