A193 mesh usually refers to a mesh structure or mesh product that meets the A193 standard. Especially in the field of building materials, it often refers to a welded wire mesh used for concrete reinforcement. Wanzhi Steel is a manufacturer specializing in the production of A193 steel mesh. We accept customized sizes. In addition to A193, we also have a393 mesh, a252 mesh, a142 mesh, and D49 mesh to choose from. If you want to know more, please feel free to Contact Us. ( Direct Chat/ Direct Mail)

A193 mesh specification

Item	A193 Mesh
Place of Origin	Hebei, China
Standard	AISI, ASTM, DIN, JIS, GB, EN
Delivery Time	15-21 days
Material	Q195/Q235/Q355 Low-Carbon Steel, Galvanized Steel Wire, Stainless steel wire
Grade	HRB335/400/500 Etc
Cross-sectional area	193mm²/m²
Wire diameter or thickness	7mm
Panel width	0.5m-3.0m
Length	1-50m or customized
Mesh spacing	Fixed at 200mm × 200mm
Usage	Construction
Payment term	TT 30% Advance + 70% Balance
Price Item	FOB, CIF, EXW, CFR, etc
Packing	Standard export packaging
Certification	ISO 9001, SGS, ABS, BV
MOQ	5 Tons
Transportation	By sea, by land

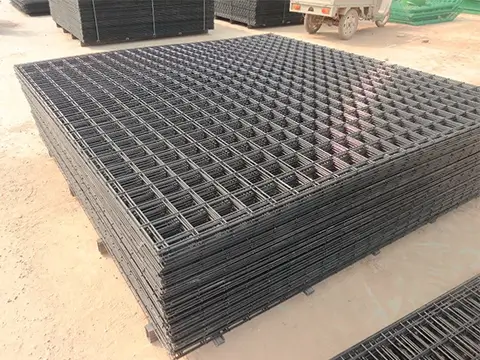

What is A193 Reinforcement Mesh?

A193 Mesh is a steel welded mesh that complies with British Standard BS 4483 and is specially used for reinforcement of concrete structures (such as floors, foundations, roads, etc.). It provides bare steel, galvanized, epoxy coating, and other material options to adapt to different environments; the strength is suitable for medium load scenarios.

Character interpretation

1) “A”: represents low carbon steel, Grade 250, tensile strength ≥ 250MPa.
2) “193”: represents the cross-sectional area of ​​steel bars per square meter is 193 mm².



Standard parameters

1) Rebar diameter: 7 mm.
2) Mesh spacing: 200 mm × 200 mm (square holes).
3) Common mesh sheet size: 4.8 m × 2.4 m (customizable).



A193 standard

A193 stands for “ASTM A193/A193M”, which is the standard for alloy steel and stainless steel bolting materials used in high temperature environments developed by the American Society for Testing and Materials (ASTM). A193 mesh meets the requirements of the A193 standard, which specifies the chemical composition, mechanical properties and related test methods of the material. It does not refer to a specific material grade, but covers a wide range of alloy steel and stainless steel materials. In the ASTM A193 standard, you can also find bolting materials suitable for high temperature environments, such as A193 B16.

Core features

1. Mechanical properties: Low carbon steel (Grade 250), tensile strength ≥ 250MPa, or stainless steel, etc., taking into account both strength and ductility.
2. Unified specifications: Steel bar diameter 7mm, mesh spacing 200mm×200mm, cross-sectional area 193mm²/m², standardized design facilitates construction calculations.
3. Anti-corrosion options: Supports bare steel, hot-dip galvanizing, epoxy coating and other treatments, and can be used in humid/corrosive environments.
4. Convenient construction: Prefabricated welded mesh (common size 4.8m×2.4m), reducing on-site binding time, saving wire usage, and improving efficiency.
5. Economical: More material-saving than A252, higher bearing capacity than A142, and balanced cost-effectiveness.
6. Flexible application: The mesh size or local reinforcement (such as edge reinforcement) can be customized to match special structural requirements. Suitable for medium load scenarios.

What is A193 Mesh Used for?

1. Oil and gas industry: as a gasket support net for high-pressure pipeline flange connection, used for support nets or protective nets inside reactors and heat exchangers in refineries and natural gas processing plants.
2. Chemical and petrochemical: steel reinforcement nets inside reaction tanks and distillation towers, adapted to high temperature, high pressure and corrosive environments. Support nets under the anti-corrosion lining of chemical equipment. Extend equipment life.
3. Electricity and energy: high-temperature steam pipeline systems in thermal power plants and nuclear power plants, as pipeline supports or protective nets, refractory support nets inside boilers, fixed refractory bricks or castables.

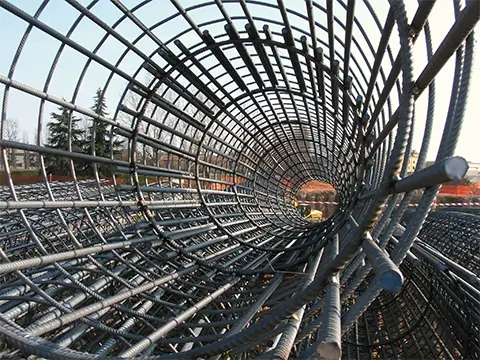

4. Buildings and infrastructure: concrete reinforcement of high-temperature workshops, smelters and other buildings, floors of steelmaking plants, foundations of high-temperature equipment, bridge and tunnel pavement, and tunnel linings.
5. Machinery and industrial equipment: anti-slip steel mesh for aerial work platforms and maintenance walkways in chemical and metallurgical plants, with both high strength and corrosion resistance, protective covers for heavy machinery, and filters for screening equipment.
6. Aerospace and high-end manufacturing: internal non-load-bearing support mesh for aircraft engines and high-temperature components of spacecraft
7. Marine engineering and ships: steel mesh for offshore oil platforms and ship decks, especially those near the engine compartment that require high temperature resistance.

What is fabric reinforcement?

Fabric reinforcement is a layer of fabric sheets made of welded fabric wire and hosted in concrete slabs or walls. Fabric sheets are typically created in a pattern which results in welded wire sheets overlapping each other to provide continuity of load transfer from one sheet to the next.

What is the difference between A193 and A252 mesh?

A252 mesh used in concrete slabs includes 8mm high tensile steel bars, and each sheet will weigh just over 45Kgs. Whereas A193 is constructed using 7mm rebar and weighs 32Kgs per sheet. Both come in standard mesh sheet sizes of 2.4m x 4.8m (or we can cut them to size if required).

What is A193 BRC Mesh?

Combined with the above analysis, A193 BRC Mesh can be understood as a BRC steel mesh or welded steel mesh that meets the A193 standard. This fabric is made of carbon steel, alloy steel, or stainless steel that meets the A193 standard, and has the characteristics of high strength, high corrosion resistance, and easy construction. It is usually used for concrete structure reinforcement in construction, roads, bridges, and other projects to improve the integrity and bearing capacity of the project.

What does A193 BRC Mesh mean?

1. Meaning of A193

A mesh or grid product that meets the A193 standard, especially in the field of building materials, often refers to a welded wire mesh used for concrete reinforcement.

2. What is BRC?

You may wonder: What is the full name of BRC mesh? In fact, in the field of construction, BRC stands for “British Reinforced Concrete,” which refers to a type of steel reinforcement mesh commonly used in construction projects. It is welded from cold-drawn steel wire or cold-rolled ribs into a steel reinforcement mesh with a rectangular or square shape. It can provide structural strength to concrete elements such as slabs, walls, and columns.

3. The meaning of Mesh

In the field of architecture and engineering, Mesh usually refers to a mesh material made of filaments or thin strips, such as steel mesh, metal mesh, etc. This mesh structure has the characteristics of high strength, high stability and easy construction, and is often used to reinforce concrete structures and make protective nets.

A193 mesh price

The price of A193 Mesh will be affected by many factors, such as material cost, production process, market demand, etc., so it is difficult to give a specific price. However, I can give some approximate price ranges based on some market information:

It is usually quoted per square meter or per roll. The price ranges from a few dollars to tens of dollars, depending on the various factors mentioned above.



Factors that affect price

1. Material cost: There are many types of base materials, such as low carbon steel, galvanized steel, aluminum zinc steel, stainless steel, high carbon steel, cold rolled steel, zinc aluminum alloy steel. The cost of these materials will directly affect the price.

2 .Production process: For example, the welding process, galvanizing process, etc. will have an impact on the price.

3 .Market demand: If the market demand decreases, the price may decrease, otherwise it will increase.

4. Specifications and quality: Mesh size, wire diameter, and quality grade will also affect the price. The larger the specification, the higher the price.

In summary, base material and specifications are the main factors determining the price.

Buy A193 mesh from Wanzhi Steel manufacturer

Why choose Wanzhi Steel?

✔ High-quality materials: strictly select carbon steel or stainless steel raw materials that meet the standards, and provide galvanizing and coating processes to meet your corrosion resistance requirements.
✔ Precision production: automated welding ensures that the mesh spacing is always consistent, which is 200mm×200mm.
✔ Complete products: Wanzhi Steel also has a142 reinforcing mesh, b1131 mesh, a393 steel mesh, d49 wrapping mesh.
✔ Customized solutions: provide customized size mesh, OEM/ODM service, accept non-standard processing.
✔ Fast delivery: provide highly competitive factory direct sales prices, reliable logistics services, and global shipping time 10-18Days.



If you are also looking for A193 mesh, we have a variety of sizes and materials for you to choose from, we believe that we can meet your requirements.



Get samples or a bulk quote! Chat with Us Online,

or send an email to: info03@wanzhisteel.com





Wanzhi Steel is an ISO 9001-certified steel factory located in Hebei, China. It has been specializing in the production of Galvanized Concrete Mesh, Galvanized expanded metal lath, Galvanised Welded Mesh Panel, Steel Reinforcement Mesh, Wire Mesh For Concrete Slab, Construction Binding Wire for 14 years, with a monthly output of 1,800 tons. With high-quality products and good services, its products have been exported to more than 120 countries around the world.
