Concrete Welded Wire Mesh
Concrete welded wire mesh is a mesh-like steel reinforcement product made by welding longitudinal and transverse cold-drawn steel wires at their intersections. It replaces traditional manual rebar tying. It features high strength, good integrity, and convenient construction, and is widely used in concrete structures. It effectively enhances crack resistance, distributes loads, and prevents cracking, making it a commonly used reinforcing material in floor slabs, floors, and wall projects. Wanzhi Steel can customize the rebar diameter and mesh size to suit your specific needs. We have A193 Mesh, A393 Mesh, and A142 Mesh in stock, and can cut to size for special projects. Please send us your requirements.
Welded concrete mesh
Galvanized Concrete Mesh
Specification
| Item | Concrete welded wire |
| Place of Origin | Hebei, China |
| Standard | AISI, ASTM, BS, DIN, JIS, GB, EN |
| Aperture | 100×100, 150×150, 200×200 |
| Mesh size | 2.4 * 6m(Customizable) |
| Width | 1 – 2.4m(Customizable) |
| Length | Customers’ Requirement |
| Surface Treatment | Plain, electro-galvanized, hot-dip galvanized |
| Zinc layer thickness | Electroplating: ≥20g/㎡, Hot-dip galvanizing: Z30-Z275 |
| Payment term | TT 30% Advance + 70% Balance |
| Price Item | FOB, CIF, EXW, CFR, etc |
| Packing | Standard export packaging |
| Certification | ISO 9001, SGS, ABS, BV |
| MOQ | 10 tons |
| Transportation | By sea, by land |
Features
Stable Structure
The welding process ensures high dimensional accuracy of the mesh, preventing deformation and ensuring uniform strength, resulting in even stress distribution and higher load-bearing capacity.
GI Concrete Mesh for Sale
Quality Inspection
High Construction Efficiency
Finished products can be laid directly, eliminating the need for on-site cutting and binding, significantly reducing manpower and shortening construction time, greatly improving efficiency for large-scale projects.
Economic Efficiency
Standardized factory production avoids waste from on-site steel bar cutting, extends the service life of concrete structures by 30%, and reduces later maintenance costs.
Strong Adaptability
Suitable for complex geometries such as planes, curved surfaces, and slopes, it can be used in conjunction with new technologies such as prestressing and is unaffected by rain or snow.
Weight Calculation Formula
Theoretical Weight Formula
The total weight= (Number of longitudinal wires × Weight of a single longitudinal wire) + (Number of transverse wires + Weight of a single transverse wire).
Simplified Formula
Weight per square meter = 7850 × wire diameter² × (2 / mesh spacing) (all length units are in meters).

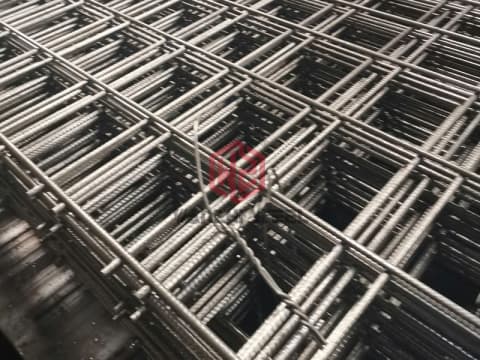

welded wire concrete reinforcement

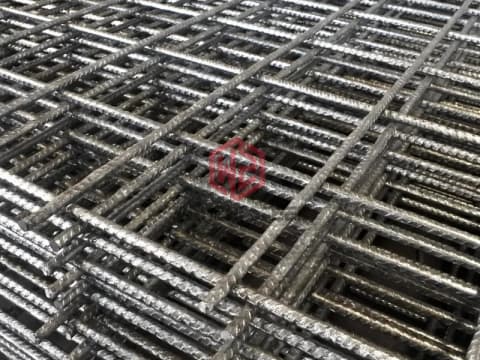

HRB500 galvanized wire mesh Panel Factory
Note: Actual values are slightly lower than theoretical values because a small amount of weight is lost during production due to soldering joints, and there are minor tolerances in wire diameter.
Application Scenarios
- Civil Buildings: It is a core reinforcement material for floor slabs, roof slabs, and walls; it is also commonly used for reinforcing basement floor slabs and roofs, and for cantilevered components such as balconies and canopies.
- Transportation Engineering: Used for reinforcement of the base and surface layers of highways and municipal roads; also for bridge deck paving, bridge pier crash barriers, and tunnel lining reinforcement.
- Hydraulic and Hydropower Engineering: Used for dam slope protection, canal lining, and aqueduct construction; also for reinforcement of floor slabs and walls in hydropower plant buildings, adapting to the humid and heavy-load environments of hydraulic engineering projects.
- Precast Components and Special Engineering: It is a standard material for precast concrete wall panels, composite slabs, and pipe piles; used in combination with shotcrete in foundation pit support and slope reinforcement projects; also used for ground reinforcement in airport runways and large parking lots.
Bridge steel structure
Road reinforcement paving
Wall Panel
Types of welded wire mesh (BS44B3)
- A393: Heavy-duty specification, 10mm wire diameter, 6.16kg/m² weight, suitable for large concrete structures.
- A252: Medium specification, 8mm wire diameter, 3.95kg/m² weight, commonly used for steel reinforcement frameworks in building floor slabs and walls.
- A193: Medium-light specification, 7mm wire diameter, 3.02kg/m² weight, suitable for reinforcing small concrete components.
- A142: Light specification, 6mm wire diameter, 2.22kg/m² weight, mostly used for lightweight walls and small precast components.
- A98: Ultra-light specification, 5mm wire diameter, 1.54kg/m² weight, suitable for small protective netting or thin-walled components.
- D49: Special lightweight netting, with a finer wire diameter and lower weight, mainly used for auxiliary reinforcement or temporary protection of small concrete components.
Size And Weight Comparison Table
| Type | Wire diameter | Mesh spacing | Length × width | Weight per square meter |
| A393 | 10mm | 200×200mm | 6m×2.4m | 6.16kg/㎡ |
| A252 | 8mm | 200×200mm | 6m×2.4m | 3.95kg/㎡ |
| A142 | 6mm | 200×200mm | 6m×2.4m | 2.22kg/㎡ |
| D49 | 2.5mm | 200×200mm | 6m×1.2m | 0.77kg/㎡ |

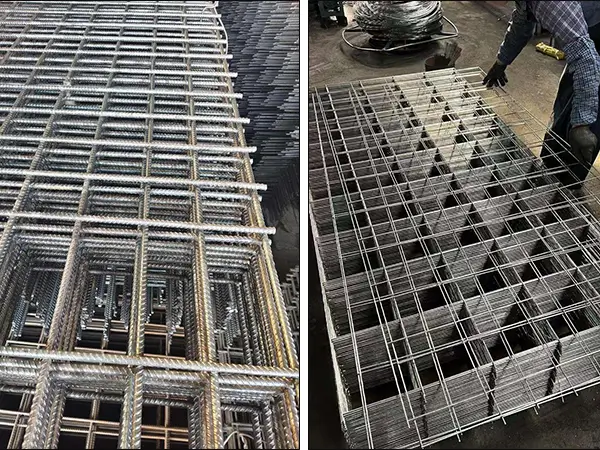

welded wire concrete reinforcement
6 x 6 wire mesh for concrete
15X15 Concrete Welded Wire Mesh
Price List of Reinforcing Wire Mesh
- A393: Reference price $2.5-3.5/m², $650-700/ton.
- A252: Reference price $1.7-2.4/m², $580-630/ton.
- A193: Reference price $1.4-2.0/m², $530-580/ton.
- A142: Reference price $1.1-1.6/m², $480-530/ton.
- A98: Reference price $0.8-1.2/m², $430-480/ton.
- D49: Reference price $0.4-0.8/m², $380-430/ton.

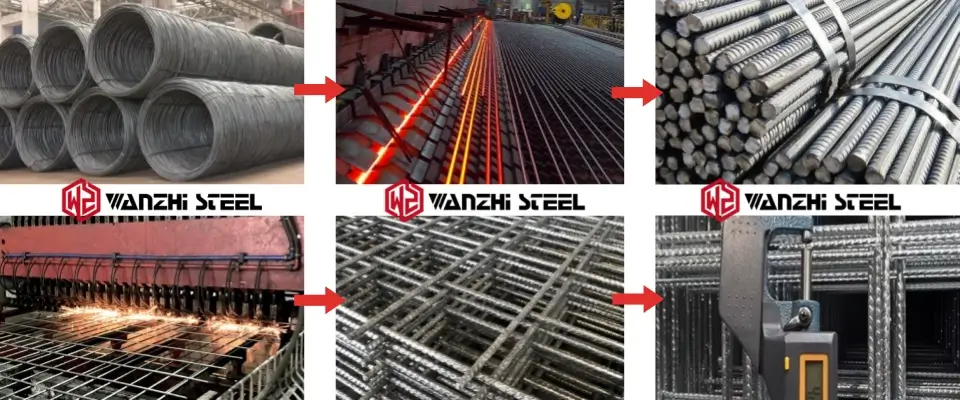

How Is Concrete Welded Wire Mesh Produced?
Concrete Welded Wire Production Process
Low carbon steel wire rod → Rebar straightening and cutting → Rebar rust removal → Wire diameter calibration and sorting → Automated wire placement and positioning → Resistance spot welding → Size cutting and trimming → Surface anti-corrosion treatment (hot-dip galvanizing / electro-galvanizing, optional) → Quality inspection (wire diameter, mesh size, weld strength) → Sorting, packaging and labeling.
Wanzhi Steel – Welded Wire Mesh Manufacturer
Extensive export experience
- Reliable Quality: We utilize high-quality wire rod from our own steel mill, ensuring stable material composition and performance, which guarantees high strength and consistency from the source.
- Intelligent Production: Imported fully automated welding wire mesh production lines combined with machine vision inspection ensure strong welds and precise dimensions.
- Customization Response: Supporting non-standard sizes, irregular mesh shapes, and special coatings. Complete production scheduling within 72 hours.
- Price Advantage: Leveraging large-scale production and direct-from-the-mill wholesale prices, we provide a stable and cost-effective supply for large-scale projects.
Get a bulk quote! Chat with Us Online,
or send an email to: info03@wanzhisteel.com
Wanzhi Steel is an ISO 9001-certified steel factory located in Hebei, China. It has been specializing in the production of Galvanized Steel Mesh Panels, welded mesh sheet, Galvanized Concrete Mesh, deformed rebar, Construction Binding Wire, ribbed steel bars, and Wire Mesh For Concrete Slab for 14 years, with a monthly output of 1,800 tons. With high-quality products and good services, its products have been exported to more than 120 countries around the world.
