316 Stainless Steel Wire
Material: 316 stainless steel wire rod
Grade: 316 / 316L
FeatureDiameter: 0.015mm – 10mm
Shape: Round / Oval
Delivery Time: 15-21 days
316 Stainless Steel Wire
316 stainless steel wire is a fine wire produced by drawing stainless steel rod; as an austenitic stainless steel, it offers superior corrosion resistance compared to 304 grade and is suitable for harsh environments. Due to its stable performance in marine settings, it is also known as “marine-grade” stainless steel wire.
As a professional manufacturer and supplier, Wanzhi Steel offers 316 stainless steel wire in a variety of diameters and packaging options, as well as finished products such as crimped wire mesh, cable, rope mesh, chicken wire mesh, and chain-link mesh.
Stainless Steel Wire for Building Materials
316 Stainless Spool Wire for Tying
Specifications
| Item | 316 Stainless Steel Wire |
| Place of Origin | Hebei, China |
| Standard | AISI, ASTM, BS, DIN, JIS, GB, EN |
| Supply Form | Coil / Spool / Straight |
| Sample | Free Available |
| Application | Stainless steel welded mesh, 316 stainless steel wire rope, stainless steel fencing, binding wire, packing wire |
| Packing | Standard export packaging |
| Certification | ISO 9001, SGS, ABS, BV |
| MOQ | 5 tons |
Advantages of SUS 316 Stainless Steel Wire
- Excellent Corrosion Resistance – With added molybdenum element, it delivers outstanding anti-rust performance and can serve for a long time in humid and marine environments.
- Premium Sanitation & Appearance – The wire has a smooth, burr-free surface with elegant metallic luster. It meets food-grade requirements and is widely used in medical and biological research fields.
- High Temperature Resistance – Its intermittent operating temperature can reach 1600°C. 316L performs better in resisting carbide precipitation, while 316L is ideal for high-temperature structural and pressure-bearing applications above 500°C.
- Good Workability – We produce products ranging from thick wire to ultra-fine wire and spooled wire. The material features excellent toughness, ductility, and weldability, and can be bent and twisted freely.
316l stainless cold drawn steel wire
galfan wire rope
Main Applications
Marine & Chemical Industry
Seawater treatment, wire mesh for offshore platforms, filtration ditches for chemical wastewater, and facilities in corrosive environments.
Food & Medical Industry
Filter screens for fruits and vegetables, surgical instrument wires, fish hooks, and accessories for food and pharmaceutical production equipment.
Construction & Welding Industry
Manufacturing of 316 stainless steel wire ropes and mesh, cables for outdoor stair railings, 316 argon arc welding wire, and welding filler wire.
Other Fields
Components for energy extraction and transportation, track wires for conveyor belts, instrument pointers, gears, safety ropes, and locking parts for amusement facilities.
crimping vinyl coated wire rope

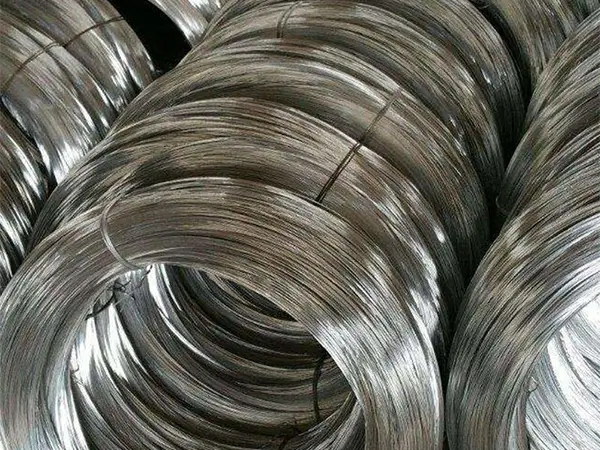

Binding Wire in Construction
Classification of 316 Stainless Steel Wire
- 316 Soft Wire: Tensile strength 620 – 830 MPa. Manufactured via an annealing process with great toughness. Suitable for welded mesh, sieves, protective mesh, and chain link fence.
- 316 Medium Hard Wire: Tensile strength 1070 – 1280 MPa. Balanced hardness and toughness, ideal for springs and mechanical parts.
- 316 Hard Wire: Tensile strength 1480 – 1690 MPa. Cold-drawn wire with high tensile strength and good deformation resistance.
Weight Calculation Formula
Theoretical weight per meter of round wire (kg/km) = Diameter² (mm) × 6.23
Difference between 316 and 316L Stainless Steel Wire
| Comparison Item | 316 | 316L |
| Carbon Content | ≤0.08% | ≤0.03% |
| Strength | Slightly higher | Slightly lower |
| Corrosion Resistance | Good | Better (especially after welding) |
| Welding Performance | Post-weld heat treatment is required | No post-weld heat treatment required |
| Cost | Lower | Slightly higher |
| Application | General industrial use | Welded structures and severely corrosive environments |
Stainless Steel Annealed Wire Manufacturer
Stainless steel spool wire factory
Chemical & Physical Properties
Chemical Composition
| Element | Content (%) |
| C (Carbon) | ≤0.08 |
| Si (Silicon) | ≤1.00 |
| Mn (Manganese) | ≤2.00 |
| P (Phosphorus) | ≤0.035 |
| S (Sulfur) | ≤0.03 |
| Cr (Chromium) | 16.0 – 18.5 |
| Ni (Nickel) | 10.0 – 14.0 |
| Mo (Molybdenum) | 2.0 – 3.0 |
Physical Properties
| Item | Value |
| Density | 7.96 – 8.03 g/cm³ |
| Melting Point | 1370 – 1400 °C |
| Modulus of Elasticity | 190 – 210 GPa |
| Yield Strength | ≥205 MPa |
| Brinell Hardness | 160 – 190 HB |
Wholesale 316 Stainless Wire for Kitchen and Scrubber

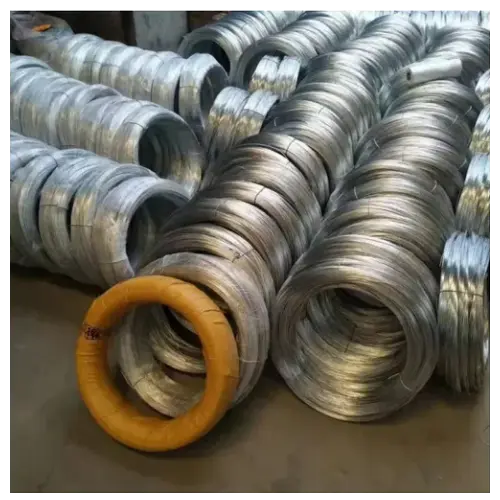

Soft Annealed Stainless Steel Wire
Mechanical Properties (Tensile Strength by Diameter)
| Diameter Range (mm) | Tensile Strength (MPa) |
| 0.05 – 0.5 | 610 – 860 |
| 0.5 – 1.6 | 570 – 820 |
| 1.6 – 5.0 | 520 – 770 |
| 5.0 – 10 | 500 – 750 |
Hardness Reference
| Condition | Tensile Strength (MPa) | Elongation |
| Soft (Annealed) | Approx. 600 | ≥ 40% |
| Medium Hard | Approx. 850 | — |
| Full Hard | Approx. 1350 | — |
| Spring Wire | Approx. 1700 | — |

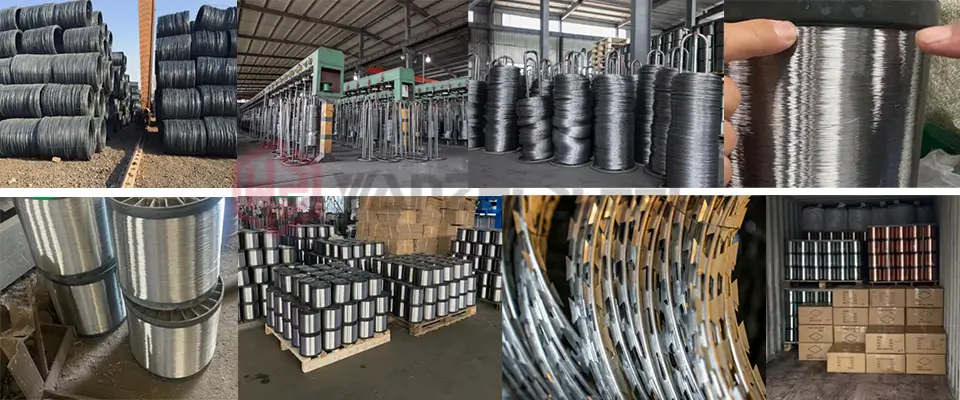

Stainless steel wire production and razor barbed wire
Our Product Forms
- Spooled Wire: Wound on plastic or wooden spools, mainly for fine diameters. Neat arrangement for easy use.
- Coiled Wire: The mainstream packaging type. Large loose coils without spools, widely adopted for general delivery.
- Close-wound Coil Wire: Used as binding wire and packing wire. With tidy and non-cross winding, it fits automatic feeding equipment perfectly.
- Straight Cut Wire: Cut into fixed lengths instead of coils. Custom lengths available, commonly used for welding electrodes.
Our stainless steel wire products
- Stainless Steel Binding Wire: Wire specifically designed for bundling and baling; it offers greater durability than galvanized or annealed binding wire.
- Stainless Steel Wire Rope: Our best-selling constructions include 7×7, 7×19, and 1×7; we also supply wire rope mesh products.
- Stainless Steel Chicken Wire: A woven wire mesh with hexagonal openings that offers good flexibility and is supplied in rolls; we also offer welded square mesh.
Other popular products include stainless steel chain link fencing and stainless steel mesh sheets.
3mm stainless steel wire
High Tensile Strength Wire Rope
Why Choose Us
- Direct from the Manufacturer—Produced and sold directly by the factory with no middlemen; features mature wire-drawing production lines and rigorous testing of finished products, including mechanical property and salt spray tests.
- Comprehensive Specifications—Available with bright or annealed finishes, in soft or hard tempers, and in round or elliptical profiles.
- Proven Process—Utilizes precision wire drawing and high-temperature solution annealing; offers tight dimensional tolerances, making the wire suitable for automated welding and spring manufacturing.
- Customization Services—Full processing services available, with packaging options including spools, bundles, and coils.
Get samples or a bulk quote! Chat with Us Online,
Or send an email to: [email protected].
Wanzhi Steel is an ISO 9001-certified steel wire manufacturer based in Hebei, China. We specialize in producing stainless steel wire products of grades 304/304L/316/316L/310S/410, including stainless steel binding wire, stainless steel wire ropes of various structures, and stainless chain link mesh. Backed by rigorous quality control and customer-centric services, our products have been exported to over 120 countries worldwide.
