Straight Cut Wire

Straight cut wire is a type of tie wire cut from iron wire to a certain size. Specifically, the wire may be galvanized wire, annealed wire, or PVC Coated Wire. In addition, Wanzhi Steel, as a professional steel manufacturer, can cut this product into various lengths according to customer requirements. Straight cut wire is commonly used for construction and agricultural purposes, but there are many other possibilities. If you are interested in straight cut wire, feel free to contact us for more details!

Straight Cut Wire

Wholesale Straight Cut Wire

Specifications

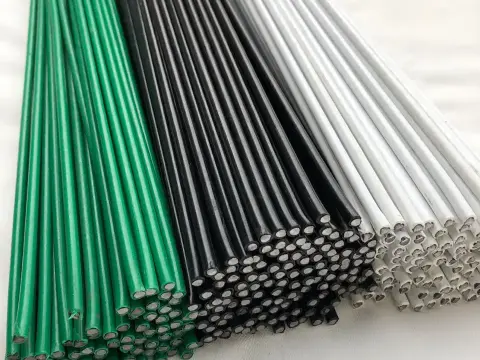

PVC coated straight cut wire

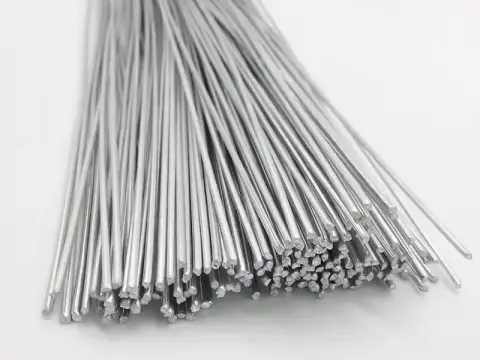

Hot dip galvanized straight cut wire

Features

• Regular shape: The cuts at both ends are smooth (some processes may have slight burrs), which is convenient for counting, bundling and automated assembly.
• High dimensional accuracy: The length is uniform and the error is small, which is suitable for scenes with strict requirements on size. The diameter specifications and surface treatment methods are diverse and can be customized according to needs.
• Strong rigidity: Made of low-carbon steel or medium-carbon steel, the tensile strength is usually 300-800MPa, and the hardness (HB) is about 80-200. It has a certain toughness and rigidity and is not easy to break.
• Surface state: When not coated, the surface may have rolling scale and is easy to rust. The corrosion resistance and aesthetics can be improved by galvanizing (hot-dip galvanizing/electrogalvanizing), painting, copper plating, and plastic coating.
• Easy to produce: The wire rod is directly cut to a fixed length by a cutting machine, without complex processing, low cost and high production efficiency

High Quality Straight Steel Wire

Galvanized Cut Wire for Sale

Applications

• Construction and building materials: used for concrete reinforcement, welding or weaving steel wire mesh can enhance the crack resistance of concrete. Straight-cut high-carbon steel wire (SWRH82B) can be used for prestressed concrete beams and sleepers.
• Industrial manufacturing: It is the raw material for bolts, screws, rivets and hardware (subsequent cold heading or turning), used for spring washers, small parts of retaining rings, mechanical guide columns, and bearing needle rollers.
• Automobile and transportation: clutch springs, brake wire cores, seat frame connectors, airbag trigger wires. Steel wire for railway fastener systems.
• Electronics and electrical appliances: connecting pins, terminal pins, such as PCB board test probes, battery pole ear connection wires; washing machine counterweight fixing wire, oven heating element support frame.

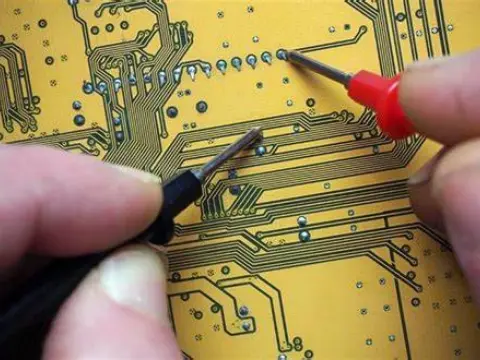

PCB board test probe

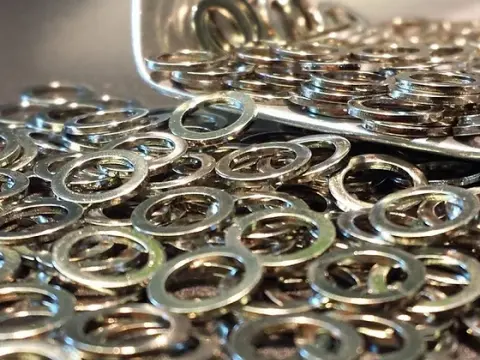

Spring washers

Fastening Fence

• Energy and electricity: cable armor layer, high-strength steel wire for overhead ground wire, volt bracket fixing wire, wind turbine fasteners.
• Home and consumer goods: sofa spring frame, metal furniture connectors, hooks, clothes hangers, fence nails and other daily hardware.
• Medical and special uses: surgical suture needles, dental orthopedic wires (stainless steel or titanium alloy straight cut wires are required).
• Military and aerospace: special alloy straight cut wires are used for spacecraft fasteners and ammunition components.

Recommended materials for different fields

• Concrete reinforcement: low carbon steel (Q195) straight cut wire, surface galvanized/untreated.
• Fasteners: medium carbon steel (SWRCH35K) straight cut wire, phosphating/oiling surface treatment.
• Electronic components: stainless steel (304/316) straight cut wire, polished/nickel-plated.
• Medical equipment: 316L medical stainless steel straight cut wire, ±0.01mm accuracy, electrolytic polishing.

Construction Bundling

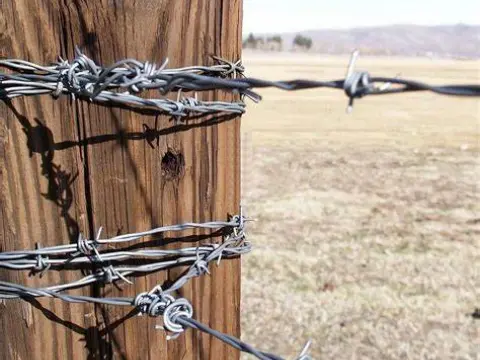

Fence U shape Nails

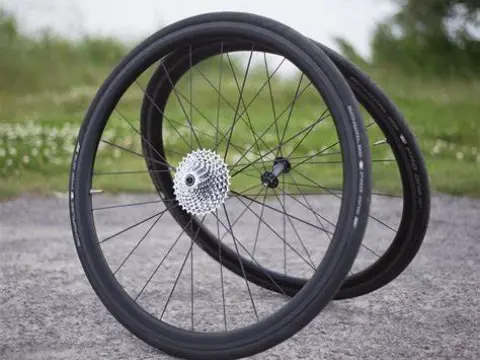

Bicycle rim axis

Export Cases

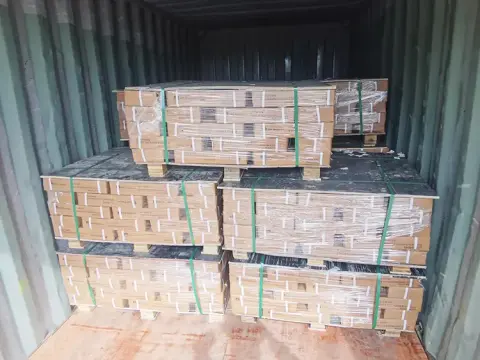

89 tons of Fiji Straight Cut Wire Project

Different Types of Straight Cut Wire

1. Galvanized Cut Wire

The galvanized cut wire is divided into hot-dip galvanized cut wire and electro-galvanized cut wire. In general, straight steel wire made of HDG wire has better corrosion resistance. This is because the zinc thickness of hot-dip galvanized wire is thicker, up to 350g/m². Therefore, you can determine the thickness of the zinc according to your needs. In addition, galvanized cut wire is mostly used in construction and handicrafts. If you are looking for corrosion-resistant and flexible wire, then GI cut wire is the best choice.

2. Black Annealed Cut Wire

The annealed cut wire is characterized by good plasticity and high ductility. What’s more, it is softer and smoother than ordinary iron wire. While customers buy black annealed cut wire commonly used for baling and bundling purposes. For instance, in the construction industry, it is often used to bundle steel bars. In addition, it can also bundle hay, tree branches, waste paper, etc. What’s more, the annealed wire produced by Wanzhi Steel is made of Q195/Q235 low-carbon steel and has a smooth surface. If you are ready to purchase annealed cut wire for your next project, welcome to contact us.

3. PVC Coated Cut Wire

PVC coated cut wire is covered with a PVC coating on the outside of the wire. This cut wire has a superior corrosion resistance than galvanized wire. At the same time, it can be used in any harsh environment and does not rust easily. In addition, PVC-coated cut wire is available in different colors and has a very beautiful appearance.

Galvanized Cut Wire

Black Annealed Cut Wire

PVC Coated Cut Wire

Production process

• Raw material preparation: Select high-quality steel wire to ensure that the chemical composition and physical properties meet the standards. Straight-cut steel wire for special purposes requires annealing and tempering.
• Straightening: Since the steel wire may have certain bends during the production process, it needs to be straightened. Use a CNC straightening machine to accurately straighten the steel wire.
• Cutting: Common cutting methods include mechanical cutting and laser cutting. Mechanical cutting has the advantages of low cost and high efficiency, and is suitable for the production of most conventional sizes of straight-cut steel wire; laser cutting has higher precision and smoother incisions. ​
• Surface treatment: In order to improve the corrosion resistance and aesthetics of straight-cut steel wire, surface treatment is often required. Commonly used methods include galvanizing, copper plating, and plastic coating.

Mild steel Cold Heading Steel Wire rod

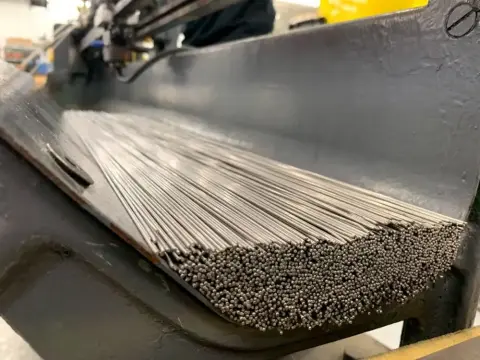

Straightened galvanized straight wire

Precise cross-section size

Quality inspection

Wanzhi Steel scratches and indentations, plating thickness inspection on straight cut wire produced. Diameter tolerance, length, straightness check. We also conduct cleanliness test, and tensile strength, torsion number, bending performance test, salt spray test, metallographic analysis, etc.. Accept third-party testing.

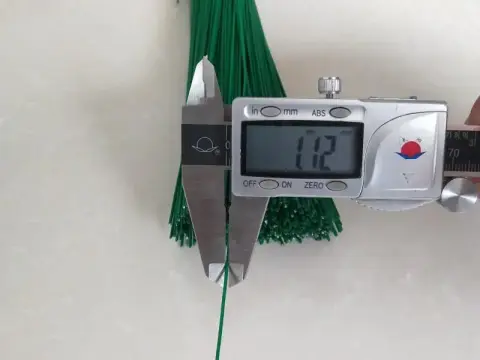

Diameter Measurement

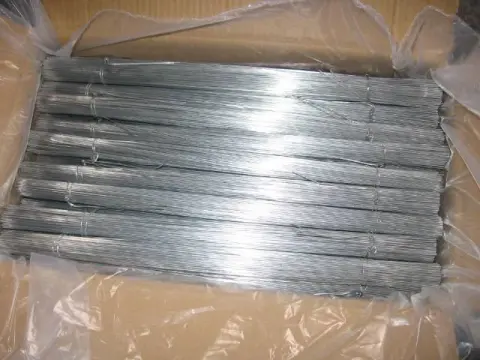

Packaging Method

Straight Cut Wire Supplier – Wanzhi Steel

Wanzhi Steel, as a leading manufacturer of straight cut wire in China, has rich export experience. Not only we produce straight steel wire with high quality raw materials and guaranteed quality, but also we can supply cutting wire of various wire diameters. In addition, the cutting length can be varied according to customer requirements. Therefore, as an experienced partner, we can help you choose the right product for the task at hand.

So if you are ready to invest in straight-cutting wire, feel free to contact us for more details!

Get samples or a bulk quote! Chat with Us Online,

or send an email to: info03@wanzhisteel.com

Wanzhi Steel is an ISO 9001-certified steel factory located in Hebei, China. It has been specializing in the production of galvanized wire, low carbon wire, spring wire, SS wire, cold drawn wire, and galfan wire for 14 years, with a monthly output of 1,800 tons. With high-quality products and good services, its products have been exported to more than 120 countries around the world.
