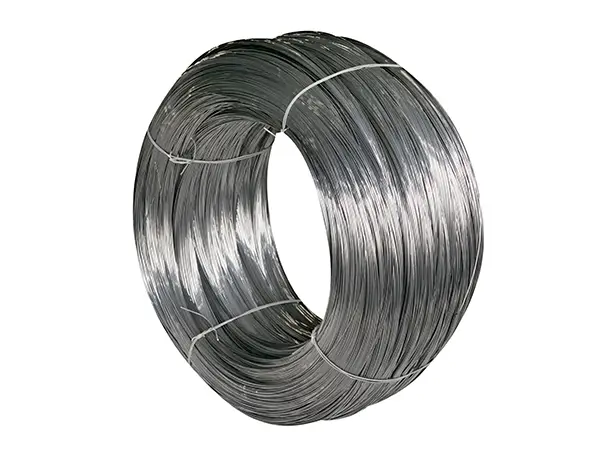

304 Stainless Steel Wire
Material: 304 Stainless steel
Diameter: 0.1-5mm
Feature: Super anti-rust
Delivery Time: 15-21 days
Transportation: By sea, by land
304 Stainless Steel Wire
304 stainless steel wire is made of 304 stainless steel (06Cr19Ni10) of ASTM A276 standard, and is a round or oval cross-section metal wire made by cold drawing, annealing and other processes. It has excellent corrosion resistance, high strength and good processing performance. It is suitable for harsh environments such as chemical, medical, and food. It is an austenitic stainless steel containing Cr, Ni, C, Mn, Si, P, and S elements. Wanzhi Steel specializes in the production of 304 stainless steel wire, with a large number of conventional diameters in stock, supports surface treatments such as bright and matte, and accepts customized solutions. If you are interested, please contact us.
Cold drawn 304 stainless steel wire

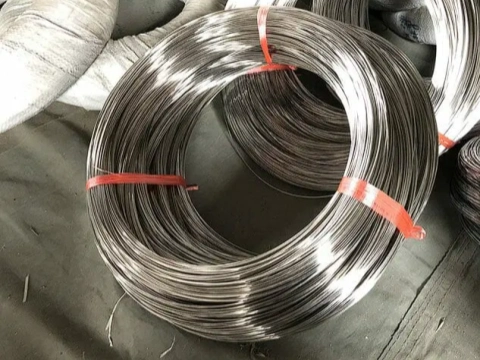

Cold Drawn Spring stainless steel wire
304 stainless steel wire Specification
| Item | 304 stainless steel wire |
| Place of Origin | Hebei, China |
| Delivery Time | 15-21 days |
| Supply Form | Coil, Spool |
| Application | Tie wire, lashing, forming wire, filters |
| C Content (%) | ≤0.08 |
| Si Content (%) | ≤1.00 |
| Color | Silver |
| Coil Weight | Can be specified |
| Standard | AISI, ASTM, DIN, JIS, GB, EN |
| Payment term | TT 30% Advance + 70% Balance |
| Sample | Free Available |
| Price Item | FOB, CIF, EXW, CFR, etc |
| Packing | Standard export packaging |
| Certification | ISO 9001, SGS, ABS, BV |
| MOQ | 5 Tons |
Key Features
- Excellent corrosion resistance: Contains more than 18% chromium and more than 8% nickel, forms a dense oxide film in air, water, weak acid, and alkali environments, and effectively resists rust.

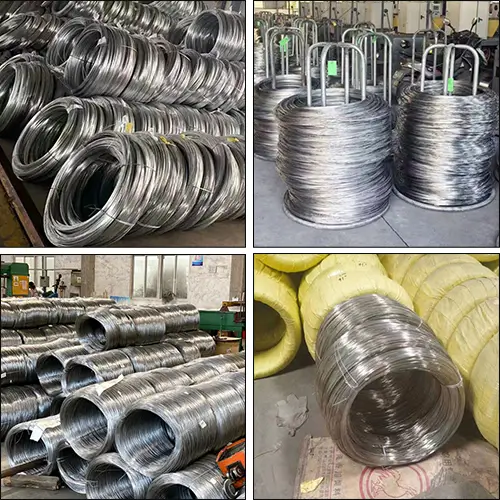

Wholesale 304 316 Stainless Wire for Kitchen and Scrubber

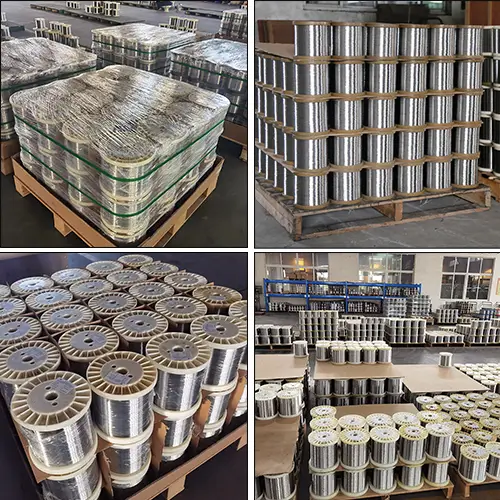

ASTM SS 201 302 304 310s 316 SS Wires Cold Drawn Supplier
- Good processability: Strong ductility, can be easily stamped, bent, weaved and other operations, not easy to break or deform after processing.
- Excellent high temperature resistance: It can still maintain stable performance in high temperature environment below 800℃, and the short-term use temperature can reach 1000℃ (long-term exposure should be avoided).
- Non-magnetic or weak magnetic: It is non-magnetic in the solution treatment state, and may produce weak magnetism after cold processing, which is suitable for scenes sensitive to magnetism.
- Beautiful and easy to maintain: No additional coating is required to keep the surface bright and beautiful, and it is simple to clean, which is suitable for fields with high requirements for appearance.
- High strength and toughness: Tensile strength ≥515 MPa, yield strength ≥205 MPa, suitable for occasions that require load-bearing or impact resistance.

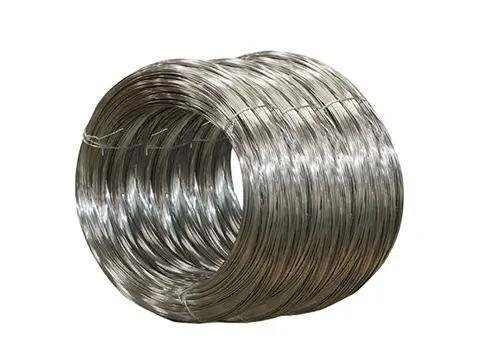

304 stainless steel wire

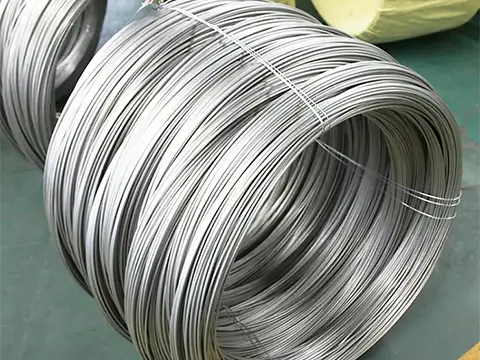

1.5mm Stainless Steel Screw Wire
Common Aliases
- 304 stainless steel wire: a common name in the industry, emphasizing the raw material form.
- A2 stainless steel wire: a code in the European standard EN ISO 3506, referring to the corrosion resistance level of 304.
- 18-8 stainless steel wire: derived from the composition ratio: 18% chromium, 8% nickel, it is a popular name for 304.
- SUS304 steel wire: a designation in the Japanese JIS standard, commonly found in the East Asian market.
Main Uses
- Stainless Steel Mesh Production: Our stainless steel fencing, crimped wire mesh, and chain-link fences are all manufactured using this material.
- Water Treatment: Used to create wastewater treatment screens and air filtration mesh, removing impurities to enhance filtration efficiency.
Barbecue grill
Stainless steel fishing gear
- Crafts and Daily Essentials: SS steel baskets, accessories, lighting fixtures, fishhooks, fishing lines, grills, hardware chains, and various other daily-use and decorative items.
- Architecture: Steel cables for staircases and stranded cables for elevators are fabricated by twisting stainless steel wires together; furthermore, stainless steel fall-protection nets in zoos, shopping malls, and kindergartens are constructed using stainless steel rope mesh.
- Food & Medical Sectors: Sieves and screens for food processing plants; surgical instruments, medical stents, sterilization baskets, and similar medical devices; as well as kitchen utensils such as skimmers, faucet filters, and flour sifters.
- Industry & Manufacturing: Applied in sectors such as chemicals, petroleum, mining, and metallurgy for the filtration of liquids, gases, and impurities; it is also used to manufacture stainless steel springs, gaskets, screws, and nuts.
Physical & Mechanical Properties
Physical Properties
| Item | Value |
|---|---|
| Density | 7.93 g/cm³ (or 8.03 g/cm³, slightly different from different sources) |
| Melting point | 1398~1454°C |
| Specific heat capacity | 0.50 kJ/(kg·K) (0°C~100°C) |
| Thermal conductivity | 16.3 W/(m·K) (100°C), 21.5 W/(m·K) (500°C) |
| Linear expansion coefficient | 17.2 × 10⁻⁶/K (0°C~100°C), 18.4 × 10⁻⁶/K (0°C~500°C) |
| Resistivity | 0.73 × 10⁻⁶ Ω·m²/m (20°C) |
| Longitudinal elastic modulus | 193 kN/mm² (20°C) |
Mechanical Properties
| Item | Value |
|---|---|
| Yield strength | ≥205 MPa |
| Elongation | ≥40% |
| Hardness | ≤201 HBW, ≤92 HRB, ≤210 HV |
| Magnetism | Non-magnetic, but may show weak magnetism after cold working |
| Tensile strength | ≥515 MPa (solution treated state), up to 1035 MPa (H1/2 state) |

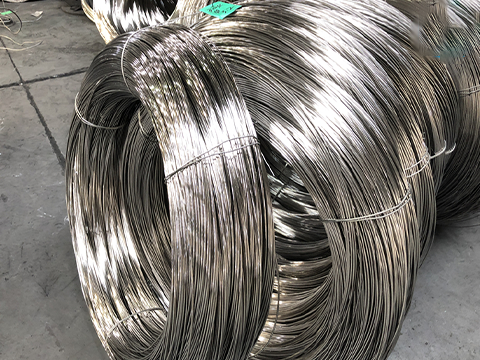

Stainless Steel Wire for Building Materials

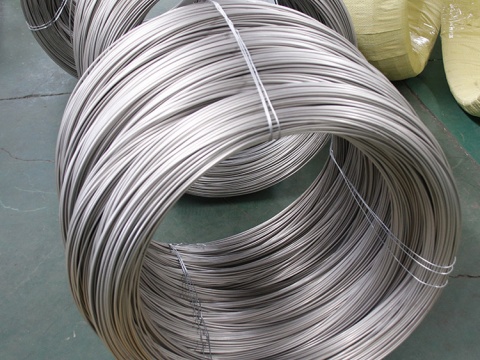

3mm stainless steel wire
Tensile Strength & Elongation Table
| Tensile Strength & Elongation Table | ||
| State | Tensile strength (MPa) | Elongation (%) |
| Soft (O) | 520-680 | ≥40 |
| Half-hard (1/2H) | 780-980 | ≥20 |
| Fully hard (H) | 1250-1500 | ≥3 |
Grade and Surface Treatment
Common grades
- 304: General-purpose, balanced corrosion resistance.
- 304L (022Cr19Ni10): Ultra-low carbon (C≤0.03%), resistant to intergranular corrosion.
- 304H (07Cr19Ni10): High carbon, excellent high temperature strength (≤800℃).
Surface Treatment Type
| Treatment methods | Surface roughness (Ra) | Applicable scenarios |
| Bright annealing (BA) | ≤0.2μm | Medical devices, electronic components |
| Pickling (AP) | 0.4-0.8μm | Industrial structural parts |
| Wire drawing (HL) | 0.3-0.6μm | Decorative building materials |
| Electrolytic polishing (EP) | ≤0.1μm | Ultra-high cleanliness requirements |

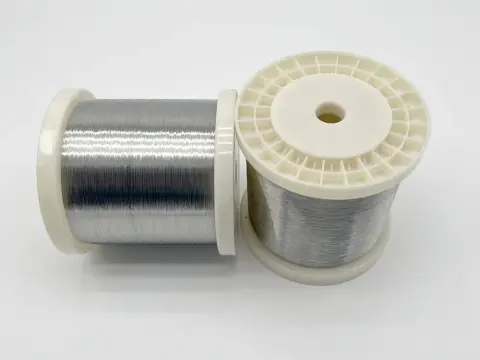

304 stainless steel spool wire

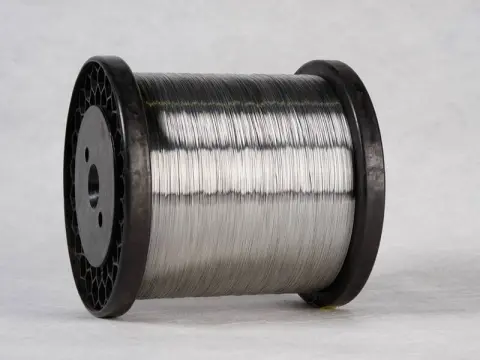

0.8mm thin 304 stainless steel wire
Common Gauges
- 28GA: The corresponding thickness is 0.38 mm.
- 26GA: The corresponding thickness is 0.46 mm.
- 24GA: The corresponding thickness is 0.61 mm.
- 22GA: The corresponding thickness is 0.76 mm.
- 20GA: The corresponding thickness is 1.00 mm.
- 18GA: The corresponding thickness is 1.25 mm.
- 16GA: The corresponding thickness is 1.60 mm.
- 14GA: The corresponding thickness is 2.00 mm.
- 12GA: The corresponding thickness is 2.70 mm.
Theoretical Weight Calculation Formula
Weight (kg) ≈ Diameter (mm)² × Length (m) × 0.00623
Coefficient source: Density of 304 stainless steel 7.93 × 0.000785 ≈ 0.00623.
Wanzhi Steel Factory Strength
- Production equipment: dozens of continuous wire drawing units and bright annealing production lines, fully automatic electrolytic polishing tanks.
- Testing capabilities: direct reading spectrometer (OES) component analysis, salt spray test chamber, large-scale electronic tensile machine, microscopic testing.
- Customized service: Supports customization of special size, hardness and surface treatment.
- Fast delivery: We have a large inventory of common specifications and fast delivery. We can meet urgent orders.
We supply stainless steel wire, stainless steel wire rope, and stainless steel mesh products (sheets and rolls). We welcome your inquiries.
304 SS wire package

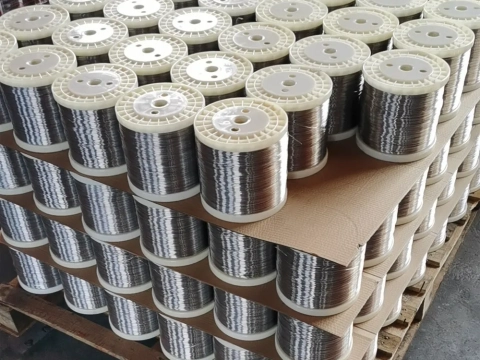

Spool Package
Get samples or a bulk quote! Chat with Us Online,
or send an email to: [email protected].
Wanzhi Steel is an ISO 9001-certified steel wire manufacturer based in Hebei, China. We focus on producing stainless steel tie wire, 304/304L and 316/316L SS steel wire, and SS steel wire mesh—products widely used in medical, food, chemical, and other industries. Our monthly production capacity reaches 1,800 tons. Backed by rigorous quality control and customer-centric services, our products have been exported to over 120 countries worldwide.
