Q195 Steel

Q195 steel is a low-carbon carbon structural steel (Carbon Structural Steel), which belongs to the grade in China’s GB/T 700 standard. This steel has good plasticity, weldability, cold bending performance, low production cost, and is widely used in construction, hardware, and light industries. Wanzhi Steel focuses on the production of high-quality Q195 hot-rolled and cold-rolled coils/plates, Q195 steel (angle steel, flat steel, square steel), wire, wire rod, fastener products, and accepts customized solutions. You are welcome to send us your requirements.

Name Meaning

• Q: represents the yield strength of steel (the first letter of the pinyin of the word “Q”).
• 195: indicates that the yield strength is ≥195MPa.

Q195 Steel Specification

Item	Q195 steel
Place of Origin	Hebei, China
Thickness	Coil/Sheet: 2.0-3.5mm, Wire rod: 5.5-34mm, Tube: 1 – 30 mm, Bolt: M1.4-M18
Length	Tube/Sheet: 6-12m
Width	300-2500mm or customized
Color	Carbon Black
Length	4m, 10m, 25m, 50m,100m
Processing Service	Welding, punching, cutting, bending, slitting, weaving
Standard	AISI, ASTM, DIN, JIS, GB, EN
Payment term	TT 30% Advance + 70% Balance
Sample	Free Available
Price Item	FOB, CIF, EXW, etc
Packing	Standard export packaging
Certification	ISO 9001, SGS, ABS, BV

Product Type

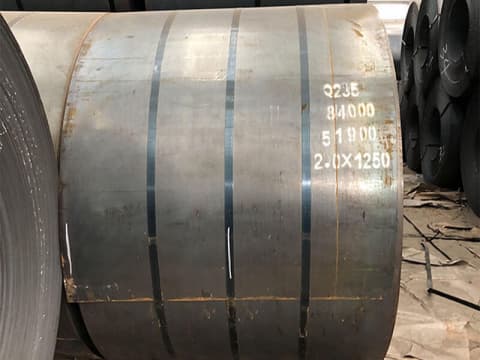

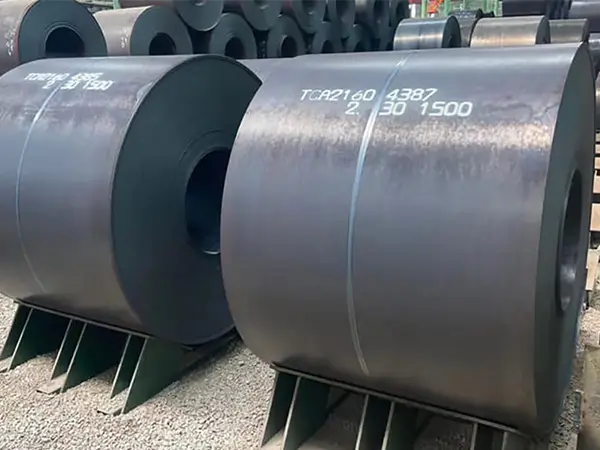

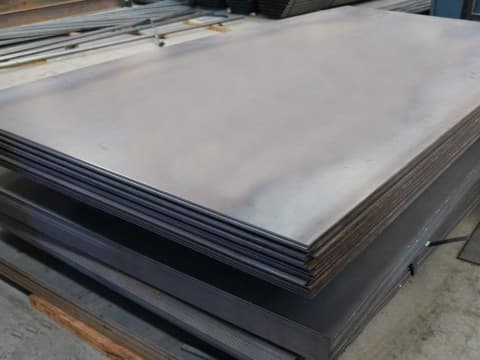

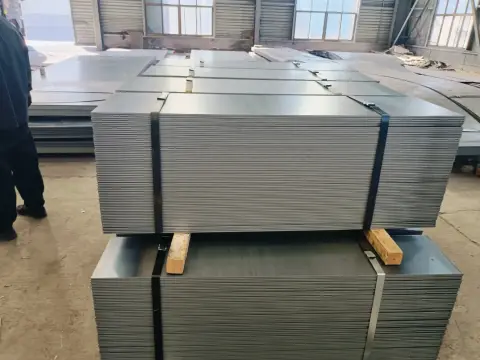

• Q195 hot-rolled plate/coil: hot rolling production process, usually with a thickness of 1.5-20mm, mainly used for building structures and container bottom plates.

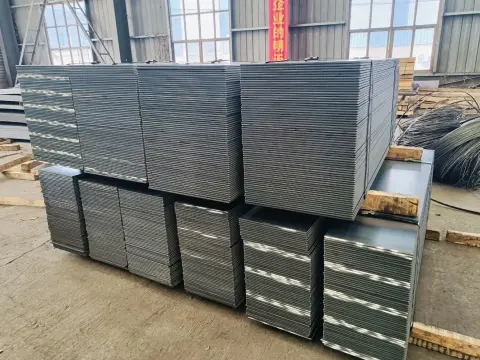

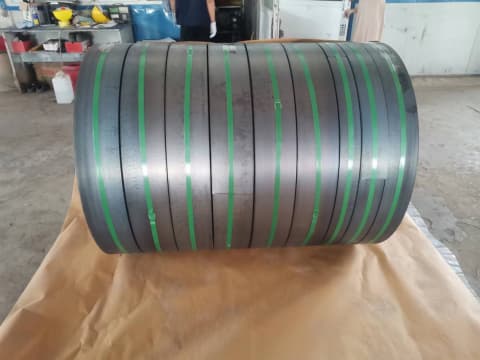

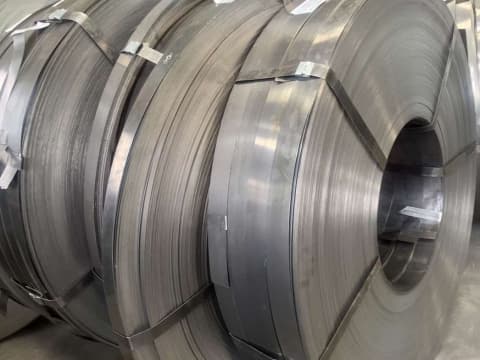

• Cold-rolled plate/coil Q195: cold-rolled annealing process, thickness range 0.3-3.0mm, more precise size than hot rolling, mainly used for home appliance housings and hardware stampings.

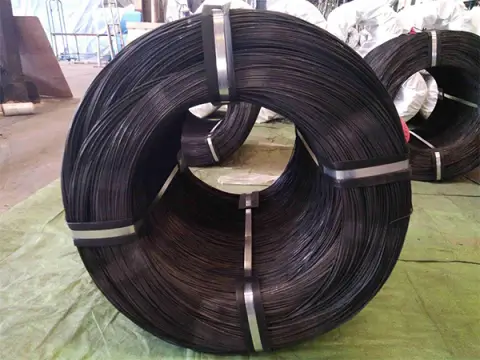

• Q195 wire & wire rod: High-speed wire rolling, supplied in round coils, is the raw material for iron wire, nails, binding wire, and baling wire.
• Industrial steel: hot-rolled forming, common forms of angle steel, flat steel, square steel, I-beam, channel steel, etc., mainly used for simple steel structures and shelves.

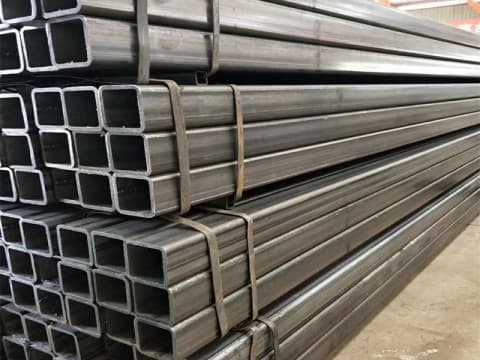

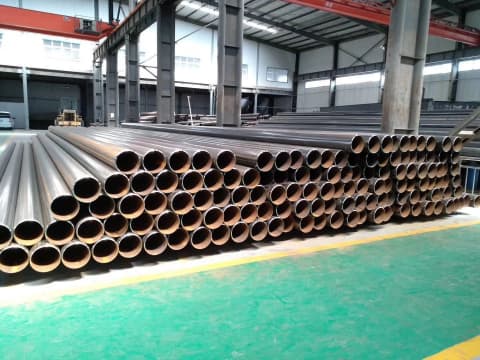

• Q195 steel pipe: including straight seam welded pipe, spiral welded pipe, bright welded pipe, galvanized welded pipe, etc.
• Q195 fasteners: made from rolled wire rods, including anchor bolts, fence staples, hog ring staples, duplex nails, rivets, nuts, screws, construction nails, etc.

Chemical composition & mechanical properties

Chemical composition

Element	C	Si	Mn	P	S
Content	≤0.12%	≤0.30%	0.25%-0.50%	≤0.045%	≤0.050%

Mechanical properties

Performance parameters	Standard value	Measured typical value
Yield strength (Rp0.2)	≥195 MPa	210-260 MPa
Tensile strength (Rm)	315-430 MPa	330-400 MPa
Elongation after fracture (A50)	≥33%	35%-45%
Cold bending test (180°)	Qualified (d=0.5a)	–

Characteristics of each type of Q195 product

• Q195 Hot-rolled sheet/coil: low cost, moderate strength, suitable for welding and cutting. There is oxide scale on the surface, which needs to be pickled or sandblasted before use.
• Q195 cold-rolled sheet/coil: smooth surface (Ra≤0.8μm), high dimensional accuracy. The strength is slightly lower than hot-rolled plate.
• Industrial steel: easy to form, with a full range of spot specifications. Limited load-bearing capacity (not suitable for heavy structures).
• Q195 steel pipe: good plasticity, easy cold bending, excellent welding performance, high yield strength, low cost, but limited load-bearing.
• Q195 wire/rod: high plasticity, can be drawn to fine wires below Φ0.5mm. Low hardness, galvanizing, or coating is required to enhance durability.

Uses

Uses of different product types

• Q195 Hot-rolled sheet/coil: building formwork, truck beams, non-load-bearing structural parts.
• Q195 cold-rolled plate/coil: file cabinets, distribution boxes, lamp stampings.
• Industrial steel: shelves, simple scaffolding, decorative frames.

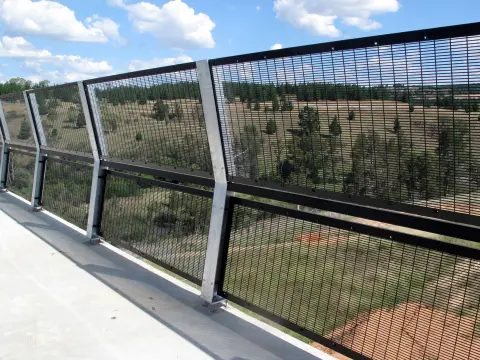

• Q195 steel pipe: used in light industrial fields such as non-pressure pipelines, guardrails, furniture, etc.
• Q195 wire/rod: can be made into galvanized iron wire, used for gardening binding, nail making raw materials, woven mesh, welding mesh.

Application in different fields

• Building and structure: As a galvanized/color-coated substrate, it is often used to manufacture structural parts such as beams, columns, purlins, and bridge support structures of houses.
• Machinery manufacturing: used to manufacture various mechanical parts, such as washers, cotter pins, ferrules, brackets, hooks, pull rods, etc. Used to weld various structural parts, such as equipment frames, bases, etc.
• Hardware and daily necessities: Wire rods for cold heading can be made into hardware parts such as anchor bolts and nuts, rivets, hinges, etc. Hot-rolled Q195 coils are pressed into corrugated plates for packing.
• Daily necessities: such as kettles, buckets, iron chimneys, cans and other daily necessities, cut into cold-rolled narrow strip steel for packaging goods, and steel sections are bent and welded to make furniture pipes.
• Agriculture & agricultural machinery: It can be used to make threshers, crushers, and plow blades. Garden net, grassland fence, rockfall net, gabion net, farm fence net, chain link net production, or made into hardware cloth, Hardware cloth, welded wire mesh.
• Pipeline field: low-pressure fluid transportation, such as water pipes and gas pipes, is also often used to build pipeline systems.
• Other fields: Protective covers and container racks: Q195 steel can be used to make protective covers, container racks, etc.

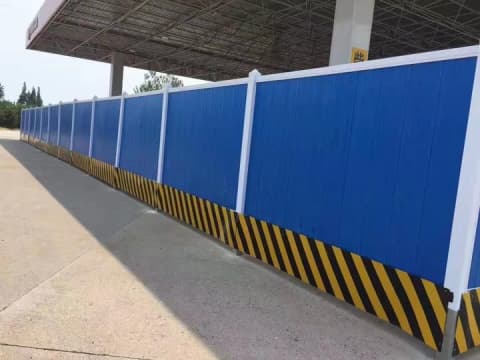

• Temporary facilities: such as temporary enclosures and scaffoldings on construction sites, can also be made of Q195 steel.

Compared with other mild steel

Brand	Yield Strength	Features	Applicable substitution relationship
Q195	≥195 MPa	Excellent plasticity, lowest cost	Substitute for SPHC (Japanese standard)
Q235	≥235 MPa	Higher strength, good weldability	Upgrade load-bearing components
SPCC	≥180 MPa	Cold-rolled commercial grade, high surface requirements	Export home appliance alternative

Material selection suggestions

Prioritize Q195

• Cold-bent/stamped parts with low strength requirements and non-critical structures that require extreme cost control.

Avoid using Q195

• Load-bearing beams, crane components (need to be Q235 or above), high temperature/corrosive environment (need to be replaced with weathering steel).

Wanzhi Steel Q195 Supply Advantages

• Full specification coverage: we offer coils, plates, wire rods, tubes, and fasteners in all sizes to meet your project needs.
• Strictly controlled ingredients: low carbon, low sulfur, and phosphorus (C≤0.12%, P/S≤0.045%), to ensure excellent stamping and welding performance.
• Flexible customization: adjustable manganese content (0.25%-0.5%) to optimize strength, support non-standard size customization.
• Perfect quality assurance: provide MTC material certificate, support third-party testing (salt spray, stretching, etc.), in line with GB/T 700 standards.
