Stainless Steel Rope Mesh


Material: SS304/316/316L Stainless Steel Wire
Wire Diameter: 1.0mm – 3.0mm, 3/64″、1/16″、5/64″、3/32″、1/8″
MOQ: 5 Tons
Delivery Time: 15-21 days
Transportation: By sea, by land

Stainless Steel Rope Mesh

We can see stainless steel rope mesh at construction sites, shopping mall security protection areas, zoos, river banks, and mountainsides. It is not easy to corrode and rust, and it has super hardness, so it has a wide range of uses. Wanzhi Steel is a custom stainless steel rope mesh supplier and manufacturer with rich export experience. We have a wide range of sizes for you to choose from. You are welcome to send an online size consultation.

Ferrule 304 Stainless Steel Wire Rope Mesh Netting

Ferrule 304 Stainless Steel Wire Rope Mesh Netting

Ss Wire Cable Mesh

Ss Wire Cable Mesh

Stainless Steel Rope Mesh Specification

Item Stainless steel rope mesh
Place of Origin Hebei, China
Standard AISI, ASTM, DIN, JIS, GB, EN
Technique Woven
Weave Style Ferruled/ Knotted/ Plain Weave
Feature Flexible, High-Strength
Length Customizable
Mesh Size 0.8″, 1″, 1.2″, 1.5″, 2″, 2.4″, 3″, 3.6″, 4″, 5″, 6″
Rope Structure 7*7, 7*19
Color Silver, red, white, gold, and black
Sample Free Available
Payment term TT 30% Advance + 70% Balance
Price Item FOB, CIF, EXW, CFR, etc
Packing Standard export packaging
Certification ISO 9001, SGS, ABS, BV

What is the Stainless Steel Rope Mesh?

Stainless steel rope mesh is also called stainless steel cable mesh, wire rope woven mesh, stainless steel cable ferrule mesh, etc. It is made of 304/316 stainless steel material, a metal mesh with special elasticity and extreme flexibility. The mesh is diamond-shaped, and the common mesh angles are 60° and 90°. Its mesh size and wire rope thickness can be customized according to the purpose.

flexible ss steel rope mesh

flexible ss steel rope mesh

black aviary mesh

black aviary mesh

It is a creative product born in the 1990s. It is durable and corrosion-resistant, fully reflecting the super toughness and plasticity of austenitic stainless steel. Once it was born, it was quickly accepted by the global market and became the favorite building material of architects and designers.

Features and Benefits

High strength and durability

Using 304, 304L, 316, 316L, and other stainless steel materials, it has strong corrosion resistance, can resist environmental erosion such as ultraviolet rays, moisture, acid, and alkali, has high tensile strength, service life of more than 30 years, and is almost maintenance-free.

Structure and elasticity

It is woven from stainless steel wire ropes, with large breaking force, strong tensile resistance, can adapt to slight deformation, can withstand heavy load impact, and the overall structure is sturdy and durable, not easy to deform or damage.

Lightweight and flexible

It is light and flexible, easy to install and transport, and can adapt to complex terrain or irregular shapes (such as animal cages, curved curtain walls) while maintaining high strength.

Perspective and aesthetics

The woven structure is loose, with good light transmittance and ventilation. The 60° standard diamond opening design ensures safety and reduces visual obstruction, which can be integrated with the building or natural environment.

steel rope mesh bag

steel rope mesh bag

Flexible X Tend Stainless Steel Mesh

Flexible X Tend Stainless Steel Mesh

Safety and functionality

Anti-climbing and anti-falling, suitable for guardrails, curtain walls, zoo fences, and other scenes; the surface is smooth and does not hurt the hands, and the edges are usually equipped with frames and locks to prevent derailment and improve safety performance.

Easy to install and maintain

Support horizontal or vertical installation, the mesh size (20-200mm) and mesh size can be customized to meet different project requirements. The surface is smooth and not easy to accumulate dust, and it is easy to clean.

Stainless steel wire rope mesh material

Stainless steel cable mesh is usually made of high-quality stainless steel materials such as 304, 304L, 316, and 316L. 304/304L and 316/316L stainless steel are stainless steel grades produced by the American ASTM standards. They can be used for food and medical purposes, mainly used to manufacture equipment and machine parts that require corrosion resistance. They have excellent corrosion resistance, easy formability, high toughness, and safety.  In order to maintain the inherent corrosion resistance of stainless steel, they contain 18% or more chromium and 8% or more nickel. Steel cable netting made of stainless steel wire is safe and reliable, soft and flexible, environmentally friendly, highly tough, and has a long life.

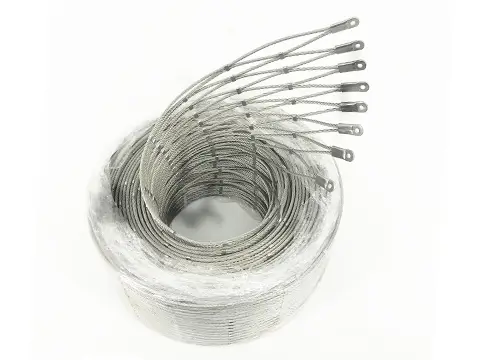

Stainless Steel Woven Rope Mesh

Stainless Steel Woven Rope Mesh

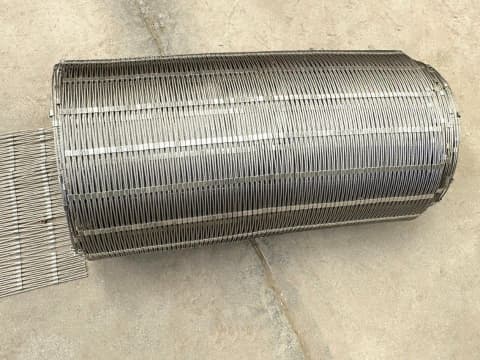

Green Plant Climbing Trellis Wall Mesh for Garden

Green Plant Climbing Trellis Wall Mesh for Garden

Application Areas

  • Architecture and landscape design: used as curtain wall decoration nets and sunshade nets, for park sculptures, suspended walkway guardrails, lighting art scenery, botanical garden climbing nets, garden decorations, or ecological waterscape protection and isolation.
  • Safety protection: high-rise buildings, viaducts anti-fall nets, Building Roof Balcony Stairs Bridge Construction Safety Rope Wire Mesh, zoo beast cage fences. Rockfall protection nets for mines and road slopes, highways, tunnels, lane isolation, or pedestrian protection.
  • Commercial and public spaces: exhibition hall atrium ceiling decoration nets, shop partition screens, playgrounds, climbing nets, kindergarten safety fences. Peripheral fences for football fields, basketball courts and other venues.
  • Animal protection and park management: Enclosed animal activity areas such as beast areas and bird areas, used for isolation of marine ranches and aquaculture areas.
  • Industry and infrastructure: High-voltage tower bird-proof nets to prevent foreign objects from intruding. Factory/workshop isolation, logistics and warehousing division. Anti-fall or prevent accidental entry.
  • Ocean & Agriculture: Port breakwater protection nets, ship deck anti-skid nets, to resist seawater corrosion. Anti-escape nets for farms, such as deer and poultry, or plant climbing nets for greenhouses. Tree support nets, orchard bird-proof nets.
Metal rope net

Metal rope net

Architectural Cable Safety Mesh

Architectural Cable Safety Mesh

Zoo Mesh

Zoo Mesh

Recommended size according to usage

1) 3/64” diameter and 1/16” are usually used for small birds, large aviaries, and small animals, such as parrot house nets.

2) 5/64” and 3/32” diameters can be used for some medium-sized animals or large birds.

3) 1/8” diameter can be used for large animals, including large cats, bears, large primates, etc.

Stainless steel rope mesh structure

The structure of the SS cable mesh is SS cable and various ferrules. The ferrules are made from stainless steel, Aluminum, copper, etc. In addition, we can also oxidize or spray the surface of the Stainless steel rope net according to customer needs.

The following 5 types are commonly used ferrules: Standard Ferrule, Aluminum Ferrule, Open Ferrule, Eye Ferrule, and Cross Ferrule.

Wire Rope Structure and Diameter

Wire Rope Structure and Diameter

Stainless steel rope mesh types

Stainless steel wire rope mesh includes two types:

1)  Stainless steel cable woven mesh (stainless steel sleeveless wire rope mesh).

2) Stainless steel cable ferrule mesh (stainless steel sleeved wire rope mesh).

We can judge that the two types of mesh are composed of stainless steel wire cables from the names, but the processing technology is different. The mesh knot (grid) is fixed in different ways.

The application of these two types of cable mesh nets is very similar and can be used as the zoo fence mesh, aviary mesh, animal enclosures, zoo enclosure fence, safety net, and railing net.

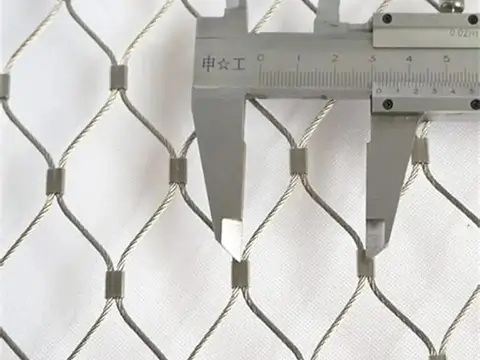

Stainless steel cable ferrule mesh

Stainless steel cable ferrule mesh

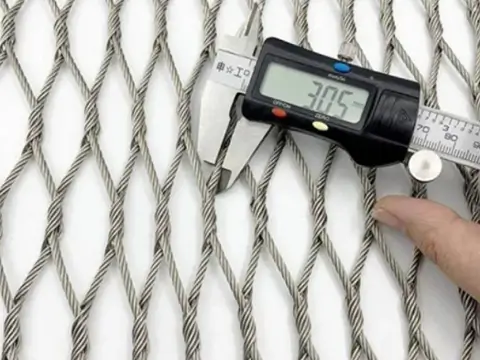

stainless steel sleeveless wire rope mesh

stainless steel sleeveless wire rope mesh

Difference between stainless steel rope woven mesh and stainless steel ferrule mesh

1. Visual impact, light transmittance

The rope woven mesh structure is simpler, has higher light transmission, and has a better transparency effect on visual effects. It is easier to be ignored by people and has little effect on people’s vision. Watching at a distance is almost invisible. The stainless steel wire rope mesh benefits from its simple structure, its mesh is more firm and will not deform. From the perspective of product quality, the wire rope woven mesh has a very stable product quality.

2. Weight

Another difference between a rope woven mesh and a ferrule mesh is the difference in weight. In the same area, the thickness of the wire rope, the woven mesh, and the ferrule mesh weight are different. Because the ferrule mesh is fixed by the steel ferrule, the unit weight is heavier. That is, under the same order quantity, the cable woven mesh is lighter.

3. Mesh Angle

The last difference is that the mesh aperture. Wire rope ferrule mesh is typically stretched to 60 degrees when installed. The aperture of the mesh is based on its diagonal, not its legs.

Ferrule Type

Ferrule Type

Inter Woven Type

Inter Woven Type

The Main Parameters of Stainless Steel Cable Mesh You Need to Know

SS cable inter-woven mesh

The standard mesh holes of the SS cable inter-woven mesh are a diamond shape with a 90 90-degree top angle. The main parameters for production are the cable diameter, mesh size(center distance), and the width and length of the mesh panels. For the irregular shape of the mesh, we will need a drawing to produce the mesh.



SS cable ferrule mesh

1. Mesh Angle

The standard mesh holes of SS cable ferrule mesh are a diamond shape with a 60-degree top angle. The main parameters for production are the cable diameter, the long-way and short-way of the mesh opening, and the width and length of the mesh panels. For the irregular shape of the mesh, we will need a drawing to produce the mesh.

2. Directional Differences

SS rope ferrule mesh has direction difference in production; the mesh can be installed in the vertical or horizontal direction, in the two directions, the means of mesh length and height will be different. It is important to confirm the direction before producing the mesh.

3. Different edge seals

SS cable ferrule mesh also has different edge seal options, mainly including the 4 basic types: Sealed with standard ferrule, Sealed with eye-ferrule, Sealed by cable loops, Sealed by cable loops with standard ferrule.

High Strength 316 7X7 Flexible Diamond

High Strength 316 7X7 Flexible Diamond cable net

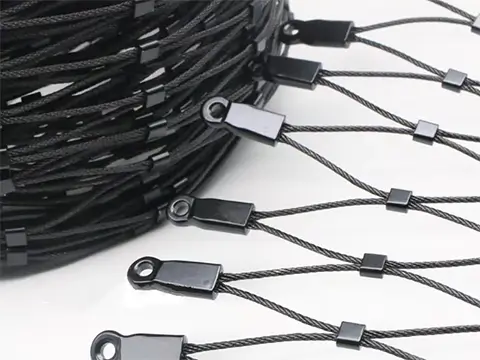

Bridge Construction Safety Rope Wire Mesh

Bridge Construction Safety Rope Wire Mesh

Specification naming

Specification naming method:

  • Thickness of the metal rope: The rope diameter determines the maximum force value of a single steel wire rope in the entire mesh.
  • The size of the mesh: It is determined by the purpose of the mesh, such as whether it is used to confine animals or to block animals.
  • The size of the mesh: It is determined by the size of the animal or object being operated.



The available rope strand structures are: 7*7 and 7*19.

  • When the wire rope diameter is < 2.5mm, a 7*7 rope strand structure is used.
  • When the wire rope diameter is > 2.5mm, a 7*19 rope strand structure is used.
Eesily Install Inox Wire Rope

Eesily Install Inox Wire Rope

Steel Wire Rope Mesh Net

Steel Wire Rope Mesh Net

Cost and Price

The price of stainless steel wire rope mesh is often not constant, So you can ask us for the latest FOB, CIF, etc. prices.

  • First of all, the biggest factor affecting its unit price is different specifications.
  • The second is freight, which varies according to the mode of transportation, route, and weight of the goods. Usually, according to the freight from low to high, the modes of transportation are sea transportation, air transportation, and express delivery.
  • The exchange rate is not the main factor in determining the unit price. But you need to inquire in real time to get the latest price. Wanzhi Steel is a factory direct sales, and for bulk orders, the ex-factory price is provided.

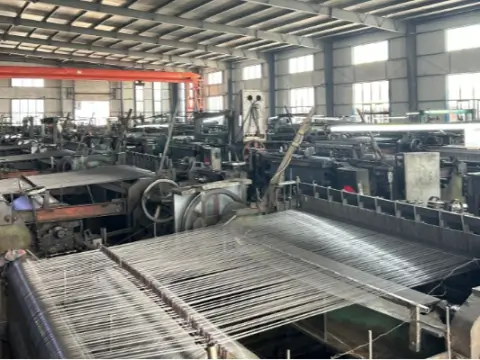

Cable Wire Net Wholesale Manufacturer

Cable Wire Net Wholesale Manufacturer

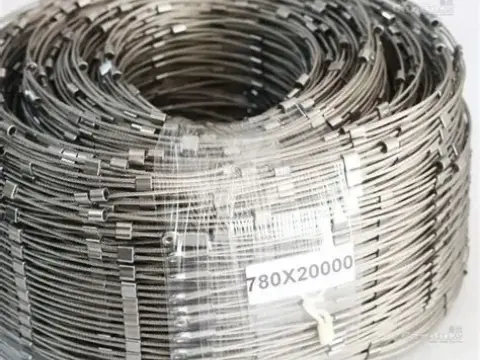

Building Roof Balcony Stairs Safety cable Wire Mesh

Roof Balcony Stairs Safety cable mesh

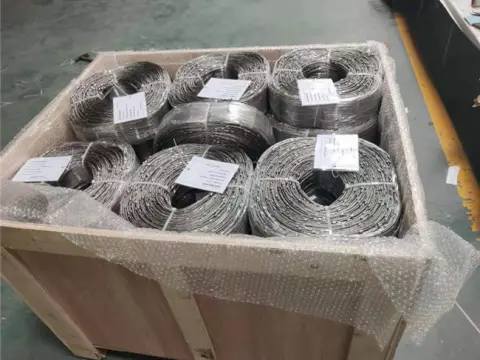

Package

Package



Stainless steel rope mesh Supplier- Wanzhi Steel

In short, stainless steel rope mesh combines durability, beauty, and functionality, making it an ideal choice for a variety of applications. Wanzhi Steel Factory is available in stock and can be shipped. We strictly select high-quality stainless steel wire as raw material. We also produce Stainless steel rope mesh deck railing/ balustrade balcony infill inox net mesh, light-weight Strength Stainless Steel rope mesh…



Get samples or a bulk quote! Chat with Us Online,

or send an email to: info03@wanzhisteel.com





Wanzhi Steel is an ISO 9001-certified steel factory located in Hebei, China. It specializes in the production of SS Steel Woven Wire Mesh, Stainless Steel Handrail Cable, stainless steel rope mesh, Stainless steel chain link fencing, Stainless Steel Cable, stainless steel rope net, SS steel wire mesh for 14 years, with a monthly output of 1,800 tons. With high-quality products and good services, its products have been exported to more than 120 countries around the world.
