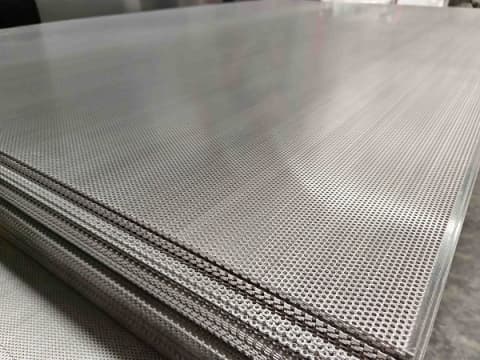

Stainless Steel Perforated Sheet

Stainless Steel Perforated Sheet is a metal sheet with regular holes formed on a stainless steel substrate by mechanical stamping or laser cutting. It combines structural strength, air permeability, decorativeness, and functionality. The hole structure can achieve light filtering, ventilation, noise reduction, and protective isolation effects. It is used for architectural decoration, industrial equipment, and public facilities. Wanzhi Steel stocks a full range of stainless steel perforated sheets of various thicknesses. The length, width, and hole shape can be customized. You are welcome to contact us for details.

Perforated Metal Grille Sheet Stainless Steel

Stainless Steel Perforated Sheet Hexagonal hole

Stainless Steel Perforated Sheet Specification

What is stainless steel perforated plate?

The core of stainless steel perforated plate is “perforation”. It uses CNC punching machines or laser equipment to accurately process circular, square, hexagonal, and other hole shapes on stainless steel plates. The hole spacing and arrangement can be customized. The material base material mostly uses 304 and 316 series. Due to its excellent corrosion resistance, oxidation resistance and processing performance, it can adapt to complex environments such as humidity, acid, and alkali.

Perforated Metal Sheet

Mirror round hole stainless steel perforated plate

Common grades and characteristics

304 stainless steel

As the most widely used austenitic stainless steel, grade 304 contains 18% chromium and 8% nickel, also known as 18-8 stainless steel. It has excellent corrosion resistance and formability and is suitable for construction and mechanical protection in general environments. It has good low-temperature performance, but its resistance to chloride ion corrosion is relatively weak.

316 stainless steel

Adding 2%-3% molybdenum to 304 significantly improves the resistance to pitting and crevice corrosion, especially for highly corrosive scenes such as marine environments and chemical equipment. For example, 316 grade perforated plates are often used in curtain walls of coastal buildings and guardrails of offshore platforms.

304L/316L low carbon series

By reducing the carbon content to below 0.03%, the risk of intergranular corrosion caused by the precipitation of chromium carbide during welding is reduced, which is suitable for large structural parts that need to be welded, such as food processing equipment and pharmaceutical machinery.

430 ferritic stainless steel

Contains 17% chromium, no nickel, low cost, and resistance to oxidizing acid corrosion, but weak ductility. Suitable for decorative partitions, audio grilles, etc., in dry indoor environments.

hexagonal perforated SS steel sheet

SS 316 diamond perforated sheet

304 stainless Long hole perforated sheet

Core Features & Advantages

• Corrosion resistance: The dense chromium oxide film formed on the surface of stainless steel can effectively block oxygen and moisture, extending its service life. For example, the corrosion rate of 316 grade perforated plate in seawater environment is only 1/100 of that of ordinary carbon steel.
• High structural strength: By optimizing the hole design (such as staggered arrangement), the strength of the plate can be maintained while ensuring air permeability. The thickness of perforated plates for building curtain walls is usually 1.5 mm- 3 mm, and the wind pressure resistance is above 2.5kPa.
• Lightweight: Perforation reduces the quality of stainless steel plates, ensuring the anti-rust effect while improving the decorativeness and facilitating transportation and operation.
• Fusion of beauty & functionality: The arrangement of holes can form a gradient and patterned effect, enhancing the artistic quality of the building; at the same time, the precise control of the hole diameter and hole spacing can achieve specific functions such as sound insulation (such as theater sound absorption panels) and ventilation (such as machine room heat dissipation nets).
• Environmental protection & maintainability: Stainless steel can be 100% recycled and meets green building standards; surface stains can be easily removed by neutral detergents, and the maintenance cost is low.

Custom sizes

SS steel corrugated perforated sheet

Square perforated red corrugated sheet

Surface effect of stainless steel perforated plate

• 2B: Silver-gray, smooth surface, relatively soft luster, non-mirror effect. Good processing performance, strong corrosion resistance, can reflect light well, not easy to produce glare.
• BA: The surface is as bright as a mirror, with high reflectivity, and presents a bright metallic luster. The surface quality is high and the corrosion resistance is excellent. It is used in fields with demanding appearance to improve the grade.
• NO.1: The original surface after hot rolling has a rough texture, obvious rolling texture, and a dark gray color. It has high hardness, good wear resistance and strength, but relatively poor corrosion resistance, and requires rust prevention treatment.
• NO.3: It has a uniform matte texture, moderate roughness, can produce diffuse reflection effect, and is visually softer. Wear-resistant and scratch-resistant, it can prevent the adhesion of fingerprints and stains, and is easy to clean and maintain.
• NO.4: Smoother than NO.3 surface, with a delicate matte texture, a certain glossiness, and can reflect light well. It has good decorative and corrosion resistance, beautiful surface and easy to clean.
• 8K: It has a mirror effect, with extremely high gloss and reflectivity, and can clearly reflect the image of the object, just like a mirror. The appearance is gorgeous and highly decorative, which greatly improves the product grade and vision.

HL surface

Brushed silver surface

NO.4 finish surface

• HL: The brushed surface has a continuous silky texture with consistent texture direction, presenting a soft metallic luster and a unique line beauty. It has good scratch resistance, can hide slight scratches, and has a certain anti-slip effect.
• 1D: The surface that has been heat-treated and pickled after hot rolling is similar to NO.1, but the surface oxide scale is removed after pickling, and the color is silver-gray, with good corrosion resistance, processability, and surface flatness, and the surface quality is better than NO.1.

Hole type and hole diameter

Common hole types

Perforated mesh hole type

Selection of hole diameter and hole spacing

• Small aperture (0.8 mm- 3 mm): suitable for precision filtration and heat dissipation of electronic equipment.
• Medium aperture (3 mm- 10 mm): common specifications for building curtain walls and sound barriers.
• Large aperture (10 mm- 100 mm): industrial equipment protection nets, ventilation ducts.

Color coated stainless steel perforated plate

The hole spacing design needs to balance air permeability and strength. It is generally recommended that the hole spacing be ≥1.5 times the hole diameter.

color coated stainless perforated sheet

green perforated corrugated SS sheet

Blue perforated corrugated board supply

Application Areas

Application of round holes

• Architectural decoration: When used for wall decoration and ceiling, the round holes create a simple and smooth visual effect. Light passes through the round holes to form a unique light and shadow, increasing the sense of space.
• Handrails and partitions: It has both protective function and transparency. When used for sound-absorbing structures, it is compounded with sound-absorbing cotton and used in theaters and recording studios.
• Machinery manufacturing: as filters and screens. Widely used in petroleum, chemical, pharmaceutical and other industries, it is also used to manufacture protective covers to protect mechanical equipment.
• Automobile manufacturing: The manufacture of automobile body shells reduces the weight of the body while ensuring the strength and rigidity of the body. Used in the design of automobile radiator covers to provide good ventilation and heat dissipation effects

perforated stainless steel tubing

perforated stainless steel screen

Application of Square holes

• Architectural decoration: Square hole perforated stainless steel plates have a neat and regular appearance and are suitable for modern minimalist architectural decoration. It can be used for exterior wall decoration, interior walls, partitions, screens, showing a simple and generous visual effect.
• Household items: trash cans, storage baskets, to prevent the accumulation of garbage odor, decorative panels of tables and chairs, cabinet doors, to increase aesthetics.
• Shopping mall display: display shelves in food contact areas, sports equipment hanging boards.
• Transportation: highway guardrails in humid and rainy areas, toll booth baffles.

Coastal area parking lot isolation

Biological research protective cover

Application of long holes & Rectangular holes

• Ventilation and air conditioning systems: ventilation ducts, grilles of air conditioning outlets and other parts to improve the efficiency of ventilation and air conditioning systems.
• Screen and display: as the back plate or sunshade of LED display screens and photoelectric screens, it improves the display effect of the screen by controlling the transmission and scattering of light.
• Filtering and screening: suitable for filtering and screening of long or flat objects, filtering and separating different materials on the production lines of chemical and food processing industries.
• Fence: fence baffles used on both sides of the stairs, safe and do not block light and sight, courtyard and pasture farm fences.

Photovoltaic station guardrail

Hospital Medical Waste Fence

Application of hexagonal holes

• Building facades and curtain walls: neatly arranged, beautiful, with good vision, adding a unique sense of rhythm to the building facade, good structural stability, and able to withstand certain external forces.
• Stair handrails and railings: provide good protection to prevent people from falling accidentally. Increase the beauty of the stairs.
• Industrial shelves and storage: used to make industrial shelves, storage cages and other equipment to facilitate the storage and handling of goods, and provide ventilation and lighting.

Decorative perforated metal panels

perforated metal fence

Application of diamond holes

• Filtration and separation: used for the production of precision filtration equipment, filter cartridges, filter discs, etc., and used for filtration and separation in the chemical, pharmaceutical, and electronic industries.
• Decoration and protection field: used for wall decoration and partitions to create a unique visual effect, and used to make protective nets, guardrails, etc.
• Aerospace and new energy: aircraft parts, spacecraft structural parts, etc., can also be used as support structures for battery diaphragms or electrode materials.

Hospital Chair

Pharmaceutical corridor floor

Production process

• Material preparation: Select 304/316 grade stainless steel coil or flat plate according to demand, with a thickness range of 0.3 mm- 10 mm.
• Stamping/laser cutting: CNC punching machines are suitable for thick plates and mass production, with high efficiency but limited hole shapes. Fiber laser cutting: Accuracy of ±0.05mm, can process complex hole shapes, suitable for customization.
• Surface treatment: Brushed: Form a matte texture and reduce fingerprint residue. Mirror polishing: Improve glossiness for high-end decoration. Spraying: Fluorocarbon paint, epoxy paint, etc., to enhance weather resistance.
• Quality inspection and packaging: After inspection by equipment such as aperture detectors and salt spray test chambers, qualified products are packaged in moisture-proof paper + wooden boxes. Foam pads and angle steel brackets are installed in the wooden box, and the box body is marked with specifications.

304 stainless steel coil No.2 Surface

thinnest stainless steel sheet supply

Automatic perforating equipment

Why Choose Wanzhi Steel

As an industry-leading supplier of metal mesh coils, Wanzhi Steel has the following core advantages:

• Capacity: Annual production of stainless steel perforated plates exceeds 20,000 tons, equipped with 500-ton CNC punching machines and 5000W laser cutting machines.
• Technology Timeliness: The automated production line achieves aperture error ≤0.1mm, and the delivery cycle is shortened to 15-18 days.
• Quality certification: equipped with spectrometers, three-coordinate measuring machines, and other testing equipment to ensure that each batch of materials is qualified.
• Customized service: supports full-dimensional customization of hole type, aperture, and plate thickness, with a minimum order quantity of 5 tons. Provide free samples and 3D renderings to help customers implement their projects.

430 304ss Metal Mesh Sheet package

1mm2mm SS perfotated plate outer package

Stainless Steel Perforated Sheet Supplier- Wanzhi Steel

SS steel perforated plate has become the core material in modern industry and construction due to its excellent performance, flexible design, and wide uses. From high-end curtain walls to industrial protection, from acoustic engineering to public facilities, its value is constantly being explored.

Wanzhi Steel is committed to providing high-performance stainless steel perforated plate solutions to you with advanced technology, strict quality control, and customized services.
