Gi Perforated Sheet
Thickness: 0.12mm to 4mm
Delivery Time: 15-21 days
Transportation: By sea, by land
Gi Perforated Sheet
Gi perforated sheet metal is made from galvanized steel sheets, punched to create a regular hole pattern. The zinc coating provides excellent rust and corrosion resistance, while also providing ventilation, light transmission, filtration, and decorative effects. This product offers high strength, long life, and easy installation, making it suitable for use in construction, industry, and decoration. Wanzhi Steel offers customizable galvanized perforated sheet metal with custom hole spacing, hole patterns, and zinc coatings. If you are interested, please contact us.
Wanzhi Steel perforation production line
Perforated galvanized steel sheet
Specification
| Item | Galvanized perforated Sheet |
| Place of Origin | Shandong, China |
| Standard | AISI, ASTM, BS, DIN, JIS, GB, EN |
| Width | 600mm to 2,000mm |
| Spangle | Zero spangles (0.12-2.0 mm), 0.7-4 mm with small spangles, regular (big) spangles |
| Zinc Layer Thickness | 30 g/m2-275 g/m2 |
| Hole size | 0.8-18mm |
| Aperture | 0.4-10mm |
| Hole Shape | Round, square, rectangular, star, slotted, hexagonal, rhombus, triangle |
| Width | 10mm – 1,500mm |
| Color | Silver |
| Sample | Free Available |
| Payment term | TT 30% Advance + 70% Balance |
| Price Item | FOB, CIF, EXW, CFR, etc |
| Packing | Standard export packaging |
| Certification | ISO 9001, SGS, ABS, BV |
| MOQ | 5 tons |
Production Video
Key Benefits
Strong Corrosion Resistance
The zinc-plated surface provides electrochemical protection, insulating against the elements and resisting atmospheric and environmental corrosion.
Ventilation and Light Transmission
The perforated design allows for the free passage of air, light, and liquids, while also providing partial shielding.
High Structural Strength
The metal base material offers excellent mechanical properties while balancing lightweight, impact resistance, and long life.
Decorative and Functional
The regular hole pattern creates an aesthetic effect while also providing practical functions such as sound absorption and filtration.
Easy Processing and Installation
Secondary processing, such as cutting and bending, can be performed, making installation simple and flexible.
Economical and Practical
Compared to stainless steel, it offers lower cost, higher cost-effectiveness, and a wider range of applications.
Perforated galvanized stainless mesh sheet
architecture perforated metal sheet coil
Application
Construction
Used for exterior sunshades, interior ceilings, partition curtain walls, and railing decorations in parks, hospitals, airports, shopping malls, and other buildings, combining aesthetics with ventilation.
Industry
Used for machinery and equipment protective covers, ventilation grilles, factory stair treads, highway sound barriers, and factory sound-absorbing wall panels, absorbing noise and reducing echo.
Screening and Filtration
Used for vibrating screens, filters, grading screens, electronic chassis heat dissipation, and audio grilles in agriculture, mining, and grain processing.
Agriculture and Home Use
Used for greenhouse ventilation windows and farm fences, promoting air circulation while preventing corrosion. Also used for storage racks, flower box enclosures, and pet cages.
Recommended Applications for Different Zinc Coatings
The weight of the zinc layer (unit: g/m²) directly determines the corrosion resistance life of the plate, and is usually represented by “Zxxx”.
- Z100-Z120: Normal environments, such as dry indoor environments.
- Z180-Z200: Moderately corrosive environments, such as outdoor air and well-ventilated locations.
- Z250-Z275: Highly corrosive environments, such as humid areas, coastal regions, and chemical plants.
Balcony safety guardrail
Architectural design Use

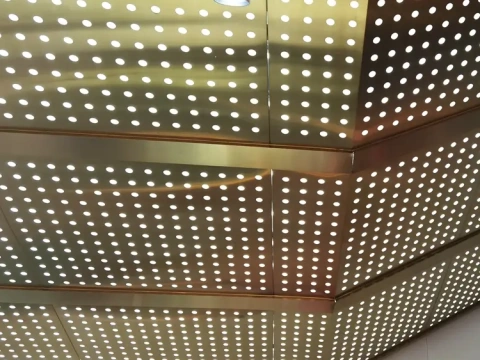

perforated metal ceiling
Galvanized Perforated Sheet Material Types
- DX51D/DX52D/DX53D/DX54D (European Standard)
- SGCC/SGCD1/SGCD2/SGCD3 (Japanese Standard)
- CS Type B (American Standard ASTM)
For galvanized steel perforated sheet, the base material must be soft or fully soft (Soft/Annealed) to prevent microcracks during punching. Avoid using fully hardened or high-carbon steel.
Galvanized Sheet Gauge to mm
| Galvanized Steel Sheet Gauge Chart | |||
| Gauge | mm | Inches | |
| 8 | 4.27 | 0.1681 | |
| 9 | 3.89 | 0.1532 | |
| 10 | 3.51 | 0.1382 | |
| 11 | 3.13 | 0.1233 | |
| 12 | 2.75 | 0.1084 | |
| 14 | 1.99 | 0.0785 | |
| 16 | 1.61 | 0.0635 | |
| 18 | 1.31 | 0.0516 | |
| 20 | 1.01 | 0.0396 | |
| 21 | 0.93 | 0.0366 | |
| 22 | 0.85 | 0.0336 | |
| 23 | 0.78 | 0.0306 | |
| 24 | 0.70 | 0.0276 | |
| 25 | 0.63 | 0.0247 | |
| 26 | 0.55 | 0.0217 | |
| 27 | 0.51 | 0.0202 | |
| 28 | 0.47 | 0.0187 | |
| 30 | 0.40 | 0.0157 | |
Production Process
1. Material Selection and Preparation
High-quality soft-galvanized steel is used as the base material to ensure stamping formability and basic rust resistance.
2. CNC Punching
High-precision CNC punching machines and custom dies are used to punch the sheet metal at high speed and with high precision, ensuring a clean, burr-free hole pattern.
3. Surface Treatment and Customization
Cutting, hemming, and surface passivation treatments are performed as required to prevent storage corrosion. Decorative coatings can also be applied to enhance weather resistance upon request.
Pre-painted Gi Perforated Sheet
Color-coated GI perforated sheet is a composite product based on galvanized perforated sheet with a surface coating. It combines the corrosion protection of galvanized sheet with the decorative and enhancing properties of a coating. A variety of colors, gloss levels, and special effects are available. Common coating types include PE, SMP, HDP, and PVDF.
See firsthand how our PPGI perforated sheet is produced!

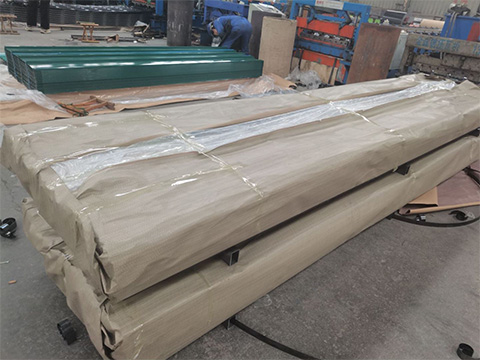

Export packaging
Waterproof kraft paper inner packing
perfotated plate outer package
Gi Perforated Sheet Manufacturer- Wanzhi Steel
For long-lasting performance without the high cost of stainless steel, GI perforated sheet is the smart choice. The zinc coating provides excellent rust protection, reducing maintenance needs and replacement costs. At Wanzhi Steel, we stock a wide range of sizes and patterns for fast delivery. Request a sample to test the quality or get a competitive quote within 10 hours. Reach out now!
Get samples or a bulk quote! Chat with Us Online,
or send an email to: info03@wanzhisteel.com.
Wanzhi Steel is an ISO 9001-certified steel factory located in Hebei, China. It has been specializing in the production of perforated galvanized sheet, Steel Grating Plate, perforated aluminum sheets, galvanized mesh Panels, Stainless Perforated Mesh Sheet for 14 years, providing color coating, welding, PVC coating and other services, with a monthly output of 1,800 tons. With high-quality products and good services, its products have been exported to more than 120 countries around the world.
