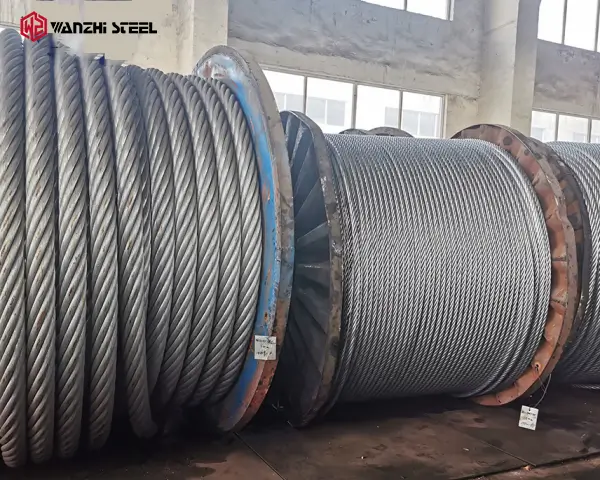

Galvanized Steel Wire Rope

Galvanized steel wire rope, also known as galvanized steel cable, is made of galvanized wire and is a high-strength metal hoisting and traction product. Its core material is carbon steel wire. Galvanized steel cable features corrosion resistance, high tensile strength, and good flexibility. Wanzhi Steel supplies galvanized steel wire rope in all specifications, stranding structures(6×7, 6×19, 6×37, 7×19), and lengths.

Specification

Item	Galvanized steel wire rope
Place of Origin	Hebei, China
Standard	AISI, ASTM, BS, DIN, JIS, GB, EN
Surface treatment	Black Painting, galvanized
Color	Silver, black
Sample	Free Available
Payment term	TT 30% Advance + 70% Balance
Price Item	FOB, CIF, EXW, CFR, etc

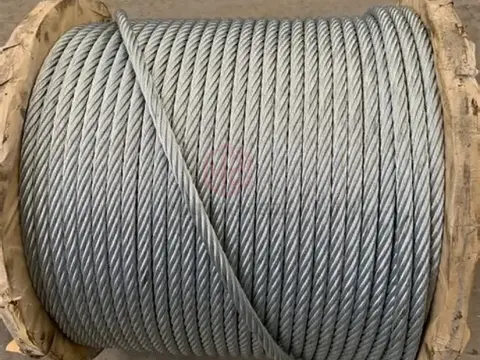

Packing	Wooden Reel
Certification	ISO 9001, SGS, ABS, BV
MOQ	5 tons

Advantages

Corrosion and Rust Prevention

Our products utilize hot-dip galvanizing to apply a zinc coating, ensuring superior adhesion and thus an exceptionally long service life. Zinc coating thickness can be selected based on the application.

High Tensile Strength

We select premium carbon steel wire to guarantee its strength and toughness. The wire rope boasts high breaking strength and stable load-bearing performance, making lifting, traction, and binding more reliable.

Complete Specifications

We offer a full range of standard specifications and can customize different wire diameters and stranding structures according to customer application scenarios and load-bearing requirements.

Typical Applications

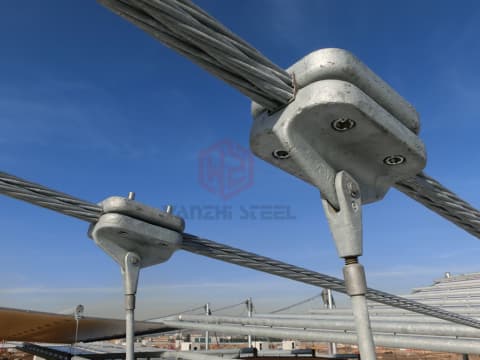

• Construction Engineering: Used for binding, pulling, and reinforcing building materials; parallel wire cables for cable-stayed bridges; tower crane and elevator ropes, etc., and pulley cable systems. Our galvanized steel wire ropes 8mm and 10mm are commonly used for tower crane lifting, while 5mm galvanized steel wire rope is ideal for lightweight binding and fixing.
• Transportation and Logistics: Used for binding, securing, and pulling vehicles and ships; also used for container lashing and cargo lashing.
• Marine and Fisheries: Widely used in marine oil exploration, offshore platform operations, trawls, fixed nets, and reel nets. We supply the galvanized steel wire rope impa code for marine logistics compliance.
• Industry: Used in mining, metallurgy, port machinery, and lifting equipment for hoisting, pulling, tensioning, and material transfer.

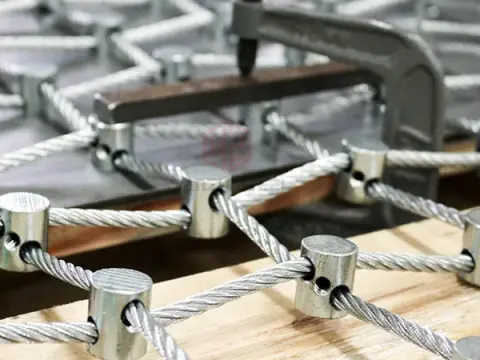

• Agriculture, Animal Husbandry, and Others: Used for pulling agricultural machinery, hoisting aquaculture equipment, securing and tensioning large-scale aquaculture farms, guy wires for power transmission towers, safety ropes for high-altitude residential work, and installing and securing streetlights and signs. Our galvanized vinyl-coated steel wire rope is also used for galvanized rope mesh in livestock fencing and garden supports.

Production Process

High-quality carbon steel wire rod → multi-stage wire drawing equipment → heat treatment to eliminate internal stress → hot-dip galvanizing (immersion in molten zinc to form a thick zinc layer) / electro-galvanizing (electrolysis to form a uniform thin zinc layer) → twisted into rope by a rope twisting machine → full performance testing → packaged in rolls or bundles after passing inspection (outer film coating optional).



Implement quality standards

• Complies with Chinese national standard GB/T 8918-2018.
• Meets EU standard EN 12385 / US standard ASTM A416‌.

Electro-galvanized and hot-dip galvanized steel wire rope

• Hot-dip galvanising: The zinc layer is thick and forms a zinc-iron alloy layer, offering stronger corrosion resistance. It is suitable for long-term exposure to harsh environments such as outdoors, humid areas, and marine conditions, with a service life of several decades, making it the preferred choice for high-demand projects.
• Electro-galvanising: The zinc layer is uniform and has a bright surface, with lower costs. It is suitable for short-term applications where aesthetics are important or in less corrosive environments, such as indoor binding or light structures.

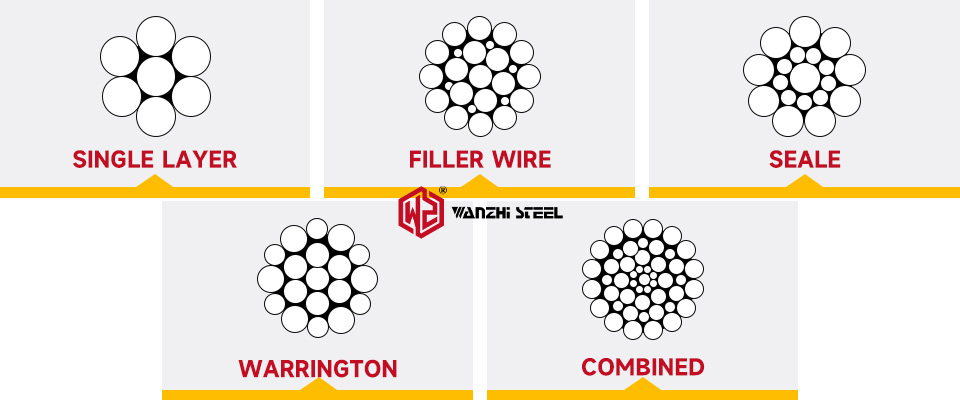

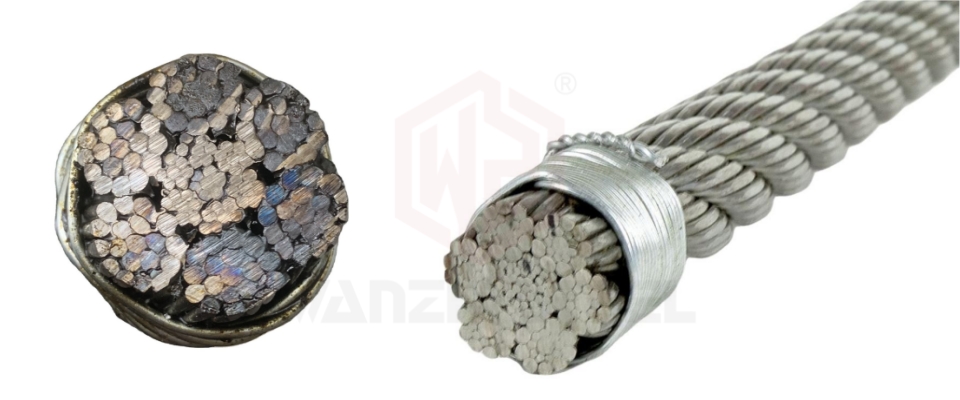

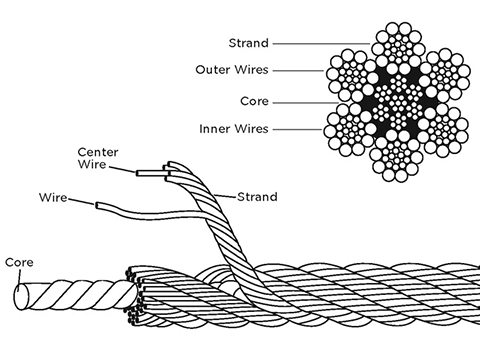

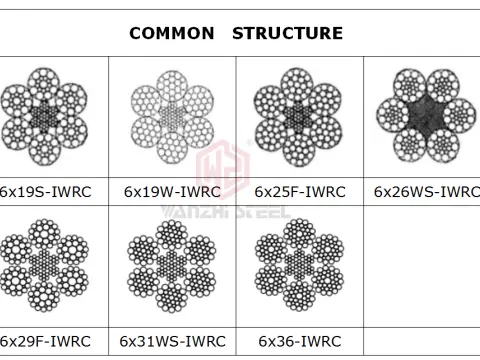

Our Galvanized Steel Wire Rope Structure

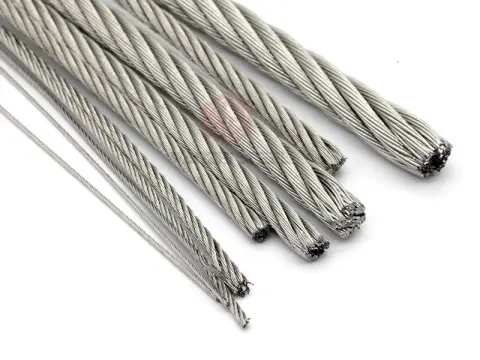

Specification (Diameter)	Construction	Approx. Wire Diameter	Approx. Load Capacity
1.2mm	Full Steel Core 1×19	1.2mm	10 kg
1.5mm	Full Steel Core 7×7	1.5mm	20 kg
2.0mm	Full Steel Core 7×7	2.0mm	40 kg
3.0mm	Cotton Core 6×7	3.0mm	80 kg
4.0mm	Cotton Core 6×7 (Light)	4.0mm	160 kg
4.0mm	Cotton Core 6×12 (Heavy)	4.0mm	180 kg
5.0mm	Cotton Core 6×12 (Light)	5.0mm	200 kg
5.0mm	Cotton Core 6×19 (Heavy)	5.0mm	230 kg
6.0mm	Cotton Core 6×12 (Light)	6.0mm	240 kg
6.0mm	Cotton Core 6×19 (Heavy)	6.0mm	330 kg
8(7.7)mm	Cotton Core 6×12 (Light)	8(7.7)mm	400 kg
8(7.7)mm	Cotton Core 6×19 (Heavy)	8(7.7)mm	450 kg
10(9.3)mm	Cotton Core 6×12 (Light)	10(9.3)mm	620 kg
10(9.3)mm	Cotton Core 6×19 (Heavy)	10(9.3)mm	740 kg
12.0mm	Cotton Core 6×12 (Light)	12.0mm	830 kg
12.0mm	Cotton Core 6×37 (Heavy)	12.0mm	1130 kg

Galvanized Steel Wire Rope VS. Stainless Steel Wire Rope

Comparison Dimension	Galvanized Steel Rope	Stainless Steel Wire Rope
Corrosion Resistance	Good	Excellent
Tensile Strength	High	High to Medium
Cost-Effectiveness	High	Low
Key Material	Carbon steel + zinc coating	304/316 stainless steel (chromium-nickel alloy)
Suitable Environments	Slightly corrosive environment	Highly corrosive environments
Flexibility	Good	Good
Wear Resistance	High	Medium
Service Life	3–8 years	8–15 years
Maintenance Requirement	Regular inspection required	Low maintenance requirements

When comparing galvanized vs stainless steel wire rope, our galvanized iron & steel wire rope provides a cost-effective balance of strength and corrosion resistance, making it the preferred choice for most construction and industrial projects. For highly corrosive environments like chemical plants or long-term marine use, stainless steel wire rope is a better option, but at 3-5x the cost.

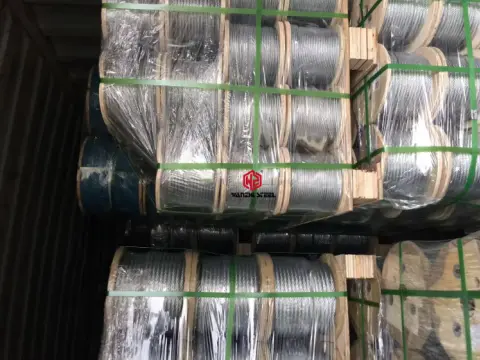

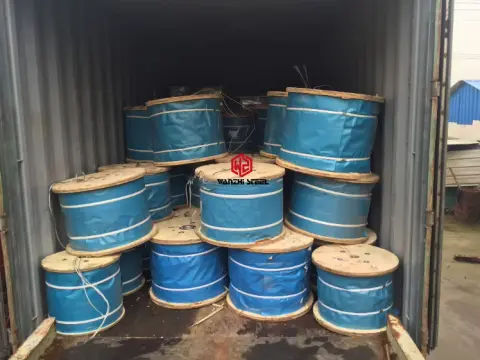

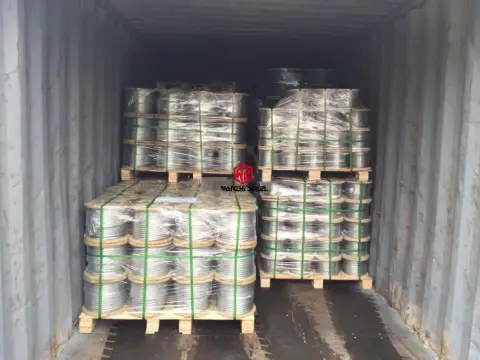

Successful Cooperation Cases

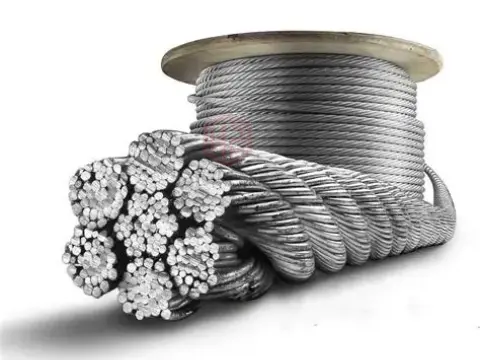

Wanzhi Steel – Galvanized Steel Wire Rope Manufacturer

We offer competitive galvanized steel wire rope prices for bulk orders, with flexible payment terms (TT 30% Advance + 70% Balance) and delivery options (FOB, CIF, EXW, CFR). Our standard delivery time is 15-21 days, with transportation by sea or land to ensure timely global delivery. Free samples are available for quality inspection, and we accept a minimum order quantity of 5 tons.



Why Choose Us?

• Proven performance – High tensile strength and stable load capacity for industrial, marine, and construction use.
• Durable protection – Galvanized surface resists rust and corrosion, extending service life in outdoor and humid environments.
• Flexible solutions – Complete standard specifications and custom options for diameter, structure, and length.
• Trusted factory support – ISO 9001 certification, full export documentation (HS code, IMPA code), and reliable global delivery.

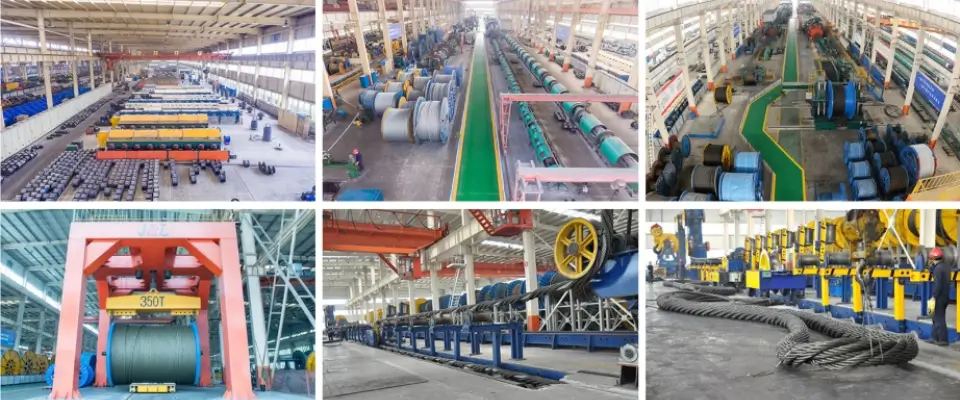

Wanzhi factory-Gi rope & cable manufacturer. Whether you need 8mm galvanized steel wire rope for construction, 10mm galvanized steel wire rope for marine projects, or PVC-coated galvanized steel wire rope for agricultural use, we have the right solution for you. With strict quality control, factory direct supply, and on-time delivery, Wanzhi Steel is your trusted partner for all galvanized steel wire rope needs.



Get samples or a bulk quote! Chat with Us Online,

or send an email to: info03@wanzhisteel.com







Wanzhi Steel is an ISO 9001-certified steel factory located in Hebei, China. It has been specializing in the production of Stainless Steel Wire Rope, galvanized steel wire, Stainless steel rope net, PVC Coated Wire Rope, Vinyl Coated Wire Rope, Stainless Steel Cable, Stainless Steel Handrail Cable, and Steel Strand for 14 years, with a monthly output of 1,800 tons. With high-quality products and good services, its products have been exported to more than 120 countries around the world.
