Steel Strand

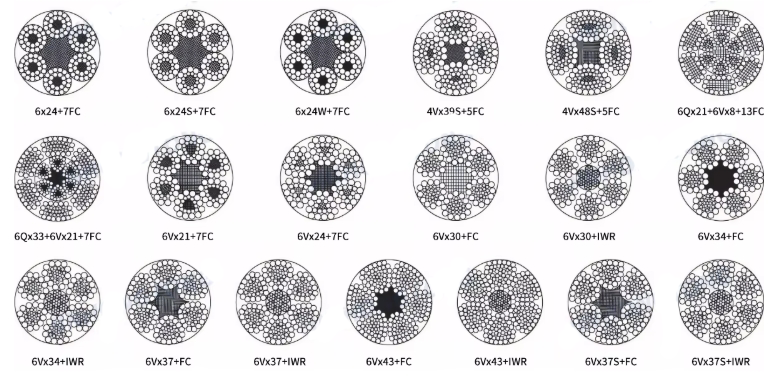

Structure: 1*7,1*19,7*7,6*19,6*7,6*12,18*17
Diameter: 1.5mm~57mm
Payment: T/T 30% Deposit
MOQ: 3 Tons
Steel Strand
Steel strand, commonly referred to as steel strand wire, is a critical material in modern engineering and construction. Composed of multiple steel wires twisted together, it is known for its exceptional strength, durability, and versatility. Wanzhi Steel produces steel strands of various structures. The factory stocks stainless steel, carbon steel, and other materials, and the length and diameter can be customized.
Q195 Carbon steel strand
Stainless Steel Strand
Steel strand Specification
| Item | Steel strand |
| Place of origin | Hebei, China |
| Surface | Galvanised, Powder coated, PVC/ Vinyl coated |
| Delivery Time | 15-21 days |
| Packing | Wooden Reel/coil/roll/Z2 Packing |
| Standard | GB/T5223, ASTMA421, BS5896, JISG3536, ISO6934, EN10138 |
| Tensile strength | 1470Mpa-1860Mpa |
| Length | 100m-2000m |
| Wire Type | Plain pc steel wire Spiral pc steel wire Indented pc steel wire |
| Type of Surface | Helix(screw), Plain, indented |
Performance And Advantages
Steel strand is widely recognized for its superior performance in demanding applications. It is a preferred choice in construction, transportation, and industrial sectors:
- High Tensile Strength: The steel strand is designed to withstand tremendous tensile forces. For example, 270 ksi steel strand (270,000 psi) is often used in high-stress applications such as bridges and high-rise buildings.
- Durability: Steel strand resists abrasion, fatigue, and environmental degradation, especially when coated or made of corrosion-resistant materials such as stainless steel.
- Flexibility: Despite its high strength, steel strands can be bent and formed, making it suitable for complex structural designs.
- Load-Bearing Capacity: The steel strand is capable of supporting heavy loads, which is why it is often used in steel strand cables for suspension bridges and steel strand ropes for lifting and rigging.
These properties make steel strands indispensable in applications where strength, reliability, and longevity are critical.
Galvanized Steel Strand
High Tensile-PC-Strand-Rope-Prestressed-Steel
Types of Steel Strand
- Steel Strand for Prestressed Concrete (PC Steel Strand): This type is specifically designed for use in prestressed concrete structures. It is tensioned before the concrete is poured, providing additional strength and reducing the risk of cracking. PC steel strand also called prestressed steel strand, is widely used in bridges, parking structures, and high-rise buildings.
- Steel Strand Cable: It is typically used in large construction projects and is critical for suspension bridges, cable-stayed bridges, and other structures that require high tensile strength and flexibility.
- Electro Steel Strand: This type is used for electrical applications due to its conductive properties. It is commonly used in transmission lines and other electrical infrastructure.
- Argon Steel Strand: Known for its high purity and oxidation resistance and is used in specialized industrial applications such as aerospace and precision engineering.
1×7 Prestressed Steel Strand Factory
Galvanized Steel Cable Packaging
- Galvanized Steel Strand: It is coated with a layer of zinc for enhanced corrosion resistance, making it ideal for outdoor and marine environments. It is also not an inexpensive alternative to stainless steel strands.
- Stainless Steel Strand: As the name implies, the material is stainless steel. Stainless steel strand has superior corrosion resistance to all materials and is highly resistant to corrosive environments. It can be exposed to chemical and marine environments.
- Steel Rope Strand: It consists of multiple strands of steel strands twisted together for excellent performance in lifting, rigging, and towing applications. Wire rope is a variant of cable that consists of metal wires and strands twisted into a spiral. Typically wire rope refers to cable that is at least 3/8 inch thick.
Uses
- Construction: Steel strand for prestressed concrete is widely used in bridges, buildings, and other infrastructure projects.
- Transportation: Steel strand cables are essential in the construction of suspension and cable-stayed bridges.
- Industrial applications: Electro steel strand and argon steel strands are used in specialized machinery and equipment.
- Marine and outdoor: Galvanized steel strands and stainless steel strands are preferred for this scenario.
- Lifting and rigging: Steel rope strand is used for cranes, elevators, and other lifting equipment.
Lifting boom
Suspension bridge rope
Elevator use
Steel Strand Material Grades
IPS: (Improved Plow Steel)
EIP (Extra Improved Plow Steel)
EEIP (Extra-Extra Improved Plow Steel)
Stainless steel and other specialty grades are available for special applications. Most strands are made from round wires. Triangular and shaped wires are used for special structures.
Typically, the higher the strength of the strand, the lower its ductility.

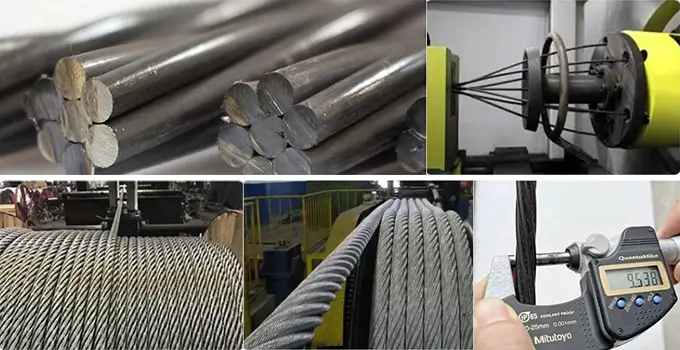

What are the production steps of steel strands?
Wire preparation
High quality wire rod (high carbon steel or low alloy steel) → pickling and rust removal → Multiple cold drawing by wire drawing machine → annealing → galvanizing/epoxy coating (optional)
Twisting steps
arranging a number of steel wires (usually 2-7) → twisting by stranding machine → pre-tensioning treatment → low temperature tempering (eliminating internal stress) → cooling → surface treatment (oiling/waxing/polymer coating) → cutting and winding → specification, model production batch marking
Steel strand winding machine
Quality Inspection
Wanzhi conducts strict diameter and strand pitch inspection on steel strands, tensile tests including tensile strength, elongation, and yield strength, as well as surface crack and scratch inspections, and salt spray tests (galvanized or coated steel strands).
Wanzhi production machine
40 60 90 Salt Spray Tester
Packing method
Wrap with moisture-proof paper, plastic film, or woven bag and secure with steel straps.
- Coil packing: rolled into coils and bundled with strapping tape.
- Spool Packaging: Larger quantities are wrapped around spools and placed in protective sleeves.
- Box Packaging: Smaller lengths are packed in boxes, usually with protective pads.
inner package
outer package
Steel Stand Price
Influencing factors
- High carbon steel, low alloy steel as the main raw material, if the use of stainless steel will increase the cost.
- Diameter, strength grade (e.g. 1570MPa, 1860MPa), structure (e.g. 1×7, 1×19) will affect the price.
- galvanized, coated with epoxy resin treatment process, can enhance the performance, but will increase the price.
Recommended application types and prices
The following is the reference range (the latest price is subject to the response of technicians)
- Ordinary stranded wire (without plating): $750-1050/tonne. Used for general construction, and bridge reinforcement.
- Galvanized steel strand: $900-1200/tonne. Outdoor or wet environment.
- High strength strand (e.g. 1860MPa): $1050-1350/tonne. Concrete structures, bridges, large-span buildings.
- Epoxy-coated steel strand: $1200-1500/tonne. Offshore or corrosive environment.
426 tons of steel strands shipped to Egypt
631 tons steel strand to Brzail
Why Choose Wanzhi Steel?
- High-quality materials: Our products are made of high-quality q195 q235 45 60 65 70 80 82b carbon steel and stainless steel materials, ensuring durability and reliability in a variety of applications.
- Galvanized coating: The galvanized coating has excellent corrosion resistance, which is ideal for harsh environments and can extend the service life of the steel strand.
- Customizable packaging options: We provide flexible packaging options including wooden rolls, coils, reels, and Z2 packaging to meet the special needs of customers.
- Wide range of uses: Our unbonded PC steel strands are suitable for a variety of production purposes, including construction, engineering, and infrastructure development.
- Quality certification: Our products comply with ISO 9001/BV standards, which ensures that clients get high-quality products that meet international standards.
