Galvanized Diamond Mesh

Galvanized diamond mesh is a strong and durable product you can rely on. It has a smooth surface and uniform openings. Also, it offers features like great flexibility, easy installation, and cost-effectiveness. So it is widely used in fencing, partitioning, window or gate, poultry netting, reinforcement, screening systems, etc. Wanzhi Steel supplies GI diamond mesh rolls & plates made of galvanized wire and galvanized sheet. We have different sizes and specifications in stock and accept customized solutions. Please feel free to contact us for more details!

Galvanised Diamond Wire Mesh

Diamond Stucco Mesh

Galvanized Diamond Mesh Specification

What Is Galvanized Diamond Mesh?

Galvanized diamond mesh is a kind of mesh with diamond opening holes. It is commonly made of carbon steel wire or galvanized wire. Plastic coating on its surface can form a PVC coated diamond mesh, it comes in various colors, such as black, green, white, and blue. The production method of GI diamond mesh can be divided into woven diamond mesh and expanded diamond mesh. Galvanized woven diamond mesh is made by automatic weaving machines, while expanded mesh is expanded or stretched in flat sheets. Considering its attractive appearance and durability, diamond wire mesh is widely applied in fencing, gates, windows, animal cages, decorative applications, etc.

chainlink mesh

GI expanded diamond metal lath mesh​

Why Should It Be Galvanized?

Actually, galvanizing is a kind of anticorrosive treatment. The zinc layer and the steel are metallurgically bonded, which forms a protective layer on the steel surface. Besides, galvanization, especially hot-dipped galvanizing provides full protection. Every part, even in recesses, sharp corners, and hidden places can be fully protected. Galvanizing costs less than other coatings. Moreover, the service life of galvanized wire mesh is more than 20 years without repair. Therefore, galvanized wire mesh is becoming popular.

Features of Galvanized Diamond Wire Mesh

• Structural characteristics: Made of low-carbon steel wire or steel plate, the grid structure is tight, with both strength and toughness. It is not easy to break or deform, and the bottom will not curl or sag, ensuring long-term stability.
• Corrosion resistance: Galvanizing improves the rust resistance, and the zinc layer isolates the air from moisture, extending the service life. It can be used in humid or corrosive environments.
• Safety protection: The tight diamond mesh design can not only block the invasion of small animals, but also maintain good ventilation. The elastic structure has a buffering force to prevent injuries.
• Easy installation: The product can be rolled into bundles for easy transportation and on-site cutting. Supports a variety of installation methods, such as direct fixing or use with a frame to meet different construction needs.
• Wide uses: Suitable for fences, guardrails, agricultural protection, building reinforcement, slope protection and other fields. Become an ideal choice for agriculture, industry, transportation and other industries.

Galvanized Diamond Mesh for Sale

galvanized Chain-Link-Fence

temp chain link fence

Uses of Galvanised Diamond Mesh

• Transportation: Used as guardrails on both sides of roads, railways, highways, and bridges to prevent vehicles, pedestrians, and animals from climbing over. Also used for protection of tunnel entrances and interiors to prevent rockfall.
• Agriculture: Can be used for chicken, duck, goose, rabbit, bird, and other poultry and livestock breeding fences, as well as animal fences in zoos. Protection around orchards and farmland.
• Construction: plastering projects of high-rise buildings, residential buildings, and factories, exterior wall insulation systems, ceiling materials, and also used for peripheral tensile protective nets. Heavy-duty galvanized diamond expansion nets can be used for scaffolding and platform pedals.
• Industrial field: Used as perimeter fences for factory machinery and equipment to prevent entry, and can also be used as internal area isolation for easy management. Used for railing nets to provide security.
• Municipal gardens: Common park fences, children’s playground fences, flower exhibition area fences, playground fences, basketball court fences, road green belt protection nets, river channels, slope protection nets to protect the stability of river banks and mountains.
• Filtration and screening: In the chemical, pharmaceutical, food, and other industries, it can be used to filter and screen various substances, and achieve precise filtration and separation according to different mesh sizes.
• Warehousing and logistics: It can be used for shelves and partitions in warehouses to improve space utilization and facilitate classification and management. It can also be used as anti-fall nets and anti-theft nets in warehouses to prevent falls or theft.

Sports Field Fence

galvanized chain link

Stucco wire mesh in construction

Galvanized Diamond Mesh Case

Shipping to Kenya

Why Use Diamond Wire Mesh in Slope Protection?

Diamond mesh is an ideal choice for river revetments and or slope protection. There are some advantages:
1. Its flexible structure can adapt to the change of the slope without being destroyed, which has better safety and stability than the rigid structure.
2. It has strong erosion resistibility, which can withstand the maximum flow speed of up to 6 m/s. Especially, the galvanizing process will prolong its service life.
3. The diamond network structure is more permeable so that the suspended matter and silt in the water can be deposited in the stone filling cracks. It is conducive to the growth of natural plants and the gradual restoration of the original ecological environment.

Slope Protection

Diamond Wire Mesh Use

Production process

Galvanized chain link mesh production process

• Material selection and pretreatment: Use low-carbon steel wire as raw material, and pre-treat by straightening. Or directly choose galvanized wire.
• Automatic feeding and cutting: Use automatic feeding equipment to feed the steel wire to the cutting device. Cut accurately according to size.
• Bending and combined ring: Feed into the bending forming equipment to form the basic shape of the chain link. Through the combined ring operation, the single chain link is connected into a continuous mesh structure.
• Galvanized treatment: If low-carbon wire is used as the raw material, this step will immerse the chain link mesh in molten zinc liquid to form a uniform zinc layer on its surface.

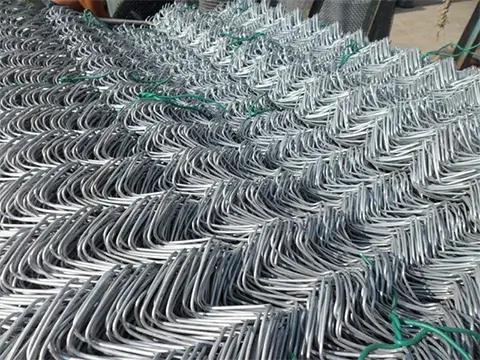

Bended iron wire

Galvanized Chain Link Mesh

0.5mm-2.5mm Supply- Export Packaging

Galvanized expanded Diamond mesh production process

• Material preparation: Use low-carbon steel plate or galvanized plate as raw material, and cut according to product specifications.
• Stamping and stretching: Put it into a large-scale precision steel plate mesh punching and shearing machine, and apply high pressure to the metal plate through the mold. First, evenly distributed holes are punched out on the metal plate, and then the hole diameter is expanded through the stretching equipment to form a specific mesh arrangement structure, so that the metal plate forms a metal mesh surface with diamond-shaped holes.
• Galvanizing: In order to improve corrosion resistance and appearance, a zinc protective layer is formed through hot dip plating process, which can be used outdoors or in high humidity environments.

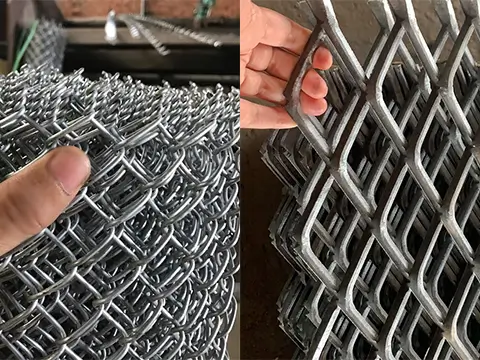

Galvanized Diamond Mesh Quality Check

• Quality inspection and packaging: Carry out quality inspection, including mesh size, mesh surface flatness, galvanized layer thickness and other indicators.

40 60 90 Salt Spray Tester

Tensile strength test

Quality Check

How to Find A Suitable Diamond Mesh?

• Clear purpose: Fence protection recommended mesh 50mm-100mm, wire diameter 2.0mm-4.0mm, breeding and agriculture recommended, mesh 25mm-50mm, wire diameter 1.2mm-2.0mm, industrial screening recommended mesh 10mm-25mm, wire diameter 0.8mm-1.5mm.
• Galvanizing process: Electro-Galvanised has low cost and thin zinc layer, Hot-Dip Galvanised has strong corrosion resistance and thicker zinc layer.
• Supplier: Make sure the product meets international standards such as ASTM/JIS/EN/, and if there is a customized service, don’t just look at the low price.
• Price: Compare FOB/CIF quotations, consider freight and tariff costs. Bulk purchases can reduce unit prices, and it is recommended to plan the amount in advance.

In Stock

Packaged chain link fence

Expanded metal mesh sheet Supply

Galvanized Diamond Mesh For Sale

Wanzhi Steel wire meshes are available in different mesh sizes, wire diameters, mesh apertures, materials, and shapes. Our galvanized diamond wire mesh is durable and flexible to use, which makes it a cost-effective solution for fencing, slope stabilization, animal netting, etc. Whatever you are looking for, you will find it here at Wanzhi Steel. Also, we will provide you with a factory-direct sales price.
