Galfan Wire
Galfan coated steel wire
Galfan wire is a steel wire protected by a zinc-aluminum alloy coating, the coating composition is usually 95% zinc and 5% aluminum. The coating combines the corrosion resistance of zinc and the oxidation resistance of aluminum, making Galfan wire perform well in harsh environments. It is used in construction, agriculture, transportation, electricity, etc. It is a high-performance metal material.
– Coating: Zinc 95%, Aluminum 5%, or Al 10%, Zn 90%
– Diameter: 1.2-5.5MM (BWG6-BWG34)
– Coil Weight: 5kg,10kg,25kg,50kg, or customized
– Shipment: Sea freight, air freight
– Delivery: 8-18 Days
– MOQ: 5 Tons
| Inquire Online | ✉ Send Emai |
Galfan Wire Specification
| Item | Galfan Wire |
| Material | Q195/Q235/SAE1006/SAE1008 Low Carbon metal Wire |
| Origin | Hebei, China |
| Surface treatment | Hot dipped Zinc-aluminum |
| Processing Service | Welding, Bending, Cutting, Woven |
| Use | Binding, Baling Wire, nails, gabion, woven wire mesh, welded mesh, construction |
| Color | Silver |
| Technique | Hot rolled |
| Variety | Soft wire, hard wire, spring wire, electrode wire |
| Packing | Spool/Coil |
| Sample Service | Availiable |
| Type | Single Loop tie, double loop tie, U-type, straight cut |
| Delivery Term | FOB, CFR, CIF, EXW |
| Payment Terms | T/T (30% Deposit) |
Weight calculation formula
(3.14 × diameter (mm)² × length (m) × 7850kg/m³) / 4 = Weight
Note: The diameter is in millimeters and the length is in meters.
Chemical composition
Base material (low carbon steel wire)
Q195, Q235, SAE1006, and other brands of low carbon steel wire, maintain plasticity and toughness.
Galfan coating (zinc-aluminum alloy)
It is composed of about 95% zinc, 5% aluminum, and a small amount of rare earth elements. It provides excellent corrosion resistance and comprehensive performance. Wanzhi Steel accepts customized coating
Coating 5% aluminum 95% Zn
Coating 10% aluminum 90% zinc
Features
Tensile strength: 350~550N/mm², can withstand large tensile force, and can be competent for high-strength and load-bearing applications.
Excellent corrosion resistance: Galfan wire is 2-3 times more corrosion-resistant than ordinary galvanized steel wire in corrosive environments such as moisture and salt spray.
Good ductility and toughness: Can adapt to various complex processing such as winding, bending, and installation requirements.
Economical: Although the initial cost is higher than ordinary galvanized wire, it has a long life and extremely low maintenance cost, and has a high overall cost-effectiveness.
Welding performance: Can withstand larger currents, the welding points are more solid, and the overall stability of the product is high.
2mm/2.5/6/8mm High Carbon Iron Wire
galfan steel wire
Hot Dip Galvanized Aluminum Alloy Wire
Use
Galfan Wire (zinc-aluminum alloy coated steel wire) is widely used in many fields due to its excellent corrosion resistance and mechanical properties. The following are some of the main application scenarios:
1. Water conservancy projects: Gabion mesh and gabion mesh made of Galfan Wire have both permeability and anti-scouring capabilities, and are used in river bank consolidation and flood control and slope protection projects. Its permeable structure allows plant roots to penetrate and achieve ecological restoration.
2. Flexible protective structure: used to make Reno pads, gabion cages, and other products to resist flood scour.
3. Fence: can be woven or welded into livestock and poultry fences, or vegetable gardens, orchards and farm fences to provide safe isolation.
4. Building materials: suitable for binding and fixing the surface of structures such as bridges, frames, and power towers, roof tops, carbon steel nails, fence nails, bolts and nuts, screws and coils, etc.
5. Harsh environment protection: serves equipment protection in the fields of chemical industry, power, marine exploration, etc., and can be used for long-term protection of power facilities and marine equipment after plastic coating.
6. DIY: Used to make cage bottom nets, handicrafts, etc. Its corrosion resistance can extend the service life of facilities and reduce maintenance costs.
7. Transportation and safety: Used for protective nets and guardrails of transportation facilities such as highways and railways.
galfan wire rope
galfan coated welded wire mesh
Game Fences for Farms
Recommended coating applications
Choose ordinary Galfan wire
General construction and agricultural use. Such as fences, fences, and gates.
Choose high-strength Galfan wire
Used for bridge cables, power transmission lines, etc.
Heavy duty coating Galfan wire
Extremely corrosive environments, such as marine engineering, chemical equipment, etc.
Production Process
Low carbon steel wire rod → drawing into wire → pickling → phosphating → hot dip galvanized aluminum alloy → cooling → curing → straightening → cutting → winding → packaging
1. Raw material preparation: select high quality low carbon wire rod as the base material.
2. Surface treatment: pickling and phosphating the steel wire to remove the oxide layer and impurities.
3. Hot dip galvanized aluminum alloy: immerse the steel wire in the molten zinc-aluminum alloy liquid, and control the dipping time and temperature.
4. Cooling and curing: ensure the stability and adhesion of the coating.
5. Post-processing: drawing, straightening, cutting, and other processing as needed.
Steel Wire Rod for Sale
galfan wire manufacturers

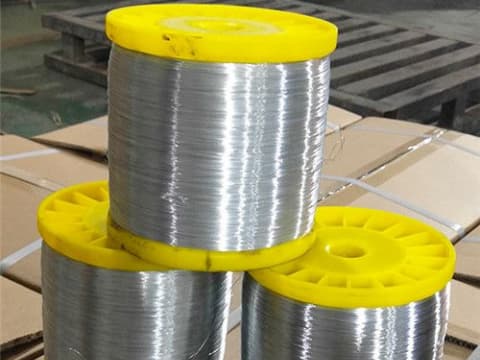

Zinc-aluminum coated iron wire
Wanzhi Steel Galfan wire Case
Galvans Standard Packaging
322 tons of Galfan Wire shipped to Kyrgyzstan
322 tons of Galfan Wire shipped to Kyrgyzstan
Wanzhi Steel QC department
Before leaving the factory, the Galvan wire will pass strict quality inspection. Wanzhi Steel will use magnetic thickness gauge to detect the weight per unit area of the coating, use spectrometer to verify the zinc-aluminum ratio, coating adhesion test, tensile strength, elongation, bending performance test, salt spray test, damp heat test, actual environmental exposure test. Check the diameter tolerance, surface defects, packaging and labeling, etc., and accept third-party quality inspection at any time.
Tensile strength test
40 60 90 Salt Spray Tester
Price
The price of Galfan wire is affected by factors such as coating thickness, wire diameter, and market supply and demand.
Generally speaking, the price of Galfan wire is 20%-30% higher than that of ordinary galvanized steel wire, but due to its excellent performance and long life, the overall cost-effectiveness is higher.
If the budget is sufficient, it is recommended that you choose it.
Galfan Zinc Coated Galvanised Wire
Q235 q195 high tensile galfan coated wire
galfan fence wire Supplier
China galfan wire manufacture- Wanzhi Steel
Wanzhi Steel provides astm a641 a641m, SAE1040, SAE1045, SAE1070, SAE1080 standards, Q195, Q235, 45#60#65#70#80#82B grade Galfan wire, zinc-aluminum alloy wire, and provides additional value-added services such as braiding, welding, plastic coating, and powder coating, Provide factory direct prices.
Get samples or a bulk quote! Chat with Us Online,
or send an email to: info03@wanzhisteel.com
Wanzhi Steel is an ISO 9001-certified steel factory located in Hebei, China. It has been specializing in the production of galvanized wire, SS wire, low carbon wire, spring wire, PVC Coated Galvanized wire, Cold drawn wire, GI stitching wire, Baling Wire, and high tensile wire for 14 years, with a monthly output of 1,800 tons. With high-quality products and good services, its products have been exported to more than 120 countries around the world.
