Chain Link Mesh
Hole size: 50x50mm, 60x60mm, 75x75mm, etc.
Height: 1.2m, 1.5m, 1.8m, 2.0m, 2.4m, etc.
Length: 10m, 20m, 50m, 100m
Color: Silver, Green, Black, White, Gray, Yellow
Chain Link Mesh
Chain Link Mesh (also known as diamond mesh or cyclone mesh) is a high-strength, corrosion-resistant metal mesh material, crocheted with high-quality galvanized steel wire or stainless steel wire, with the characteristics of flexible structure and strong impact resistance. It is widely used in sports field fences, industrial park protection, animal cages and slope reinforcement. The open mesh is both light-transmitting and ventilated, and supports PVC coating to enhance weather resistance. Wanzhi Steel provides cost-effective Chain Link Mesh protection solutions. We stock regular mesh chain link mesh with full wire gauge, support customization, welcome to contact us to learn more.
1.5 Inch galvanized chain link mesh
Heavy duty 8 ft 6ft Chain Link mesh
Chain Link Mesh Specification
| Item | Chain Link Mesh |
| Place of Origin | Hebei, China |
| Delivery Time | 15-21 days |
| Usage | Garden Fence, Highway Fence, Sport Fence, Farm Fence |
| Surface treatment | Galvanized, PVC coated, Vinyl coated |
| Steel Grade | Q195/Q235/SAE1006/SAE1008 |
| Wire diameter | 2mm-5mm |
| Standard | AISI, ASTM, DIN, JIS, GB, EN |
| Payment term | TT 30% Advance + 70% Balance |
| Sample | Free Available |
| Price Item | FOB, CIF, EXW, etc |
| Packing | Standard export packaging |
| Certification | ISO 9001, SGS, ABS, BV |
| MOQ | 5 Tons |
| Transportation | By sea, by land |
Material Type
- Low Carbon Steel: Economical and suitable for general fencing needs, but requires surface treatment to prevent rust.
- Galvanized Steel Wire: Hot-dip galvanizing or electro-galvanizing process to improve corrosion resistance, suitable for outdoor environments.
- Stainless Steel Wire: Made of 304/304L/316/316L/430 stainless steel, it has strong corrosion resistance and is suitable for high humidity or chemical environments.
- PVC Coated Wire: PVC plastic layer is wrapped around the outer layer of galvanized steel wire to provide additional anti-corrosion protection and aesthetic effects.
Stainless steel chain link mesh
PVC coated chain link mesh
Galvanized chain link net
Common wire gauge
- 16,18, 20 Gauge: The wire diameter is relatively thin, about 1.6 – 2.6mm, the mesh is small, 50mm×50mm or smaller, light weight, softer, and low cost.
- 12,14 Gauge: The wire diameter is moderate, between 2.8 – 4.0mm, and the mesh is 75mm×75mm to 100mm×100mm. It has certain strength and rigidity, can withstand certain external impact, and can maintain a good field of vision.
- 6,8,10 Gauge: The wire diameter is relatively thick, about 4.8 – 6.4mm, and the mesh is mostly 125mm×125mm or larger. High strength, durable, and strong anti-destruction ability. Good stability and heavier.
Popular colors
- Green: Most commonly used, blends in with the natural environment, and has the most choices.
- Black: Modern style, suitable for high-end places, and the selection ratio is second only to green.
- Blue: Sports field, school fence, trendy design.
- Yellow: Warning purposes, such as construction site fencing and temporary fencing.
- White: Simple and versatile, it gives people a clean and tidy feeling and is suitable for the isolation of creative parks.
PVC coating, vinyl coating, and powder spraying technology can achieve a variety of color customizations.
Popular colors of chain link mesh
Surface treatment type
To enhance the weather resistance and aesthetics of chain link mesh, common surface treatment methods include:
- Hot-Dip Galvanizing: The steel wire is immersed in molten zinc to form a thick zinc layer, providing long-term anti-rust protection.
- Electro-Galvanizing: Galvanizing by electrolysis, the zinc layer is thinner, suitable for short-term anti-rust needs.
- PVC Coating/Vinyl Coating: You can choose green, black, gray, and other colors, which has both anti-corrosion and decorative functions.
- Powder Coating: Provide a variety of color options to enhance weather resistance and aesthetics.
Features & Benifits
- High structural strength: It is composed of continuous wavy transverse links, also called Cyclone fence, with a stable diamond grid. Provides high tensile strength and load-bearing capacity.
- Flexible and customizable: It rebounds quickly after impact. Wanzhi Steel allows the size and shape of the grid to be adjusted according to needs, and supports the adjustment of the mesh size.
- Corrosion-resistant and durable: It is usually galvanized, stainless steel or coated to enhance corrosion resistance and extend service life, suitable for outdoor or humid environments.
- Lighting and ventilation: The grid structure does not block the line of sight and is suitable for occasions where visual transparency needs to be maintained, such as fences, safety nets or decorative applications.
- Easy installation: It is light in weight, easy to transport and install, and can be quickly connected through a variety of fixing methods (such as hooks and loops, welding or bolts).
- Economical: Compared with mesh structures of other materials, this material has a lower cost, simple maintenance, and high overall cost performance.
vinyl coated chain link fence
White pvc coated chain link mesh
Yellow Vinyl Chain Link Fence
Chain link mesh Export Case
Green and Black PVC coated chainlink mesh expoted to Iran
Yellow and white PVC coated chain link fence shipped to Iran
Galvnized chain link mesh Shipping to Kenya
Uses
Use in different fields
- Residential fence: protects private courtyards and gardens, provides clear vision, convenient and safe.

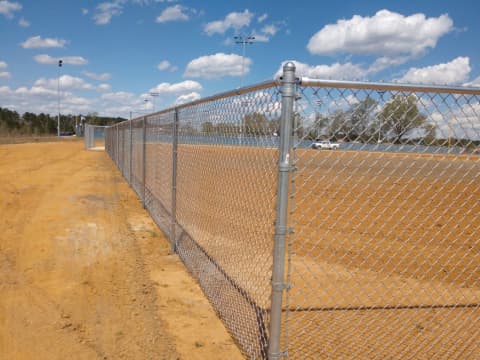

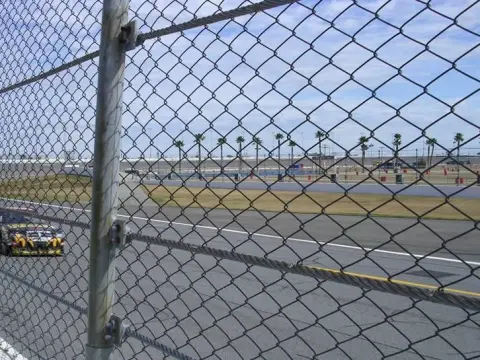

- Sports field fence: football fields, basketball courts, tennis courts, etc., with high resilience and not easy to get hurt by impact.
- Industrial protection: factory, warehouse, construction site fence. Easy to install and disassemble, lightweight, and convenient.

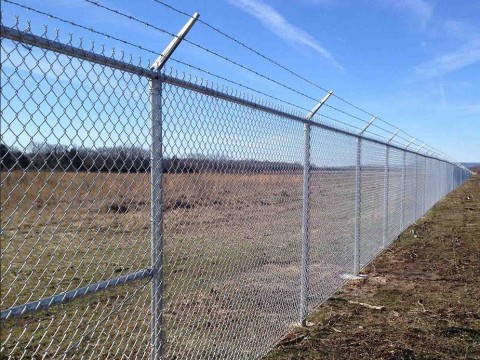

- Agricultural fence: farm, orchard protection. To facilitate regional division and prevent invasion by invaders.

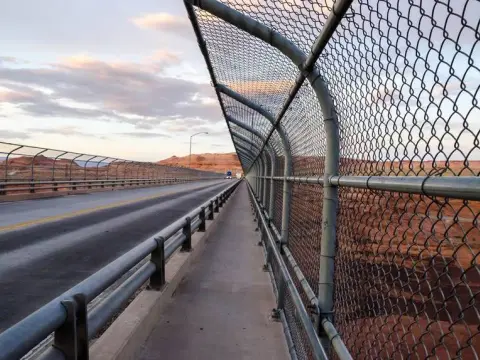

- Public facilities: security fences for schools, parks, airports, prisons, etc. The height can be customized to achieve heavy and high-risk protection.
Applications of 16,18, 20 Gauge chain link mesh
- Widely used in gardening and agriculture, such as garden fences and vegetable garden protection nets, to prevent small animals from entering without affecting the lighting and ventilation of plants.
- As a material for small pet cages, it provides a safe activity space for pets.
- Used for some indoor partitions that do not require particularly high protection, it plays a certain role in separation and decoration.
black chain link fence post
Chain Link Fence Uses
Applications of 12,14 Gauge chain link mesh
- General site fences, such as school playgrounds, small parking lots, and boundary fences of residential areas, play a role of isolation without being too closed.
- Used to divide different work areas in industrial sites, or as simple protective fences for warehouses.
- Temporary construction site enclosures will use medium-gauge wire mesh, which is easy to install and can meet basic protection needs.
Applications of 6,8,10 Gauge chain link mesh

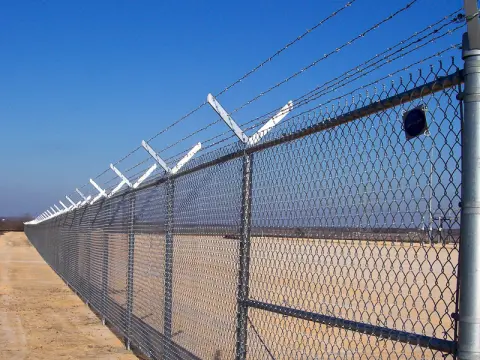

- Used in places with high security requirements, such as prisons, detention centers, military bases, etc., to effectively prevent people from climbing over and destroying the walls.
- The perimeter protection of large industrial plants and mines can block large animals or illegal intruders.
- The thicker wire gauges is used in outdoor places that require long-term use and strict protection performance, such as fences in garbage disposal sites and large logistics parks.
Black PVC Coated Chain Link Fence
galvanized steel chain link gate
Production process
- Raw material preparation: First, pull the steel wire rod to the required diameter of the wire.
- Surface treatment: galvanizing, PVC coating, or spraying.
- Weaving: The metal wire is woven into a diamond mesh structure by Wanzhi Steel’s fully automatic machine.
- Cutting and winding: Cut into sheets or rolls according to customer requirements.
- Quality inspection and packaging: Hardness test, coating adhesion test, zinc layer thickness test, salt spray test, tensile test. Packing after passing the test.
Metal Wire Rod Wanzhi facroty
304 SS chain link mesh production
black chain link fence for sale
Factory quality inspection
✔ Size inspection: whether the mesh size and wire diameter meet the standards.
✔ Coating inspection: zinc layer thickness (≥50μm) or PVC coating adhesion test.
✔ Tensile strength test: ensure that the strength of the metal wire meets the standards.
✔ Appearance inspection: no broken wire, rust, deformation, or other problems.
✔Hardness test: Pencil hardness test (≥2H).
✔Adhesion test: Cross-cut test to ensure that the coating does not fall off.
✔Corrosion resistance test: Salt spray test (≥500 hours without rust).
PVC Coated Chain Link Mesh
40 60 90 Salt Spray Tester
Tensile strength test
Wanzhi Steel Storage and Packaging
Chain link mesh passed quality inspection
0.5mm-2.5mm Supply- Export Packaging
Chain Link Mesh For sale –Wanzhi Steel
✅ 14 years of industry experience, focusing on high-quality chain link fence production.
✅ Advanced production lines to ensure product consistency and durability.
✅ Strict quality inspection, in line with international standards (ISO 9001, ASTM).
✅ Customized service, supporting different specifications, colors, and fence post requirements.
✅ Global countries shipping, providing sea, air, and land transportation solutions. MOQ: 120 rolls/5 tons.
Chain link mesh is an economical, durable fencing solution suitable for a variety of scenarios.
