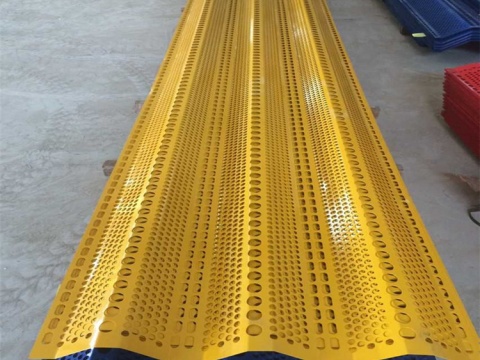

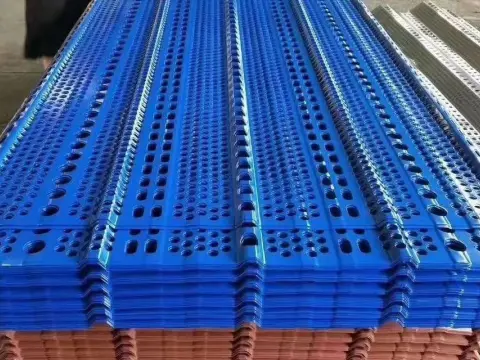

Windbreak Fence Panel

Windbreak fence panels are mesh panels designed to block wind and suppress dust. Featuring perforated surfaces, they effectively dissipate wind energy, breaking strong gusts into gentle breezes to achieve wind reduction and dust suppression rates of up to 65%-85%. Constructed from high-strength galvanized steel or stainless steel, they offer superior corrosion and weather resistance with a lifespan exceeding 10 years. These panels provide an environmentally friendly and cost-effective solution for ports, power plants, coal mines, and highway applications.

 Specification

Item	Windbreak fence panel
Place of Origin	Shandong, China
Standard	AISI, ASTM, BS, DIN, JIS, GB, EN

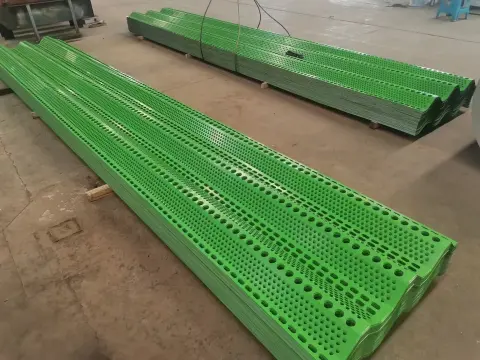

Surface Treatment	Electrostatic powder coating, paint roller coating
Color	Blue, red, orange, green, yellow
Perforation Pattern	Circular, oval, rectangular
Hole Diameter	6mm – 10mm
Hole Opening Ratio	30% – 40%
Type	Single-peak/double-peak/triple-peak/five-peak windbreak net
Sample	Free Available
Payment term	TT 30% Advance + 70% Balance
Price Item	FOB, CIF, EXW, CFR, etc
Packing	Standard export packaging
Certification	ISO 9001, SGS, ABS, BV
MOQ	10 tons

Features

• Effectively blocks the hazards of strong winds and dust storms, maximizing mitigation of their impact and preventing secondary dust dispersion.
• Steel construction ensures high strength and resistance to bending, while zinc or color coatings provide acid/alkali resistance and UV protection, guaranteeing safety and reliability in diverse environments.
• Requires no additional maintenance after initial installation, reducing long-term operational costs. Easy to clean and cost-effective.
• Highly customizable options include panel thickness, aperture size, aperture shape, and surface color, with lengths up to 8 meters for exceptional flexibility.

Application

1. Industrial Stockpile Dust Control Fencing

Used in open-air stockyards at ports, power plants, steel mills, and coal mines to effectively prevent dust dispersion and cargo damage caused by coal, mineral powder, and other materials. A critical facility for environmentally sound production and minimizing material loss.

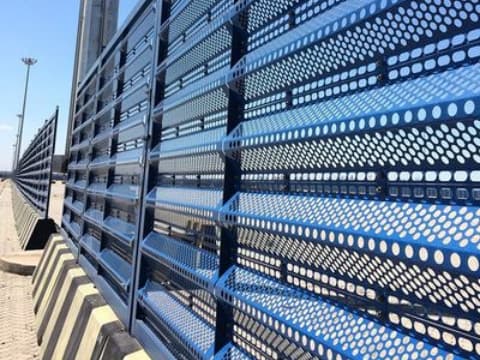

2. Public Facility Windbreak Fencing

Deployed along railways, highways, and large construction sites to prevent sand and dust accumulation that could bury tracks and improve visibility. Serves as construction site barriers to control dust emissions.

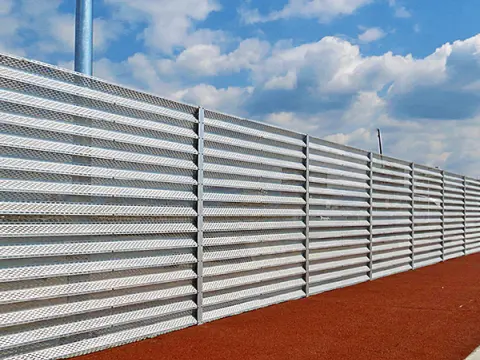

3. Outdoor Isolation Fencing

Serves as an environmental barrier around waste treatment plants and mining areas, controlling noise and odor dispersion to improve residential living environments. Also functions as windbreak netting for outdoor sports stadiums and open-air recreation zones.

What are the Types?

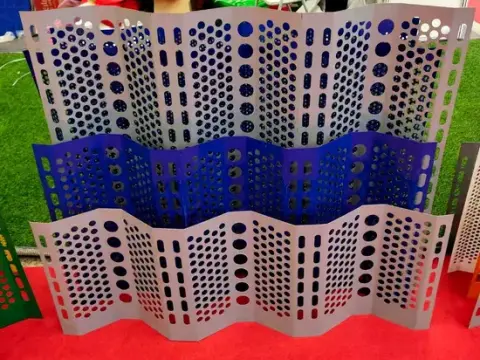

Ⅰ. Classified by Structural Peak Type

(1) Flat windbreak fence panel: Features a clean appearance and easy fabrication, offering the lowest cost. Suitable for decorative or light-load scenarios with minimal wind resistance requirements.

(2) Single-peak windbreak net: Simple structure with continuous waveform. Cost-effective for areas requiring moderate windbreak height.

(3) Double-peak windbreak net: Features two consecutive peaks for enhanced rigidity and superior wind resistance compared to single-peak models. One of the most widely used types.

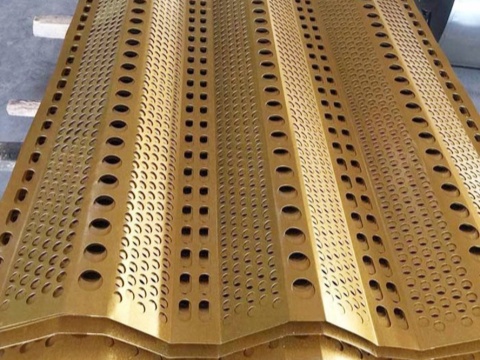

(4) Triple-peak windbreak net: More complex structure with three wave peaks, offering superior overall rigidity and stability. Commonly used in wind corridors or high-wind regions.

(5) Five-Peak Windbreak Netting: Features five continuous peaks, delivering maximum structural strength and wind pressure resistance. Specifically engineered to withstand extreme winds and for super-large-scale projects.

Ⅱ. Classified by Material and Craftsmanship

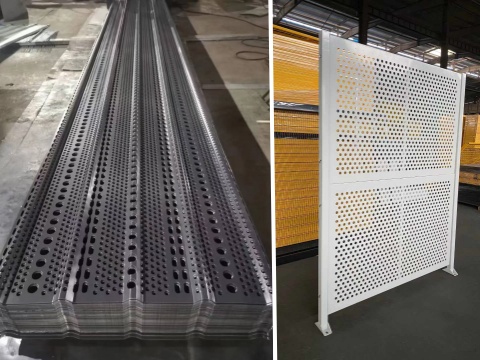

1. Galvanized Steel Windbreak Mesh Sheet

Made from galvanized steel coil as the base material, it offers excellent rust resistance and is an economical and practical choice.

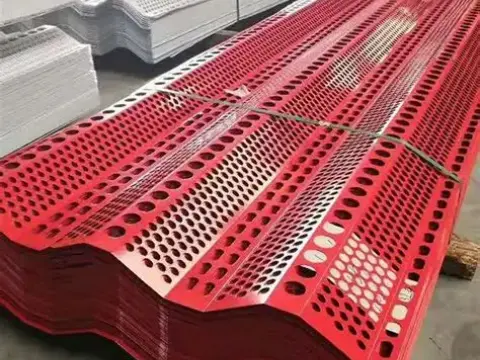

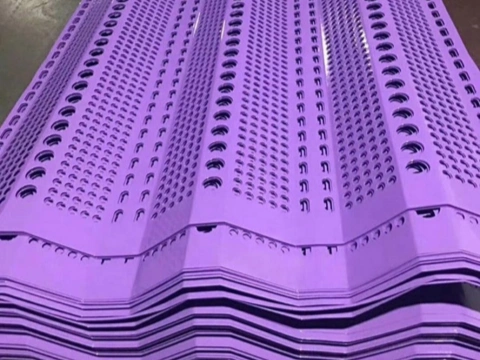

2. Color-Coated Steel Windbreak Mesh

Features a decorative coating (e.g., PE/PVDF/SMP/HDP) over galvanized steel, enhancing corrosion resistance while adding aesthetic appeal.

3. Stainless Steel Windbreak Mesh

Constructed from 304 or 316 stainless steel sheets, offering exceptional corrosion resistance and longevity, ideal for highly corrosive environments.

How do I calculate how much I need to buy?

The number of windbreak panels is not determined by the ground area, but rather by the area of the “wind wall” that needs to be shielded.

1. How much area is needed?

For an area with a perimeter of 1000 meters, single-sided installation, and a height of 8 meters:

Windbreak panel area = 8 meters (height) × 1000 meters (length) = 8000 square meters.

2. How many panels are needed?

Using a single panel size of 2.5 meters in length and 1.0 meter in width as an example. Each panel covers an area of 2.5 square meters.

Total panels = 8000 square meters ÷ 2.5 square meters/panel = 3200 panels.

3. Weight estimation

Assuming steel density of 7.85 kg/m³/mm and thickness of 0.8 mm.

Single panel weight ≈ 2.5 m² × 0.8 mm × 7.85 kg/m³/mm ≈ 15.7 kg.

Total weight = 3,200 panels × 15.7 kg/panel ≈ 50,240 kg (Approx. 5 tons).



Therefore, you must purchase at least 5 tons.

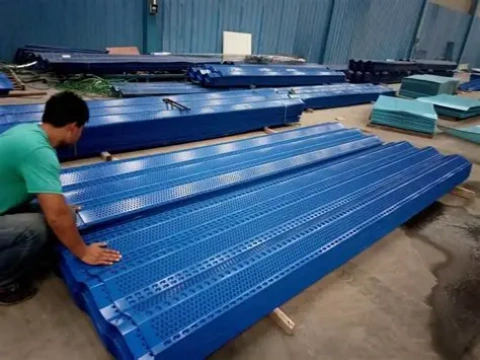

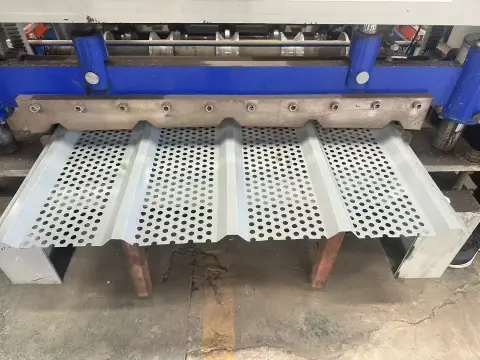

Windbreak fence panel Manufacturer -Wanzhi Steel

• Full Range Models: Specializing in the production of windbreak nets from single-peak to five-peak configurations and flat-panel designs, catering to diverse wind protection requirements.
• Deep Customization: Supports comprehensive, flexible customization of materials, thicknesses, dimensions, and colors to precisely match project specifications.
• Superior Quality: Utilizing premium base materials and advanced anti-corrosion processes, ensuring robust durability with a lifespan exceeding 10 years.
• Robust Production Capacity: Possessing end-to-end capabilities from design to manufacturing, guaranteeing stable supply and rapid delivery for large-volume orders.
