PVC Coated Hardware Cloth

PVC coated hardware cloth offers a versatile and economical option for many applications, such as rabbit fences, gutter guards, vegetable gardens, and much more. Besides, the plastic coating makes it more corrosion & weather-resistant and also offers more color options, such as green, black, etc. At Wanzhi Steel, our hardware cloth is available in a large range of gauges and sizes to meet your needs. Welcome to contact us for more details!

Green PVC Hardware Cloth

PVC Coated Hardware Cloth for Sale

Vinyl Coated Hardware Cloth Specification

Green PVC Hardware Cloth

Black PVC-coated Hardware Cloth

What Is Plastic Hardware Cloth?

PVC coated hardware cloth is kind of steel wire mesh with square or rectangular grids. At Wanzhi Steel, the PVC hardware cloth is made of galvanized steel wires and then be coated with vinyl. The double coating provides excellent rust resistance and long service life. Moreover, it can be easily cut with scissors, molded or folded as needed.

Popular Color

Popular Color

Advantages & Features

Its core advantages are corrosion resistance, strong weather resistance, low maintenance cost and various colors. The main features are as follows:

• Super strong rust resistance: PVC coating effectively isolates metal from air and moisture, significantly reduces the risk of oxidation and corrosion, and prolongs service life.
• Excellent weather resistance: UV resistance, high and low temperature resistance, not easy to age or fade, and long-term stable performance.
• Strong structure: The base material is low-carbon steel wire, and stainless steel wire can also be used. It has high strength and tensile resistance and is not easy to deform or break under large external forces.
• Various specifications: The mesh size, wire diameter, width and length can be customized according to needs to adapt to various scenes.
• Rich colors: Green, black, white, blue, red, gray, etc., are popular choices to meet decorative or concealed needs.
• Beautiful and easy to maintain: The welding grid is uniform, smooth and flat without burrs, avoiding scratches, uniform color, simple rinsing to remove dirt, and easy to clean.
• Convenient installation: Light and soft, easy to cut and bend, and adapts to complex terrain or structure. It can be quickly fixed by welding and binding to shorten the construction period.
• Economical and practical: lower cost, no need for frequent replacement or maintenance during long-term use, high overall cost performance.

PVC Coated Hardware Cloth

Black PVC Hardware Cloth

Applications

1. Construction: Making fences, fencing and safety nets, such as fences for residential areas, industrial areas, agricultural land and public facilities. As well as plaster, ceiling and tile installation, gutter protection.

2. Agriculture and animal husbandry: poultry cages, rabbit fences, bird cages, chicken coops, duck pens, rabbit cages, pig pens and livestock fences. It can also drive away snakes, gophers, skunks and chipmunks.
3. Gardening: Boundaries or demarcations of sidewalks, garden paths, compost fences, plants and flower beds, vegetable gardens, etc., plant climbing frames, support nets and flower racks.
3. Industry and manufacturing: It can be used for industrial equipment such as particle screening and liquid filtration. It can also be used as a protective net to isolate dangerous machinery.
4. Home and decoration: curtains, screen doors, or as protective nets and anti-fall nets for windows, balconies and stairs. It can also be used as arch screens, partitions, decorative walls, storage baskets.
5. Water treatment: It can be used for grilles and filters in sewage treatment plants, and can be used to build artificial wetlands, ecological floating islands and other river management projects.
6. Traffic and transportation: It can be used with columns as isolation fences for roads and railways, and can also be used to fix truck cargo.

Vinyl Coated Welded Mesh Roll Fence

Sports Fencing

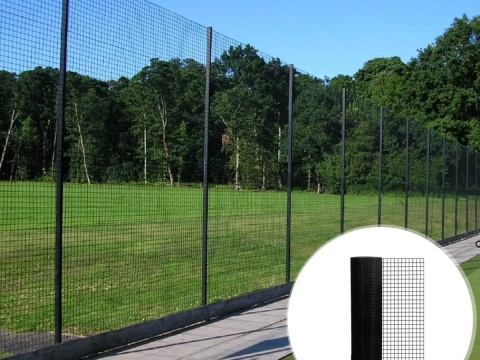

black vinyl coated hardware cloth fence

Production process

The production process mainly revolves around the two major links of “metal mesh base preparation” and “PVC coating treatment”.

1. Material selection & wire drawing: Low-carbon steel wire rod or 304/316 stainless steel wire rod is commonly used. The metal bar is cold drawn to the specified diameter by a wire drawing machine.

2. Welding & forming: The warp and weft steel wires are welded at the intersection by resistance welding or argon arc welding to form a regular mesh. Use a fully automatic mesh welding machine to accurately control the mesh spacing and weld strength.

3. Preliminary treatment: leveling, eliminating welding stress through a roller machine to make the mesh surface flat; cutting into rolls or sheets according to specifications for subsequent processing.

4. Surface cleaning & activation: immerse in acid washing solution or alkaline washing solution to remove oil and rust, rinse with clean water, and dry thoroughly in a drying furnace.

Metal Wire Rod Wanzhi facroty

production line of spring steel wire

2mm stainless steel welded mesh

5. PVC coating: Two common processes are dipping and spraying. The former immerses the metal mesh into a molten PVC powder tank, and the powder melts and adheres when heated; the latter uses electrostatic spraying equipment, and the PVC powder is charged and adsorbed on the surface of the metal mesh, and then sent into a curing furnace to melt the powder into a film, and then forms a coating after cooling.
6. Post-processing & quality inspection: remove excess slag from the edge of the coating, and check the coating adhesion, thickness uniformity and mesh deformation.

Wanzhi Steel – A Reliable Hardware Cloth Supplier

• Advanced equipment: 10+fully automatic galvanizing/PVC coating production lines, imported high-speed weaving machines (accuracy ± 0.05mm), online X-ray coating thickness gauges.
• Capacity scale: Annual output: 500000 tons of galvanized steel wire mesh, 300000 tons of PVC coated plastic mesh, stock available: 100+ types of mesh/wire diameter combinations.
• Quality system: ISO 9001, CE, SGS international certification, testing: salt spray test (1000+ hours), tensile strength test, cold bending test.
• R&D capability: Professional materials laboratory, supporting customized alloy coatings (such as Zn-5% Al).
• Service advantages: 48 hour sampling, support OEM/ODM, core products include galvanized garden mesh, chain link guardrail mesh, livestock fence, and global logistics.

welded wire fabric

Vinyl-coated Hardware Cloth

PVC Coated Hardware Cloth For Sale Here

Vinyl coated hardware cloth is lightweight and easy to cut with scissors. But it also has a sturdy structure that offers a versatile and economical option for a wide range of applications. Wanzhi Steel offers a variety of hardware cloth in different materials, hole shapes, and sizes to fit your unique situations. Moreover, quantity discounts are available for multiple roll purchases.

Get samples or a bulk quote! Chat with Us Online,

or send an email to: info03@wanzhisteel.com

Wanzhi Steel is an ISO 9001-certified steel factory located in Hebei, China. We specialize in the production of PVC coated chicken wire,  GI Welded Wire Mesh, PVC Coated GI Wire Mesh, GI Square Mesh, Black welded wire fence, SS steel mesh roll for 14 years, with a monthly output of 1,800 tons. With high-quality products and good services, its products have been exported to more than 120 countries around the world.
