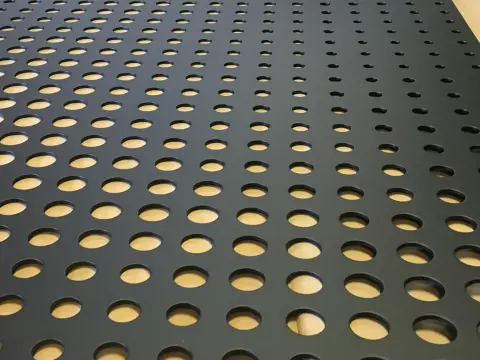

MS Perforated Sheet is an MS plate (mild steel perforated sheet) with circular, square, diamond, or other shaped holes on the surface. It has many advantages, such as reducing weight, increasing air permeability, improving sound absorption capacity, etc. Therefore, they are widely used in construction, decoration, filtration, sound absorption, and other fields. It has the strength and flexibility of both steel wire and steel plate. It is not only as light-permeable, water-permeable and breathable as metal mesh, but also maintains the rigidity and wear resistance of steel plate. Wanzhi Steel has a large inventory of conventional low-carbon perforated plates. The hole diameter, hole spacing, and plate thickness can all be customized. If you would like to learn more, please contact us.

MS Perforated Sheet Specifications

Item	MS Perforated Sheet
Place of Origin	Hebei, China
Delivery Time	10-18 days
Standard	AISI, ASTM, DIN, JIS, GB, EN
Material	Q195/Q235 carbon steel
Processing Service	Welding, Cutting, Punching
Thickness	0.5mm-10mm
Width	100 mm -1500mm
Length	2000 mm /2440mm/3000 mm
Hole shape	Round, square, rectangular, hexagonal, diamond, etc
Mesh size	0.5-100mm
Panel Size	1*1m,1*2m,1.22*2.44m or custom
Application	Sound barriers, ceiling, machinery, and equipment guards
Sample	Free Available
Payment term	TT 30% Advance + 70% Balance
Price Item	FOB, CIF, EXW, CFR, etc
Packing	Standard export packaging
Certification	ISO 9001, SGS, ABS, BV
MOQ	5 tons
Transportation	By land, by sea

Production Video

Please enjoy our perforation production line, which is recorded in videos showing the production process of white-coated aluminum perforated sheets and blue-coated carbon steel perforated sheets.

Features

1. Flexibility, the size can be cut, bent, and welded as needed

2. High strength: superior to the strength of wire mesh because it is perforated in the whole steel plate.

3. Aesthetics: can be used for craft decoration, decorative floors, ceilings

4. Economical: not as expensive as a whole steel plate, while retaining the strength of the steel plate and the permeability of the wire mesh, light transmission and ensuring the passage of gas and light.

Application areas

(1) Architectural Decoration: Used for building facades, stairways, ceilings, and wall decoration, it provides ventilation, sunshade, and sound absorption, with customizable patterns. It is also used in noise reduction systems.
(2) Industrial Equipment: Used as filters, screens, protective nets, and security doors for media filtration, airflow regulation, equipment protection, and EMI/RFI shielding.
(3) Transportation Manufacturing: Used in aerospace applications such as engine compartments and fuel filters; in the automotive industry for fuel filters and radiator grilles.
(4) Environmental Energy: Used in exhaust gas treatment equipment to filter pollutants, and in the mining industry for ore grading and separation.
(5) Everyday Uses: Used in household appliances such as dishwasher filters, microwave screens, safety devices, and handicrafts.

What is the difference between wire mesh and perforated mesh sheet?

First of all, what is perforated mesh? It is a steel plate with small holes of a certain shape on the surface formed by laser cutting or machine punching of a steel plate using CNC technology. There are many kinds of base materials, such as low-carbon steel plate, high-carbon steel plate, galvanized steel plate, stainless steel plate, PPGI, PPGL, etc. It can be galvanized after punching to form a GI perforated sheet with excellent corrosion resistance, which is widely used.

The wire mesh is a mesh plate or mesh roll formed by weaving or welding steel wires or steel bars. The most obvious difference between it and the perforated mesh is that the perforated plate is made of a steel plate, while the wire mesh is made of steel wire.

MS perforated sheet Size and Weight Table

Thickness	Weight kg/m2	2m x 1m	2.5m x 1.25m	3m x 1.5m	4m x 2m
6mm	48	96	150	216
5mm	40	80	125	180
4mm	32	64	100	144
3mm	24	48	75	108	192
2.5mm	20	40	62.5	90
2mm	16	32	50	72	128
1.5mm	12	24	37.5	54
1.2mm	9.6	19.2	30	43.2
0.9mm	7.2	14.4	22.5
0.7mm	5.6	11.2	17.5
0.5mm	4	8	12.5

Calculation Of Perforated Sheet Weight Per Square Meter

MS perforated sheet price

WANZHI STEEL, a famous and leading MS perforated sheet manufacturer in China, provides MS Perforated Sheets, SS Perforated Sheets, GI Perforated Sheets, Metal Perforated Sheet and Perforated Steel Mesh, etc. Their prices are determined by hole diameter, hole spacing, plate thickness, material, and total quantity.

The sizes are not limited to the range listed in the table, and the solutions can be customized according to your requirements. We strictly select high-quality substrates, control the quality at every level, focus on quality, and provide considerate services throughout the process.

Production process

Gauge Chart of Mild Steel Perforated Plate

SWG	INCH	MM	SWG	INCH	MM
7/0	0.500	12.70	23	0.024	0.61
6/0	0.464	11.79	24	0.022	0.56
5/0	0.432	10.97	25	0.020	0.51
4/0	0.400	10.16	26	0.018	0.46
3/0	0.372	9.45	27	0.016	0.42
2/0	0.348	8.84	28	0.015	0.38
1/0	0.324	8.24	29	0.014	0.35
1	0.300	7.62	30	0.012	0.32
2	0.276	7.01	31	0.012	0.30
3	0.252	6.40	32	0.011	0.27
4	0.232	5.89	33	0.010	0.25
5	0.212	5.39	34	0.009	0.23
6	0.192	4.88	35	0.008	0.21
7	0.176	4.47	36	0.008	0.19
8	0.160	4.06	37	0.007	0.17
9	0.144	3.66	38	0.006	0.15
10	0.128	3.25	39	0.005	0.13
11	0.116	2.95	40	0.005	0.12
12	0.104	2.64	41	0.004	0.11
13	0.092	2.34	42	0.004	0.10
14	0.080	2.03	43	0.004	0.09
15	0.072	1.83	44	0.003	0.08
16	0.064	1.63	45	0.003	0.07
17	0.056	1.42	46	0.002	0.06
18	0.048	1.22	47	0.002	0.05
19	0.040	1.02	48	0.002	0.04
20	0.036	0.91	49	0.001	0.03
21	0.032	0.81	50	0.001	0.03
22	0.028	0.71

About Wanzhi Steel

(1) Production Equipment: Equipped with multiple imported high-precision CNC punching machines, leveling machines, and cutting equipment to ensure production efficiency and product standards.

(2) Quality System: Certified by AISI, ASTM, JIS, and DIN, our professional testing center and team conduct rigorous inspections throughout the entire product process.

(3) Large-Scale Production Capacity: Our factory covers over 1,000 square meters and features a comprehensive production line, capable of handling large orders simultaneously.

(4) Fast Delivery: Our efficient production process is combined with ample inventory. Regular orders are in stock, and custom products can be delivered within 10-18 days.
