Galvanized Crimped Wire Mesh

Galvanized crimped wire mesh is a woven metal mesh with a galvanized surface. Its steel wires are crimped into a wavy pattern, and the mesh features uniform, square openings. Finer-gauge wire is supplied in rolls, while coarser-gauge wire is supplied in sheets. It offers high rust resistance and combines strength with toughness, making it a commonly used mesh material in the security and maintenance sectors.

Wanzhi Steel offers galvanized crimped wire mesh in various mesh sizes and wire diameters. We maintain stock in different roll lengths and heights and accept custom orders for various dimensions.

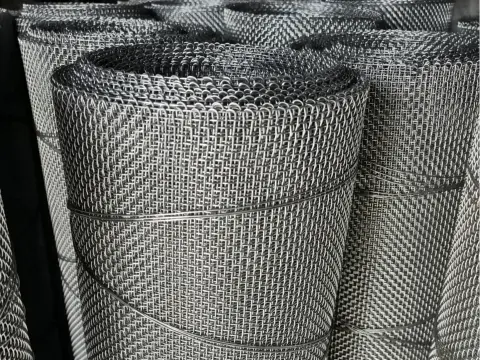

Wire Wrapped Edge crimped mesh wholesale

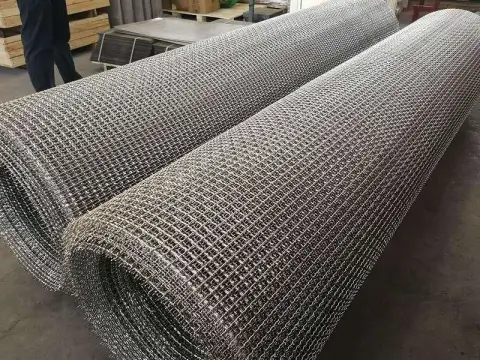

Woven Crimp Mesh with Cutting Service

Specifications

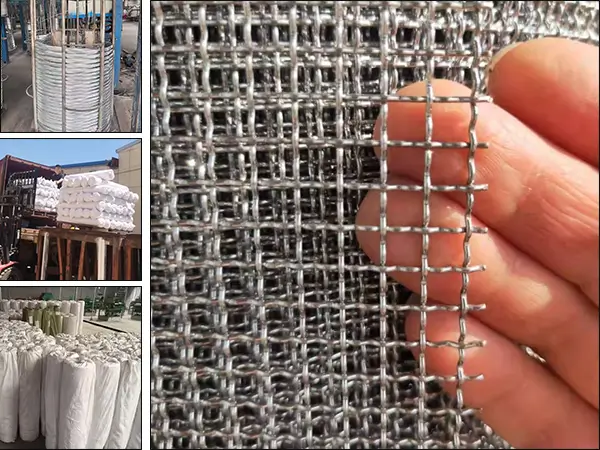

Galvanized Crimped Wire Mesh Manufacturer

Crimped Wire Mesh for Screening Sieve

Advantages of Galvanized Crimped Wire Mesh

• Sturdy Structure: The metal wires are first rolled into a corrugated shape by a crimping machine and then woven. The wires interlock tightly, resulting in uniform mesh openings, and it is more cost-effective than stainless steel crimped wire mesh.
• Strong Corrosion Resistance: Unlike bare crimped wire mesh, its surface features a silvery-white zinc coating, which not only enhances its aesthetic appeal but also significantly improves rust resistance, further expanding its range of applications.
• Flexible Specifications: While the mesh openings are typically square, rectangular openings can also be customized. The corrugated wires securely lock the warp and weft wires in place, preventing the mesh from stretching open, and offering flexible supply options.
• Long Service Life: It lasts longer than ordinary carbon steel expanded metal mesh, is wear-resistant, and is easy to cut and install. We offer complete sets that include posts and end caps.

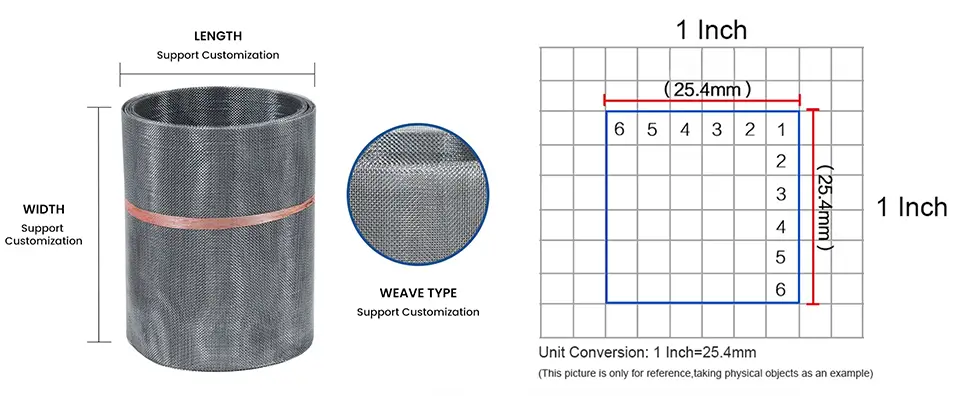

Customization Guide Diagram

Applications

• Mining Screening: Heavy-duty crimped wire mesh with a relatively thick wire diameter offers high load-bearing capacity and can reliably separate ore, coal lumps, or impurities on vibrating screens.
• Construction: Used for filtering sand and gravel at construction sites, as well as for decorative purposes or as site perimeter fencing.
• Residential and Commercial: Security fencing for shopping malls, banks, military bases, prisons, and along railway tracks.
• Civil Applications: Used in combination with galvanized pipes and galvanized barbed wire to form complete fencing systems; also used for animal enclosures.

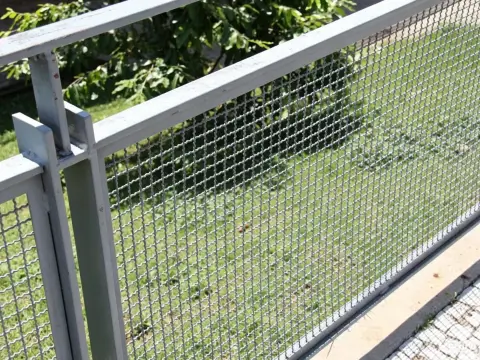

Used as guardrail safety netting

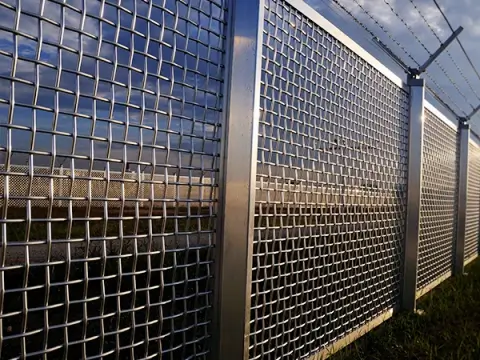

Used as border separation fence

Manufacturing Process

There are two main methods: one involves hot-dip galvanizing the entire product after weaving low-carbon steel wire into a crimped pattern; the other involves crimping galvanized wire into a corrugated pattern before weaving.

1. Weaving First, Then Galvanizing

Carefully selected Q195 or Q235 low-carbon wire rod is cold-drawn to the target wire diameter. The wire is then machine-rolled to form a low-carbon wire with regular undulations. Next, a weaving machine feeds the wire in both vertical and horizontal directions to form a mesh, which is then galvanized.

This process involves galvanizing the entire black carbon steel mesh panel.

2. Galvanize First, Weave Later

Similarly, fine wire drawn from low-carbon wire rod is used. The wire is galvanized first, then rolled into a corrugated shape, and finally automatically woven into a mesh.

This process involves galvanizing the black low-carbon steel wire.

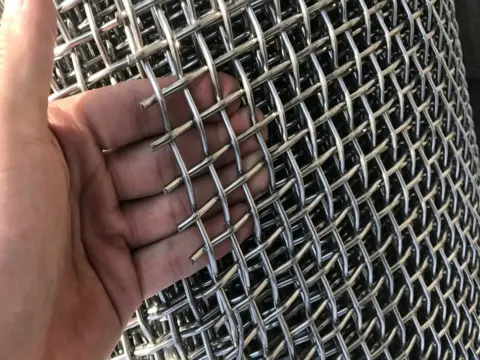

Woven Crimped Metal Vibrating Screen Mesh

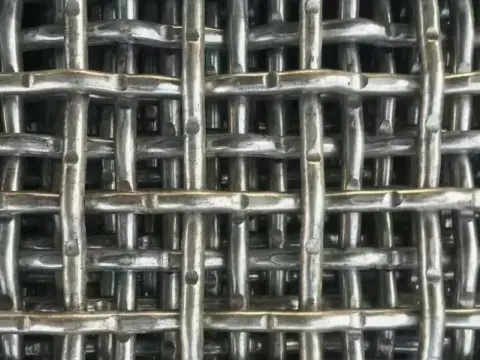

Customizable wire diameter and aperture

3 Weaving Methods

The weaving methods include Double-Crimp, Lock-Crimp, and Flat-Top, among which Double-Crimp is the most commonly used. This method interlocks the crests and troughs of the horizontal and vertical wires, resulting in low material friction.

4 Types of Edge Finishes

Wanzhi Steel offers four types of edge finishes: Raw Edge, Folded Edge, Wire-Wrapped Edge, and Welded Frame Edge.

• Raw Edge: The edge consists of exposed wire with no further processing; this is the simplest and most cost-effective option.
• Folded Edge: The edge wire is bent entirely inward, reducing the risk of scratches.
• Wire-Wrapped Edge: The outer edge of the mesh is wrapped with an additional loop of wire. All exposed ends are fully enclosed.
• Welded Frame Edge: The edges are enclosed within galvanized square tube, galvanized round tube, or angle iron and secured by welding, resulting in a finished mesh panel.

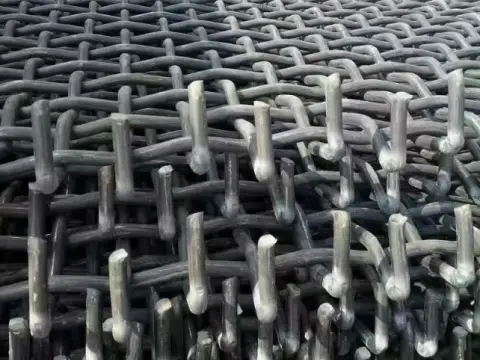

Folded Edge Treatment

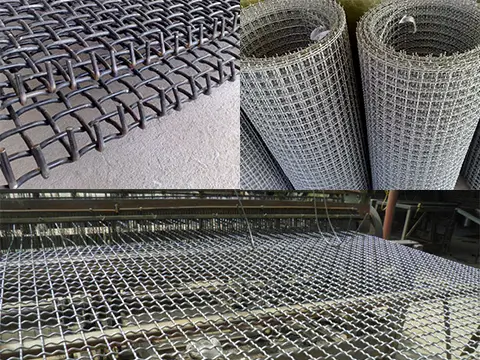

Crimp mesh production line

Why Choose Wanzhi Steel?

• Advanced automatic crimping & weaving equipment, large capacity for full-container orders, on-time delivery guaranteed.
• Customizable mesh count, aperture, wire diameter, zinc coating and mesh height with professional engineering support.
• Direct factory cost without middlemen markup, strict cost control while maintaining top quality standards.
• Multilingual sales team & multiple quotation terms available, reply to custom requests within 12 hours.

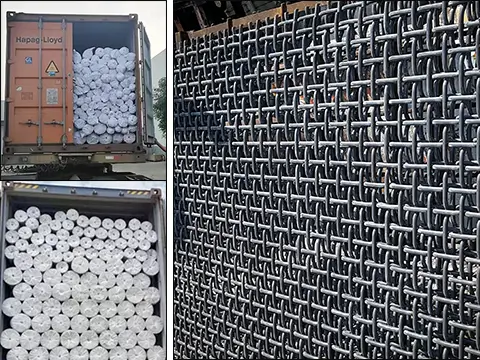

Customized Wire Mesh Panels and Rolls

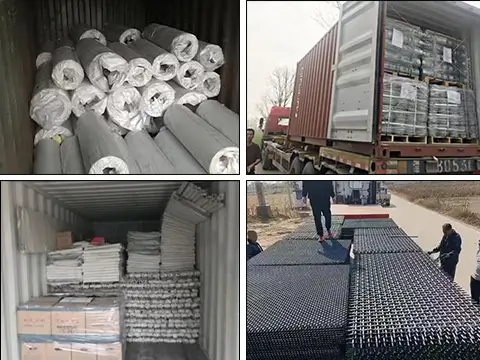

Packaging and Shipping

Get samples or a bulk quote! Chat with Us Online,

or send an email to: [email protected].

Wanzhi Steel is an ISO 9001-certified steel factory located in Hebei, China. Specializing in the production of stainless steel, galvanized steel, and carbon steel crimped wire mesh, as well as galvanized chain-link fencing and other woven mesh rolls and panels., with a monthly output of 1,800 tons. With high-quality products and good services, its products have been exported to more than 120 countries around the world.
