Fence Staple

Fence staples (also called fence spikes or U-nails) are U-shaped fasteners used to securely fasten wire mesh, mesh, or electric fences to wooden posts. They are hammered or pneumatically driven into the post at an angle to prevent the wire from slipping and to maintain tension in the fence. Wanzhi Steel offers fence spikes in all size ranges and accepts customization. We stock galvanized steel, stainless steel, and other materials. You are welcome to contact us.

2-inch sharp Point U Type Galvanized Staples

1.6-inch Barbed Wire Fence Nails

Fence Staples Specification

Key Features of Fence Staples

• Strong and rust-proof: The zinc layer of galvanized staples provides erosion protection, while stainless steel is the anti-corrosion champion, suitable for outdoor and coastal areas.
• Structural design: The U-shaped elbow ensures a firm grip on the fence wire, the sharp tip penetrates the wood without cracking, and the crown top prevents overdriving and wire damage
• Durability: Hot-dip galvanizing extends the lifespan to 15-25 years. Tensile strength 400–600 MPa, pull-out resistance 20–50% higher than standard nails.

1″, 1 1/4″ Steel Fence Staple Nails

9Ga 50mm GI Fence Staple for Heavy Mesh Fencing

Material Type

1. Galvanized fence staples

• Electrogalvanizing: Basic rust protection (5-10μm zinc layer).
• Hot-dip galvanizing: Excellent corrosion protection (50-80μm zinc layer), ideal for outdoor use.

2. Stainless Steel Fence Staples

316 grade fence staples are suitable for coastal or high humidity environments.

3. Copper Plated Fence Staples

It is relatively rare and is used for aesthetic purposes in the restoration of historic buildings.

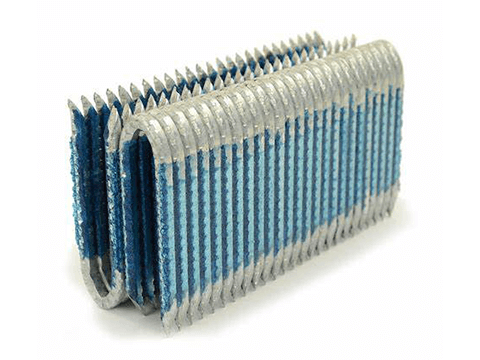

Stainless steel blue shank staples

Galvanized red shank staples

Galvanized gold shank staples

Golden Rules For Selection

1. Diameter calculation:

Staple diameter ≥ 1/3 of wire diameter (e.g. to fix 2mm wire, choose staple legs ≥ 0.7mm).

2. Length formula:

Staple penetration depth = Wood thickness x 0.6 (to avoid penetration).

3. Corrosion Protection:

For wet areas, choose the zinc layer ≥50μm or 304 stainless steel.

staple’s shank measure

Wanzhi Quality Inspection

Fence staple sizes

1. Ultra-short type (1/2″-3/4″)

• Diameter: 1.2-1.6mm (16-18 SWG).
• Length: 1/2″-3/4″.
• Avoid wood cracking (especially suitable for softwoods such as pine).
• Not suitable for high tension scenes.

2. Standard type (1″-1.5″)

• Diameter: 1.8-2.2mm (14-15 SWG).
• Length: 1″-1.5″, 1/2 inch to 2 inches.
• Construction specifications: 2-3 staples per column (at a 30° angle), with a spacing of 40-60cm (adjusted according to wind pressure).

3. Extended type (2″-2.5″)

• Diameter: 2.4-2.8mm (12-13 SWG)
• Special design: hot-dip galvanized layer ≥ 60μm (anti-livestock friction corrosion). It is recommended to use a pneumatic staple gun (efficiency increased by 5 times).

4. Heavy Duty (3″-4″)

• Diameter: 3.0-3.5mm (10-11 SWG).
• Length: 3″-4″, 2″ to 3″.

Fence staple size measurement

Application

Application areas and recommendations

Applications of different fence staples

• Standard Fence Staple: Field fences are fixed to stakes. Medium tension barbed wire (Barbed Wire) fixation, orchard support wire system.
• Extended Fence Staple: High-Tensile Wire (High-Tensile Wire) fixation, large livestock fences such as cattle and horses, industrial-grade chain link fence (Chain Link) edge fixation
• Heavy Fence Staple: Log Fence structural fixation, bear protection fence (need to penetrate double-layer wood), flood fence/military barrier, hurricane-prone area reinforcement, such as 2.5-inch spikes for cattle or horse fences. Wildlife sanctuaries use 3.5″ stainless steel spikes
• Electric Fence Staple: Used to prevent short circuits in electric fence systems. With plastic insulation coating.
• Pergola Staple: Anchoring of wire mesh in vineyards, flower corridors, and aisles.
• Poultry Staple: Fixing lightweight bird cage nets, chicken coops, and vegetable garden fences.
• Log Staple: Fixing logs on forestry roads.

Barbed Wire Fixing

Fastened to fence posts

pneumatic staple gun to nailling

Manufacturing process

① Wire drawing: Carbon steel wire is drawn into a precise diameter (1.5-3 mm).

② Galvanizing: Hot dip galvanizing process: 1. Pickling → 2. Flux application → 3. Zinc bath immersion (450°C). Electrogalvanizing: The zinc layer is thinner and cheaper.

③ Staple forming: The metal wire is bent into a U shape by a CNC machine. The tip is polished at an angle of 30-45°.

④ Coating (optional): PVC/ powder coating is used for coloring/insulation.

⑤ Quality control: Salt spray test: Hot dip galvanized staples are tested for more than 500 hours. Shear strength test: Ensure that the staple legs can withstand hammering.

Metal Wire Rod Wanzhi facroty

Wanzhi Factory- fence staples Supplier

Faqs

1. What do wood fence staples mean?

Wood Fence staples are U-shaped nails that are designed to hold wood fences in place. Made of metal and shaped and sized to fit into wood, they are used to fasten fence boards, rails, or other wood members.

2. The Barbed fence staples meaning

Barbed wire fence Staples are special spikes used to secure barbed wire. Stronger and able to withstand the tension of barbed wire fencing and hold the wire firmly in place.

3. What is 1 fence staple?

The “1” indicates that the staple is 1 inch in length and has a variety of diameters such as 18 gauge fence staples, 16 gauge fence staples, and 10.5 gauge fence staples.

4. What are 3-inch fence staples?

Fence staples are 3 inches long for deeper stapling into wood for wood fences, wire fences, and more. Also 1.5 inch fence staples are a popular size.

5. How to use fence staples?

Determine the location first. Then, use a hammer or nail gun to staple the fence nails vertically. Take care to choose the right size and type of fence staples.

Packaging

• Bulk packing: 20Kg/Carton, 25Kg/Carton.
• Box & Plastic Bag Packing: 0.5Kg*50Boxes(Bags)=25Kg/Ctn 1.0Kg*20Boxes(Bags)=20Kg/Ctn.

Carton packaging

Plastic bag packaging

25pcs bundle – plastic box

Why Choose Wanzhi Steel?

• High-quality materials: Made of low carbon steel, galvanized steel, and stainless steel.
• Precision manufacturing: CNC forming, dimensional error ±0.1mm to ensure consistency.
• Diverse options: Full size 1/2″ to 4″ length. Shank options.
• Strict quality inspection: Salt spray test for more than 1000 hours, each batch is traceable (RFID tags manage raw materials).
• Fast delivery: Also meet bulk orders, annual export volume 20,000 tons.
• Global certification: ISO 9001, ASTM F1664, REACH and other certifications, in line with market requirements such as Europe, America and Asia.
• High cost performance: Factory direct supply, price is 10-15% lower than middlemen. Large orders enjoy bulk discounts.

For bulk orders or customized specifications (e.g., odd leg lengths), please Inquire Online

or send Emial to info03@wanzhisteel.com.

Wanzhi Steel- Professional fence staples manufacturer, located in Hebei, China, with a monthly output of 1,700 tons. The fence staples have been exported to more than 120 countries around the world with excellent products and good services. Looking forward to working with you~
