Wire mesh can be designed into different types such as woven, welded and PVC coated. We can see these wire meshes everywhere, on farms, in gardens, on sports fields, and in the construction industry. Wanzhi Steel offers different types of welded wire mesh and woven wire mesh to meet the specific needs of our customers. Here are the details of different types of wire mesh compiled for you. Next, Let’s look at the specific types. Welcome to Ask us for more . (Chat on WhatsApp / Email Me Directly).





What are the Different Types of Wire Mesh?

· Classification by process　→

---



1. Welded wire mesh

① Galvanized Wire Mesh After Welding (GAW)

This type of welded wire mesh is made by welding iron wire into a mesh by a line welder and then galvanizing it. This process produces welded wire mesh with a zinc layer covering the entire mesh, including the welded area. Therefore, the corrosion protection of welded wire mesh will be better. However, the price of galvanized metal mesh after welding is relatively higher. Therefore, when buying welded wire mesh, you must choose to buy according to your actual situation and focus.

② Galvanized Wire Mesh Before Welding (GBW)

Galvanized before welding means that the wire is first coated with a layer of zinc on its surface by electro-galvanizing equipment. Then the galvanized wire is warp and weft welded. This process can produce coarse wire diameter welded wire mesh. However, there is a disadvantage in that the welded joints of welded wire mesh are prone to rust, which affects the service life of welded wire mesh. Overall, however, GBW welded wire mesh is economical and ideal for many applications.

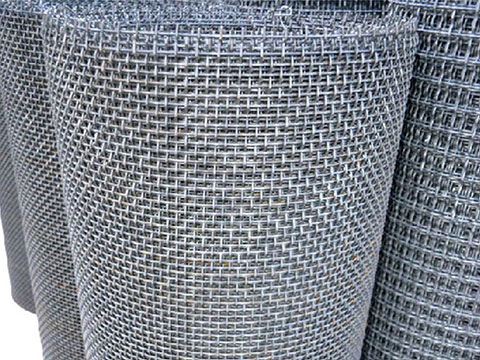

2. Woven Wire Mesh

① Wire Mesh Woven After Galvanization

This type of wire mesh is woven. Because it is not welded, the zinc layer on the surface of the mesh will not be burned. This means that the wire mesh will not rust as easily. This type of wire mesh is lighter in weight and lasts longer. The most common use of these metal mesh is for protecting the boundaries of facilities or wildlife.

② Wire Mesh Woven Before Galvanization

As the name implies, this type of wire mesh is formed by first weaving the wire into a mesh and then galvanizing it. This process produces a uniform zinc coating and is very flexible. However, the wire mesh made by this process is slightly more expensive compared to other processes.



3. PVC Coated Wire Mesh

PVC-coated wire mesh is made by applying a PVC coating to welded or woven metal mesh. the PVC coating seals the metal mesh and protects it from rust and corrosion. This type of wire mesh is available in many colors, such as green, black, blue, white, etc. You can often see it in gardens, playgrounds, and other settings. Our common ones include PVC welded mesh, PVC chain link fence, PVC hexagonal mesh, PVC hardware cloth, etc.



4. Perforated Steel Mesh

Perforated wire mesh offers high strength and durability, but has limited flexibility compared to woven wire mesh. The aperture, density, and mesh size can be customized.  Favored for design-centric applications, including cladding, screens, and decorative elements.



5. Vinyl Coated Chain Link Fence

You may be familiar with chain link fences, and a common surface treatment is galvanizing. However, the coating of Vinyl Coated Chain Link Fence is not zinc, but vinyl, which is made of synthetic resin or plastic.



6. Expanded metal fencing

Expanded Metal Mesh Provides High-Security Fence Solutions. Fencings are constructed of steel sheets, simultaneously slit, and stretched into a rigid, open mesh design making continuous sheets that prohibit unraveling at the strands. The surface is a raised metal grid.



· Classification by shape　→



1. Square mesh

There are welded grids and woven grids with square openings. Different processes have different uses. This technology can form a strong and precise mesh.



2. Rectangular mesh

Rectangular Mesh is primarily utilized for concrete reinforcement of walls and floor slabs, patios, tilt-up slabs, and other industrial or warehouse applications. Wanzhi Steel has Rectangular Reinforcing Mesh, and also woven rectangular mesh for sale.



3. Diamond mesh

Diamond mesh is manufactured on a specially designed diamond mesh loom that weaves the mesh in a diamond orientation, rather than the standard square orientation. Very wide widths can be woven. Diamond mesh is commonly used for infill panels, wall partitions, screening, conveyor belts, and window guardrails.



4. Hexagonal mesh

Hexagonal Wire Mesh – Slope Protection Mesh and Chicken Wire. It owns hexagonal shape holes with same sizes. Its material mainly is low carbon steel. According to different surface treatments, hexagonal wire mesh can be divided into two types: galvanised steel wire and PVC wire.

· Classification by material　→



---

1. Galvanized Wire Mesh

As the name implies, it refers to a steel wire mesh with a layer of zinc on the surface to increase the durability of the steel wire mesh, which is silver or bright gray. In addition to the galvanized coating, there are other coatings, which have been mentioned above and will not be repeated here.



2. Stainless Steel wire Mesh

Stainless Steel wire　is the best material. If your budget is sufficient and the use environment is harsh, then stainless steel wire mesh is your best choice. Its chemical composition is different from galvanized steel, so it has superior performance. Common ones include 304 stainless steel wire mesh, 316 stainless steel wire mesh, etc.



3. Aluminum wire Fencing

Aluminum fencing is used for chain link fencing, farm fencing, chicken coops, etc., and is sometimes used for electric stranded wire. It is lighter than steel, but not as hard and strong as wire mesh. It is light gray or silver gray in color.



· Classification by uses　→



1. Garden Wire Mesh

Horticultural protection, crop protection, isolation of harmful substances, customizable shapes, square, hexagonal, customizable processes, galvanized, plastic coated, etc. Such as chicken wire garden fence, chain link wire mesh fence, and other wire trellis meshes.



2. Farm Fence

We can weld and woven it. What’s more, we can make sparse at the top and dense at the bottom. It can provide good protection for farms where large and small animals are raised together. Farm fence wire, also called farm gates, is used in livestock fencing, such as cow fence wire, nonclimb horse fence, sheep wire fencing, corral fence, and horse fence panels, and is commonly used in rural fencing.



3. Wire Mesh Screen

The holes of the mesh are relatively small and dense, and its applications include stainless wire mesh screens, retractable fly wire screens, wire screens for concrete, window screening mesh, welded screens, etc. The size can be customized.



4. Concrete Mesh

Specifically, the wire mesh is laid on the surface or inside of the concrete structure (such as walls, floor slabs, beams, and columns, etc.), and it is firmly combined with the concrete through a specific method (such as welding, tying or mechanical connection) to form a composite structure.

For more information, read this article – Steel Reinforcement Mesh.



5. Gabion Basket

Galvanized Gabion Baskets are used in landscaping and civil engineering for decoration or stabilization. At Wanzhi Steel, we offer both woven and welded gabions. Wire diameter, mesh size and mesh size can be specified. Also, available in galvanized or PVC coating treatments.



6. Welded Mesh Panel

There are also two styles: galvanized and PVC coated. The welding size can be customized according to the purpose. The wire diameters vary. There are coarse steel meshes, fine garden meshes, mesh screens, etc.

7. Rockfall Netting

It is used for rock netting slope protection, so it can be used outdoors to fix vegetation along the road, prevent mudslides, prevent rolling stones on the hillside, etc. Galvanized and colored are optional.



8. Field Fence

It is a kind of wire mesh whose applications are agricultural fencing, goat wire fence, and cattle wire fence, and has similar uses to the farm fence mentioned above. There are also Razor wire fences. We usually bundle them in rolls.



9. Steel Grating Plate

Wanzhi uses steel grating with certain crossing styles and different thicknesses of checkered plate surfaces to make Steel grating plates. We commonly use Steel grating to make ditch cover plates, steel structure platform plates, steel ladder step plates, etc. It has excellent hardness and strength.



10. Game Fence

Game fencing is simply a way to describe a style of fence typically used to discourage animals from breaching a perimeter or to keep other animals in. It’s a bit different from standard residential fencing as it’s much taller and usually has smaller openings.



11. Hog Panels

It refers to hog wire fence, or hog fence, hog fence panels, modern hog wire fence has black hog wire fence, and its applications also include hog panel deck railing, diy hog wire fence, etc., packed in rolls.



12.3D Panel Fence

3D means it has both depth and width, it is not a flat mesh, it refers to transparent fences. Wanzhi Uses high-quality steel wire to weld into a 3D Fence Panel. Because this kind of fence panel has 2-4 curves, so we also call them curved mesh panels, this fence panels are more reinforced than ordinary welded mesh panels because of the triangle curved.



13. Cattle Wire Fencing

High-tensile, woven-wire steel mesh with a “fixed knot” is the material of choice for holding cattle, preferred over five-strand barbed wire and hinged-joint fencing for its strength and safety, and most importantly, for its resistance to breach.



14. Clear View Fence

We usually know Clear View Fence as an enemy of climbing (anti-climb), anti-cut, and CCTV optimized for better visuals of the other side of the security border fencing. Wanzhi can customize the number and arc of the bends, we can choose galvanized or PVC coated.



15. Steel Reinforcement Mesh

Steel reinforcing mesh is a type of material. We use it to strengthen construction projects such as concrete walls and floors. It is made of steel wires that are woven into a mesh-like pattern and then welded together to form a strong and durable reinforcement mesh structure.



Wanzhi Steel can customize different shapes of wire mesh products for you. Each shape of wire mesh has its unique charm. You can choose according to your actual use. Here are some pictures for your reference.



Choosing the Right Wire Mesh for You

Not every type of metal mesh is suitable for every project. Some projects have very specific requirements such as weight, surface finish, strength, etc. Therefore, when making your choice, it is important not to be blind. You need to carefully consider exactly what material, coating, and wire diameter wire mesh product you need for your project. Then choose the right type. Finally, after determining the type, you can buy from a reliable manufacturer.

Specify and Order Wire Mesh Products from Wanzhi Steel

If you are planning to purchase wire mesh, let Wanzhi Steel be your first choice. Tell us the specifications you need, including material, opening/mesh size, and wire diameter. Our sales managers will complete a quote for you within 24 hours. If you are still struggling with your choice, then contact us now. We will provide you with a solution based on your needs.



WhatsApp: 8613938459717(Click To Directly Chat)

Email: info03@wanzhisteel.com(Click To Email Me)



Below are the general specifications of GAW and GBW welded wire mesh for your reference.

Mesh Opening		Wire Diameter
In Inch	In Metric Unit (mm)	BWG
1/4″ x 1/4″	6.4 mm x 6.4 mm	22,23,24
3/8″ x 3/8″	10.6 mm x 10.6 mm	19,20,21,22
1/2″ x 1/2″	12.7 mm x 12.7 mm	16,17,18,19,20,21,22,23
5/8″ x 5/8″	16 mm x 16 mm	18,19,20,21,
3/4″ x 3/4″	19.1 mm x 19.1 mm	16,17,18,19,20,21
3/4″ x 3/4″	19 mm x 19 mm	16,17,18,19,20,21
1″ x 1″	25.4 mm x 25.4 mm	15,16,17,18,19,20
1″ x 1/2″	25.4 mm x 12.7 mm	16,17,18,19,20,21
1-1/2″ x 1-1/2″	38 mm x 38 mm	14,15,16,17,18,19
1″ x 2″	25.4 mm x 50.8 mm	14,15,16
2″ x 2″	50.8 mm x 50.8 mm	12,13,14,15,16
2″ x 3″	50 mm x 75 mm	14,13,16
3″ x 3″	75 mm x 75 mm	12,13,14,15,16
2″ x 4″	50 mm x 100 mm	13,14
4″ x 4″	100 mm x 100 mm	13,14
