Hardness Comparison Table of Steel from Different National Standard
Precise material selection begins with clear grade comparison. To facilitate cross-border and cross-standard business and technical exchanges for our clients and partners, Wanzhi Steel engineers have compiled the “Global Steel Grade Comparison Guide”. This guide gathers equivalent and similar grades from major standards such as Chinese GB, American ASTM, European EN, Japanese JIS, and German DIN, aiming to be your most convenient reference tool.

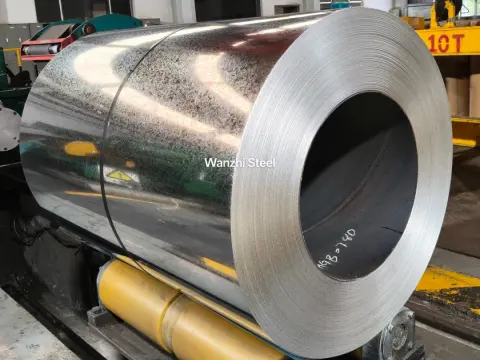

DX51D+Z275 galvanized steel coil

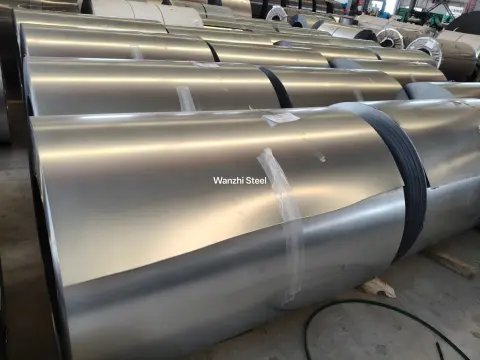

dx51d az150 gi coil facory wholesale supply

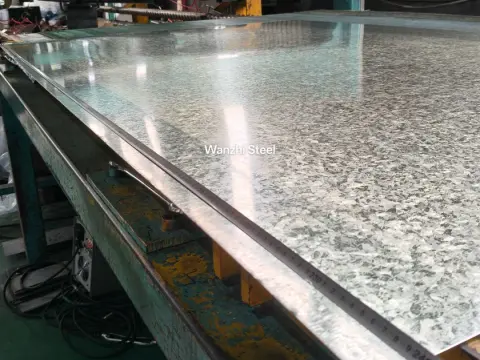

DX51D Z150 steel coil sheet supplier
Standard Grade Comparison
| American Standard | Japanese Standard | European Standard | Australian Standard | ||
| ASTM A792(M) | JIS G3321 | JIS G3322 | BS EN 10346 | AS 1397 | |
| Grade 230(33) | SGLCC | CGLCC | DX51D | G1 | 55-65 |
| Grade 255(37) | S220GD | G2 | |||
| Grade 275(40) | S250GD | G3 | |||
| CS Type A | S280GD | G250 | |||
| CS Type B | S320GD | G300 | 60-65 | ||
| CS Type C | — | — | |||
| — | SGLCD | CGLCD | — | — | |
| — | SGLCDD | CGLCDD | — | — | |
| — | SGLC400 | CGLC400 | S350GD | G350 | 65-75 |
| Grade 340(50) Class 1 | SGLC440 | CGLC440 | — | G450 | 85-88 |
| Grade 340(50) Class 2 | — | — | |||
| Grade 340(50) Class 4 | — | — | |||
| — | SGL490 | CGL490 | — | G500 | |
| Grade 550(80) Class 1 | SGLC570 | CGLC570 | S550GD | G550 | 88 and above |
| Grade 550(80) Class 2 | |||||

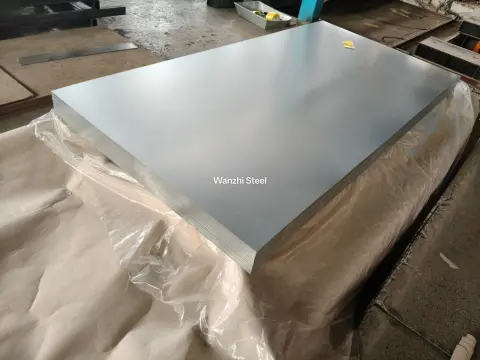

Aluminum-zinc coated steel sheet

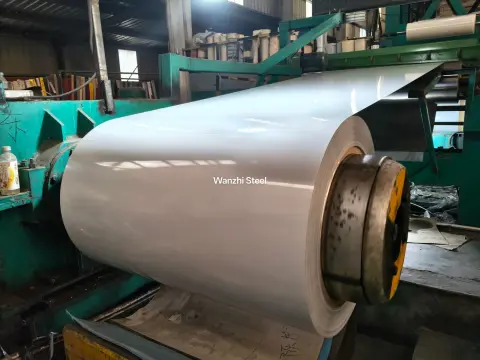

RAL9003RAL9010 White PPGI Coil wholesaler

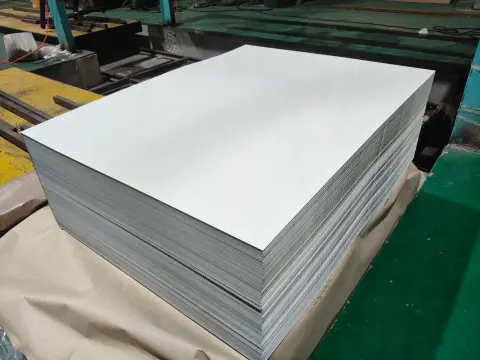

DX51D-Z120 Prepainted Galvanized Steel Coil Sheet
| ASTM A792(M) | Yield Strength,min,Mpa(Ksi) | Tensile Strength,min,Mpa(Ksi) | Elongation in 50 mm,min,% |
| Grade 230(33) | 230(33) | 310(45) | 20 |
| Grade 255(37) | 255(37) | 360(52) | 18 |
| Grade 275(40) | 275(40) | 380(55) | 16 |
| CS Type A | 205/410(30/60) | — | 20 |
| CS Type B | 245/410(35/60) | — | 20 |
| CS Type C | 205/450(30/65) | — | 15 |
| Grade 340(50) Class 1 | 340(50) | 450(65) | 12 |
| Grade 340(50) Class 2 | 340(50) | — | 12 |
| Grade 340(50) Class 4 | 340(50) | 410(60) | 12 |
| Grade 550(80) Class 1 | 550(80) | 570(82) | — |
| Grade 550(80) Class 2 | 550(80) | 570(82) | — |

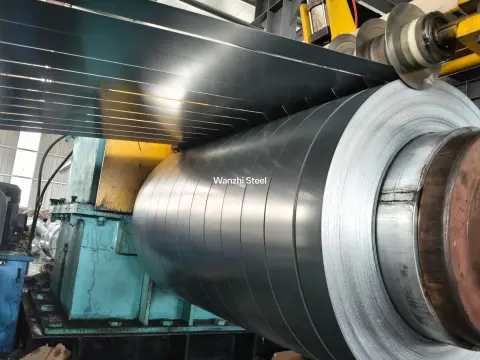

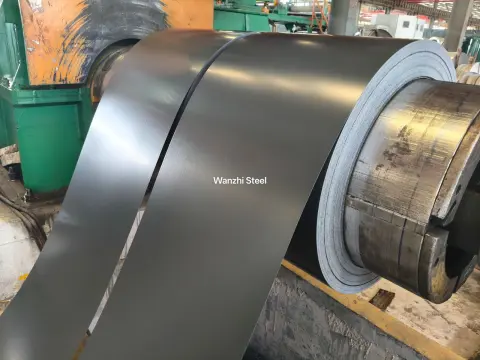

Zinc-coated/zinc-aluminum coated steel suppliers Gray PPGI color-coated steel coil strip Black PPGI galvanized steel strip
| Japanese Standard | Yield Strength,min,Mpa(Ksi) | Tensile Strength,min,Mpa(Ksi) | Elongation in 50 mm,min,% | ||||
| JIS G3321 | 0.25≤t＜0.40 | 0.40≤t＜0.60 | 0.60≤t＜1.00 | 1.00≤t＜1.60 | 1.60≤t＜2.3 | ||
| SGLCC | 205 | 270 | 20 | 21 | 24 | 24 | 25 |
| SGLCD | — | 270 | — | 27 | 31 | 32 | 33 |
| SGLCDD | — | 270 | — | 29 | 32 | 34 | 35 |
| SGLC400 | 295 | 400 | 16 | 17 | 18 | 18 | 18 |
| SGLC440 | 335 | 440 | 14 | 15 | 16 | 18 | 18 |
| SGL490 | 365 | 490 | 12 | 13 | 14 | 16 | 16 |
| SGLC570 | 560 | 570 | — | — | — | — | — |
| BS EN 10346 | Yield Strength,min,Mpa(Ksi) | Tensile Strength,min,Mpa(Ksi) | Elongation in 50 mm,min,% |
| DX51D | — | 270 to 500 | 22 |
| S220GD | 220 | 300 | 20 |
| S250GD | 250 | 330 | 19 |
| S280GD | 280 | 360 | 18 |
| S320GD | 320 | 390 | 17 |
| S350GD | 350 | 420 | 16 |

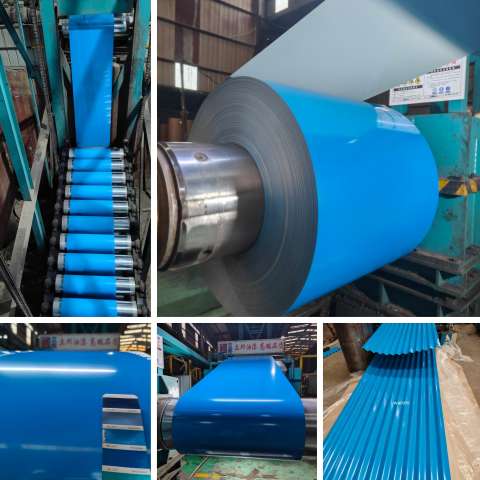

Blue PPGI pre-painted galvanized coil & Sheet
Z30-Z275 galvanized corrugated roofing wall sheet

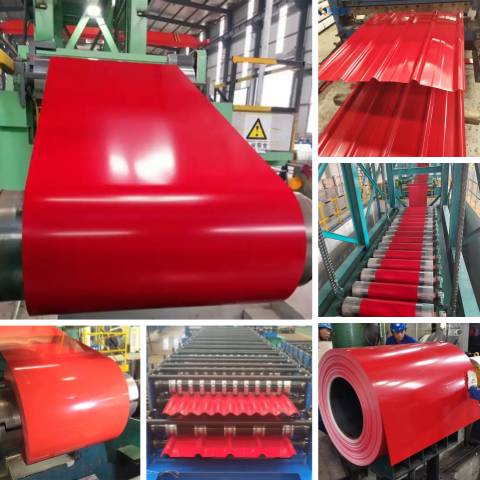

Red PPGI pre-painted galvanized steel coil Sheet
| AS 1397 | Yield Strength,min,Mpa(Ksi) | Tensile Strength,min,Mpa(Ksi) | Elongation in 50 mm,min,% |
| G1 | — | ||
| G2 | 30 | ||
| G3 | 35 | ||
| G250 | 250 | 320 | 25 |
| G300 | 300 | 340 | 20 |
| G350 | 350 | 420 | 15 |
| G450 | 450 | 480 | 10 |
| G500 | 500 | 520 | 8 |
| G550 | 550 | 550 | 2 |
