Double wire fence, known as the double horizontal wire fence, 2d panel fence, or twin wire mesh fencing, consists of twin wire mesh (double wire mesh) and fence posts. It is a welded fence, and common colors are green, white, and black. Common combinations include top barbed wire, top razor barbed wire, or top anti-climbing spikes. It is commonly used in sports fields, prisons, viaducts, rooftops, and other areas for protection and isolation. Wanzhi Steel is a professional fencing manufacturer with a fair price and accepts customized solutions. If the following dimensions can’t meet your requirements, you can contact us to send the detailed dimensions.

Double Wire Fence Specification

Item	Double wire fence
Place of Origin	Hebei, China
Delivery Time	8-18 days
Standard	AISI, ASTM, DIN, JIS, GB, EN
Material	Q195/Q235 Low-carbon steel wire
Type	Fencing, Trellis & Gates, security fence, Driveway/Sidewalk Gate
Technique	Welding
Wire diameter	5/4/5mm , 6/5/6mm, or 8/6/8 mm
Mesh size	50x100mm / 50x150mm / 50x200mm / 55x200mm / 75x150mm
Width	2.0m-3.0m
Height	0.6m-2.3m
Surface treatment	Hot dipped galvanized, galvanized +powder coated, galvanized +PVC coating
Post type	Round post, peach post, square post, rectangle post
Aliases	Double Rod Mesh Fence, Twin Wire Panel 868, Double Wire Trellis & Gate Fencing, 868 Welded Metal Fence,  Twin Wire Double Rod Wire Mesh Fence
Color	Green, black, gray, red, blue, white, or as your requirement
Function	Screening\separation\sorting\sieving\Grading
Sample	Free Available
Payment term	TT 30% Advance + 70% Balance
Price Item	FOB, CIF, EXW, CFR, etc
Packing	Standard export packaging
Certification	ISO 9001, SGS, ABS, BV
MOQ	180 Pcs, 5 tons
Transportation	By land, by sea

Double wire fence meaning

Double wire mesh fence is made of high quality low carbon steel wire. Each welded point is welded with one vertical and two horizontal wires, compared with ordinary welded fence panels, double wire fence has higher strength and can withstand larger impacts and high winds. In other words, double wire fence panel has double horizontal large diameter rods attached on both sides of the panel. It is very popular in the Europe market. There are three types of surface treatment, including hot dip galvanized, powder coating or PVC coating, which can make double wire fence have a longer service life. The most common styles include 656 double wire fence and 868 double wire fence. 656 means the horizontal direction contains two 6mm thick wire, vertical direction is one 5mm wire.

Popular Specification for Double Wire Fence
Panel Height x Width panel (mm)	Post Height (mm)	Mesh Opening(mm)	Wire Diameter (mm)	Post/Colume	Accessories
630×2500	1100	50×200(standard) 25 x 200 100 x 200	8/6/8mm or 6/5/6mm	Square Post: 50x50mm, 60x60mm.	Non clip; rain cap
830×2500	1300
1030×2500	1500
1230×2500	1700
1430×2500	1900
1630×2500	2100			Rectangular Post: 40x60mm, 40x80mm, 60x80mm, 60x120mm	Steel clips, plastic clip; rain cap
1830×2500	2400
2030×2500	2600
2230×2500	2800
2430×2500	3000			Thickness: 1.5 – 3.0mm

Features

1. Safety Class: 1 Breaking Load: 75K – 105K psi Wire Size: 1 gauge (horizontal wires), 4 gauge (vertical wire)

2. Design: Heavy Duty, 868/656/545 double wire mesh fence options, cut-through panels, a wide range of height options (up to 6000mm), and RAL colours available.

3. Wire Size: 1 gauge (horizontal wires), 4 gauge (vertical wire) with a 2-inch by 8-inch center of wire, to wire gap.

4. Post and Bracket System: Panels are attached to the front of the posts using a universal bracket and a stainless steel #14 x 1.5″ self-tapping screw.

5. Functionalities: The large wire design of the Double Wire 868 makes it difficult to cut or climb, enhancing security.

6. Complete System: The Double Wire 868 system includes panels in different heights, posts, and brackets, offering a comprehensive and aesthetic solution.

7. Fencing System: The Double Wire 868 fencing system is a welded wire fence panel with extra heavy-duty double horizontal wires, providing high rigidity and a stylish design.

Benefits

1. High Degree of Security: Due to its large wire design, the Double Wire 868 is recommended for applications where security is crucial. The robust and rigid panel is difficult to cut or climb.
2. Anti-rust: The galvanized and powder coated surface of the double wire fence has good anti-rust and anti-corrosion ability, which can withstand various harsh environmental conditions.

3. Flexibility: For low fences, security covers are available, with tamper-proof fixings to ensure a secure installation， and can be cast in concrete.

4. Strength: The Double Wire 868 fencing system is built with extra heavy-duty double horizontal wires, providing high rigidity and strength.

5. Safety: Due to the tight mesh, it is suitable for children and pets, and can also be used in other combinations as a privacy screen.

It is also cost-effective, easy to care for, convenient to maintain, and visually attractive.

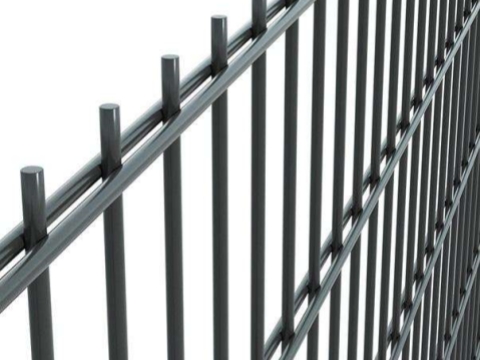

Sturdy 868 twin wire mesh fencing

868 double wire fence is welded by 2 pieces of 8mm horizontal wires sandwiching 1 piece of 6mm vertical wire. We also produce 656 twin wire mesh and 545 wire fence. Among them, 868 mesh fencing is the most rigid and sturdy mesh, and 868 and 656 welded mesh panels are recommended.

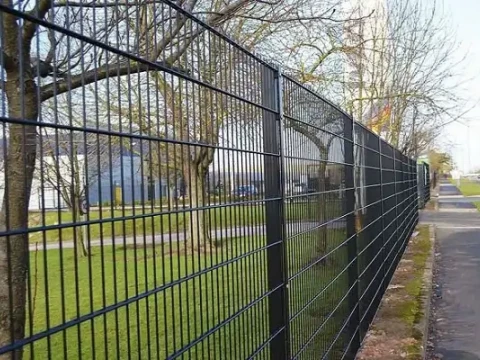

The Twin 868 welded metal mesh fence pictured below is extremely strong and has excellent resilience, making it an ideal choice for industrial and commercial areas, as well as for sports areas such as ball fields, tennis courts, and parks.

Twin wire 656 flat mesh panels

It differs from twin 868 mesh fence panels only in the thickness of the wires.

656 mesh is a cheaper version of the extremely strong 868 mesh. However, 656 fence panels are still stronger and stiffer than most mesh fences. Twin 656 mesh panel fencing is versatile and becoming increasingly popular as fencing for schools, fencing for colleges, and fencing for industrial and commercial areas. 545 wire fence is also used for school and park fencing.

Application

Double wire fence panel is used for the protection of objects with high security requirements, for example, to protect nuclear and hydroelectric power plants, airports, military warehouses, Detention Centers, stadiums, shopping malls, and railways.

It is also usually a fencing wall for industry, public and administrative buildings, supermarkets, Children’s playgrounds, dams, and Wildlife Park facilities.

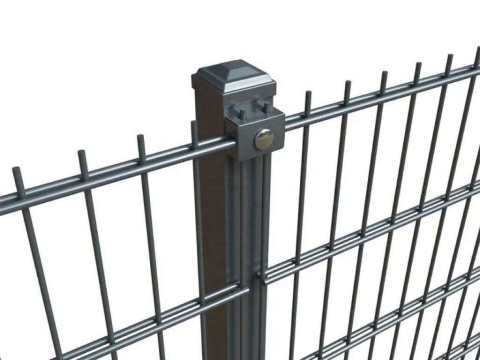

Fastener System and Accessories

1. Mesh panel + column: bolt or rivet connection.

2. Steel clip: flat steel or special steel clip is used.

3. Nuts: all nuts are self-locking nuts.

4. Column: square and rectangular columns are made of galvanized steel or coated with a special polymer on the surface, and column caps are required. The usual sizes are 80 × 80 × 2.0 mm, 60 × 60 × 2.0 mm, and 60 × 40 × 2.0 mm. Custom sizes will provide columns and special mounting holes.

5. 80 × 60 × 2.5 mm, 80 × 80 × 2.5 mm, 120 × 60 × 3 mm columns are available for top heavy-duty applications.

6. Conventional setlist: panel 2030 × 2500 mm + column (60 × 60, 80 × 80) + 4 fastening metal covers + 1 plastic cover (The size is for example, customized is accepted).

What should I pay attention to when buying double wire fence?

1. The 4/6/4 GA (6/5/6 mm) wire thickness is suitable for private gardens, while the 0/4/0 GA (8/6/8 mm) wire thickness is also suitable for industrial and commercial use.

2. Measure the required height and length of a double wire mesh fence in advance. And calculate the total number of mesh panels required or the total length

3. If you want to buy the mesh panel posts and accessories separately, it is possible, but we recommend that you buy a full set to avoid the problem of incompatibility after arrival.

4. How to choose the color? The above lists our best-selling colors, which means they are the colors used by most people, and you need to make sure that the color and surface are harmonious with the overall design of your garden.

Double wire fence supplier – Wanzhi Steel

When you order the double wire mesh fence from Wanzhi Steel, you can enjoy our wide range of services and our highest standards for quality fence systems. We have provided a wide range of solutions to multiple customers. It is a premium global manufacturer of fencing solutions and access control. For more than ten years, we have been committed to providing strong and durable high-security fence products, engaged in the production and export of security fences. Advanced production equipment and skilled workers contribute to our high-quality products and long-term cooperation with customers.
