Brick Reinforcement Mesh
Brick Reinforcement Mesh is a metal mesh material used to enhance the strength and stability of masonry structures. It is mainly used for the reinforcement of concrete structures, especially wall reinforcement. It can effectively prevent wall cracking, improve seismic performance, and extend the service life of buildings. Wanzhi Steel uses high-quality Low-Carbon Iron Wire, Galvanized Steel Wire, and aluminum as raw materials, specializing in the production of Expanded Mesh and masonry welded mesh with a width of 65mm-300mm and a length of 1.2-20m. If you are interested, please contact us to learn more.

galvanised brick reinforcement

bricktor stainless steel

mesh for brickwork
Brick Reinforcement Mesh Specification
Item | Brick Reinforcement Mesh |
Material | Low-Carbon Iron Wire, Galvanized Steel Wire, aluminum wire, Ss wire |
Length | 1.2-100m, etc. |
Width | 65mm-300mm |
Wire diameter | 0.3-1.65mm(Gauge can be customized) |
Hole shape | Rhombus, Square, Diamond |
Mesh Opening | 15x15mm, etc |
Packing | Waterproof Paper |
Processing Service | Welding, Cutting |
Delivery Time | 8-14 days |
What is Brick Reinforcement Mesh?
Brick Reinforcement Mesh is a mesh material made of woven or welded metal wires (usually galvanized steel wires or stainless steel wires), usually laid in mortar joints to strengthen the overall performance and tensile strength of masonry panels without increasing the thickness of the wall. By combining with bricks and mortar, a solid overall structure is formed.

Galvanized reinforcement mesh surface

ladder wire masonry

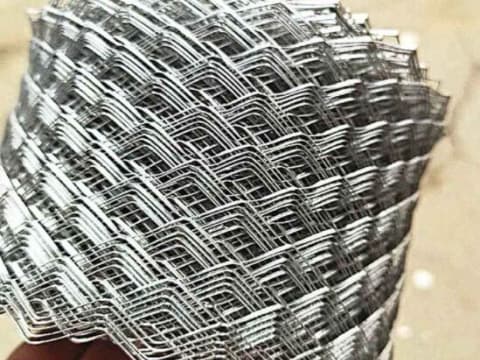

expanded-brick-diamond reinforcement-mesh-
How many types of Brick Reinforcement Mesh are there?
According to the material, shape, structure, mesh size, and purpose, brick wall reinforcement mesh can be divided into the following types:
Ⅰ.Classification by shape
Depending on the shape and purpose, brickwork reinforcement mesh can be divided into many types, such as:
1. Ladder mesh, its width can vary from 4 inches to 16 inches.
2. Truss mesh reinforcement.
3. T shape masonry mesh.
4. Brick welded mesh.
5. Expanded metal reinforcement.
The wire diameter of T-shaped mesh and brick welded mesh is usually between 2.5 mm and 8.0 mm.
Ⅱ.Classification by structure
The structure of mesh brick wall is mainly divided into two types:
1. Welded mesh
It is made of metal wire welded by resistance welding, and the mesh shape is usually square or rectangular.
Advantages: high strength, precise mesh size, suitable for high-precision construction. However, flexibility is not suitable for walls with complex shapes.
2. Woven mesh
It is woven from metal wire, and the mesh shapes are various, including hexagonal, diamond, etc.
Advantages: good flexibility, suitable for irregular walls or special structures. However, the strength is slightly lower than that of welded mesh.
Ⅲ.Classification by material
1. Galvanized steel wire mesh: lower price, suitable for general construction environment.
2. Stainless steel mesh: higher price, stronger corrosion resistance, suitable for humid or highly corrosive environments.
Besides these two metal brick reinforcing meshes, there are also aluminum wire mesh, copper wire brick reinforcing mesh, zinc-aluminum alloy wire brick reinforcing mesh, low-carbon wire mesh, and other materials.
Ⅳ.Classification by mesh size
1. Small mesh (10mm x 10mm): suitable for fine masonry structures or repair projects.
2. Medium mesh (50mm x 50mm): suitable for ordinary wall reinforcement.
3. Large mesh (100mm x 100mm): suitable for large masonry structures or retaining walls.
In addition, it can also be classified by purpose, such as ordinary reinforcement mesh: used for general wall reinforcement. Earthquake-resistant reinforcement mesh: used for building reinforcement in earthquake-prone areas. Repair reinforcement mesh: used to repair existing cracked or aging walls.

Electro-Galvanized-Welded-Wire-Mesh

Hot dip galvanized brick mesh process

ladder wire masonry size
Materials and surface treatment
1. Material: brick wire mesh is mainly made of low carbon steel wire, stainless steel wire, or galvanized steel wire.
2. Surface treatment: To enhance corrosion resistance, these steel wires can be electro-galvanized or hot-dip galvanized before or after welding. In addition, some products can also be made directly from stainless steel wire.
Features and Benefits
Masonry reinforcement mesh has the following significant features:
1. High strength
Made of high-strength metal wire, it can effectively withstand tensile stress and shear force.
2. Corrosion resistance
Galvanized or stainless steel material makes it have good corrosion resistance and is suitable for wet or harsh environments.
3. Easy to construct
The mesh structure is light and easy to cut and can be quickly embedded in the mortar joints, with high construction efficiency.
4. Economical and practical
The cost is relatively low, but it can significantly improve the service life and safety of the wall.
5. Crack resistance
By tightly combining masonry units, exmet brick can effectively prevent or reduce wall cracking.

Aluminum wire brick reinforcement mesh coil

brick reinforcing coil

Galvanized diamond mesh lath installation
Use
Wire mesh brick wall is widely used in the construction industry, mainly including the following scenarios:
1. Wall reinforcement
Used in the horizontal and vertical joints of brick walls to prevent cracking due to temperature changes or foundation settlement.
Improve the tensile strength of the wall and reduce the occurrence of cracks.
2. Earthquake reinforcement
In earthquake-prone areas, mesh for brick walls can effectively enhance the integrity of the wall and improve the seismic performance of the building.
3. Repair of old buildings
Used to repair walls with existing cracks or aging structures to restore their strength and stability.
4. Special structures
In special masonry structures such as arch structures, chimneys, retaining walls, etc., stainless steel brick reinforcement mesh can provide additional support and reinforcement.

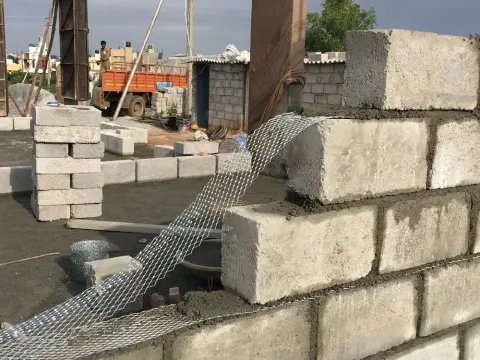

como-poner-block

Used in plaster masonry

Welded Wire Reinforcement Mesh
Brick Reinforcement Mesh Price
The price of brick reinforcement wire (mesh for brickwork) is affected by many factors, including material type, mesh size, wire diameter, surface treatment, and purchase quantity.
Here are some reference prices (taking the Chinese market as an example, prices may vary depending on the region and supplier).
We take 50mm x 50mm mesh sizes, 2mm wire diameter as an example:
1. Galvanized steel wire mesh price: about 1-2 US dollars/square meter.
2. Stainless steel mesh price: about 3-5 US dollars/square meter.
These are estimated prices. Since prices are changing,
it is recommended to contact the online manager to get real-time prices.

Carton packaging

Galvanized-Lath-Brick Coil-Mesh

Welded reinforcement mesh for sale
China Brick Reinforcement Mesh Manufacture – Wanzhi Steel
As an important building material, brick wall wire mesh is indispensable in modern buildings. It extends the service life of buildings and reduces maintenance costs.
Whether it is a new building or an old building restoration, it is an economical and practical choice. Escort the safety of the building.
Wanzhi Steel is a steel factory located in Boxing County, Shandong Province, with a monthly output of 1,500 tons. For bulk orders, we give bulk discounts.
By cooperating with us, you will have considerate service, fair prices, high-quality products, and good after-sales.
We also have Galvanized Welded Mesh, Galvanized Concrete Mesh, and Galvanized Steel Stucco Netting on sale~
If you have other questions, don’t hesitate to Get In Touch With Us.
