369 Tons Of Galvanized Iron Tie Wire Exported To Italy
Wanzhi Steel exported 369 tons of galvanized iron tie wire to a leading Italian building materials distributor on May 19. The order covers three common specifications: 9GA, 10GA, and 16GA. The following is a record of our process from production to logistics.

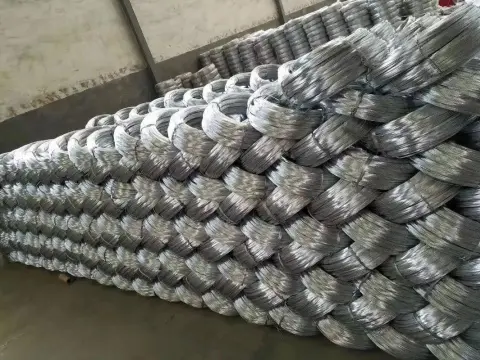

Galvanized iron tie wire for shipment

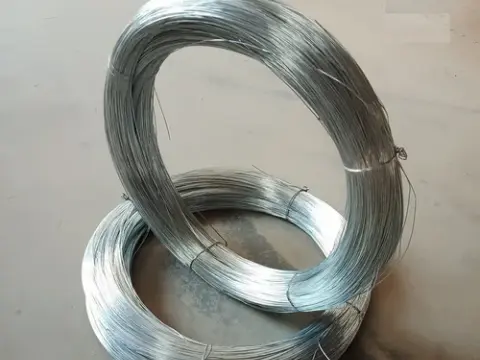

16GA wire packaging sent by the customer

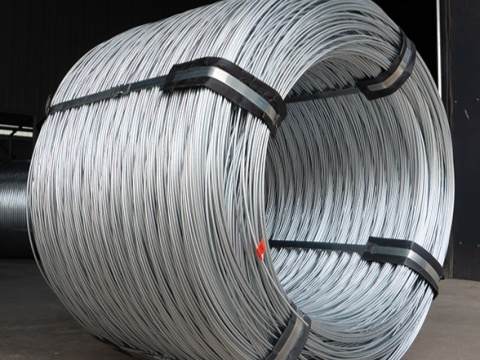

Galvanized tie wire produced by Wanzhi Steel
Customer Background
This customer is a well-known Italian supplier of building materials. We have cooperated with this customer for many years and focus on providing high-end metal binding solutions for the local infrastructure, agriculture, and industrial markets. The main products are steel bar binding, fence reinforcement, and gardening support products. The annual purchase of GI wire ties exceeds 500 tons, and the corrosion resistance and tensile strength of the materials are strictly required.
The customer chose Wanzhi Steel because of our full specification supply capacity (0.5 mm- 4.0 mm) in accordance with EN 10244-2 standard and the European logistics advantage of fast delivery.
Cooperation highlights
We have successfully cooperated on the Milan viaduct project and have been supplying goods stably for 3 years without any quality disputes.

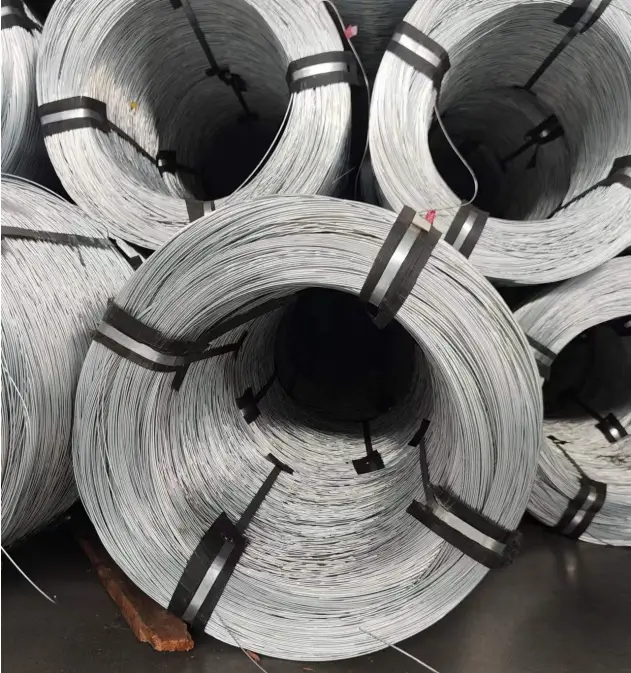

Customers have used our GI tie iron wire
Order details
The following table shows the customer’s order details and the purpose of use. After our communication, the customer requested the following galvanizing amount.
| Product | Gauge (AWG) | Diameter (mm) | Zinc Coating | Quantity (Tons) | Purpose |
| GI Tie Wire (9GA) | 9 | 3.76 | Z120 (120g/m²) | 150 | Heavy-duty construction |
| GI Tie Wire (10GA) | 10 | 3.25 | Z90 (90g/m²) | 120 | Rebar tying, fencing |
| GI Tie Wire (16GA) | 16 | 1.63 | Z60 (60g/m²) | 99 | Agricultural/light industrial |
Customer Other Requirement
Standard: Comply with ASTM A641 (Grade 3), EN 10244-2.

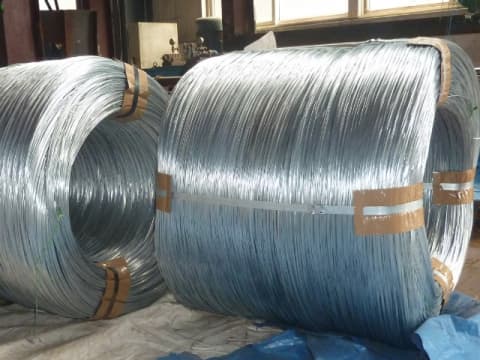

SAE 1008 Steel Wire ties

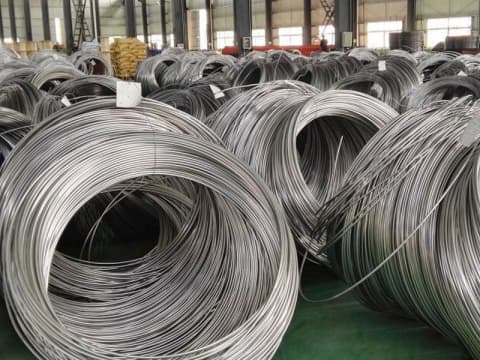

9 gauge galvanized wire in stock

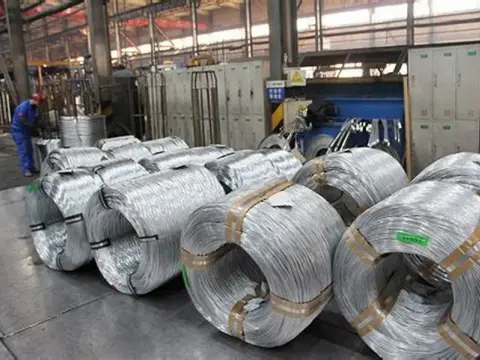

Wanzhi galvanized wire workshop
Production Process
1. Raw material selection: Select high-quality Q195 low-carbon steel wire rod (C≤0.12%, P/S≤0.045%) that meets the standards for optimal ductility.
2. Wire drawing: Cold drawing to precise diameter (tolerance ±0.05mm) using tungsten carbide dies.
3. Galvanizing: Hot-dip galvanizing in a zinc bath at 450°C (9GA/10GA: Z120/Z90; 16GA: Z60).
4. Post-treatment: Passivation with chromium-free solution to enhance corrosion resistance.
5. Coiling and cutting: Automatically coiled into coils or straight cut lengths that meet customer requirements.
Mild steel Cold Heading Steel Wire rod
Stainless steel wire production line

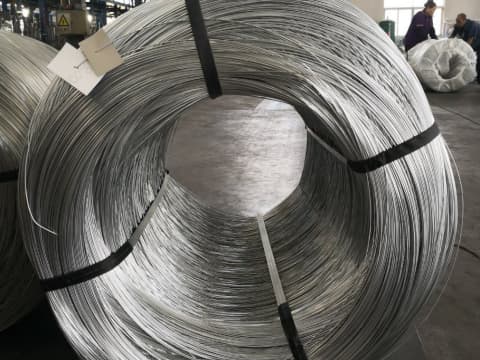

Galvanized wire tie finished product
Quality Control
1. Dimensional inspection: Laser micrometer verifies diameter consistency.
2. Zinc adhesion: ASTM B633 salt spray test (>72 hours, no red rust).
3. Tensile strength: 350-500 MPa (tested according to ISO 6892-1).
4. Certification: Factory Test Report (MTR), certified to EN 10204 3.1.

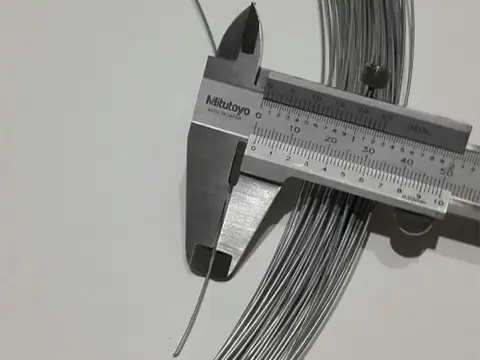

Iron wire diameter measurement
Tensile strength test
40 60 90 Salt Spray Tester
Packaging and Transportation
Package
1. 20 kg coils are wrapped with anti-rust paper.
2. Moisture-proof PVC film is used for sea transportation protection.
Transportation
1. 40 high cube containers (27 tons each) from Qingdao to Genoa.
2. Total shipping time: CIF Genoa, Italy, 30 days (including customs clearance).

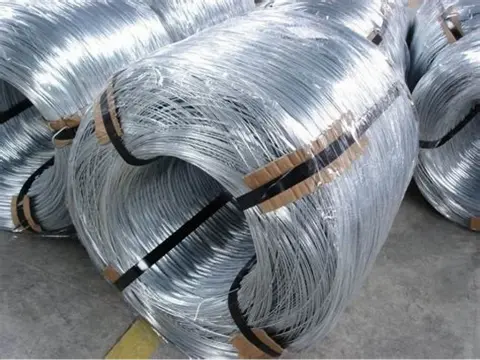

Iron wire wrapped with plastic film

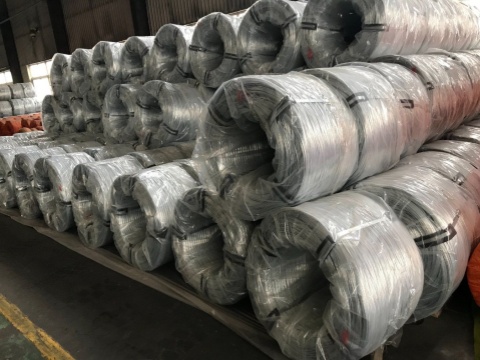

Inner packaging, waterproof plastic film

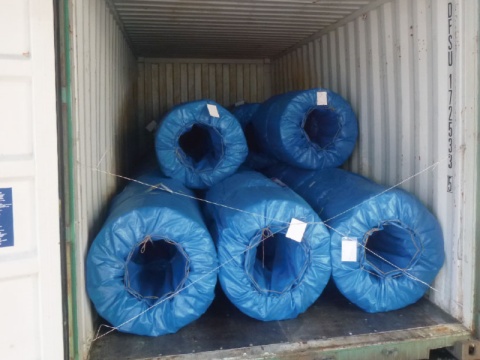

Shipping in containers
Application of GI iron wire
1) 6 Gauga galvanized wire: 4.12 mm in diameter, relatively thick. Tie and reinforce bridges and large building frames. Reinforce fence posts or high-strength livestock fences. Ship anchor chains and offshore platform fixings.
2) 9 Gauge galvanized wire: 3.66 mm, used for medium-strength fences such as farm fences and garden fences. Also used for concrete reinforcement tie or scaffolding fixation or grape rack support, large plant climbing frame support.
3) 10 Gauge galvanized wire: 3.25 mm, poultry fences, light fences for small animal cages. Metal crafts, flexible furniture frames. Bundle heavy objects or industrial materials.
book binding wire stitching
Binding Wire in Construction
Hay baling wire tying
4) 12 Gauge galvanized wire: 2.64 mm in diameter, vegetable trellises, small flower gardening trellises, temporary sunshades, simple trellises, tie and fix, make plastic metal woven products, decorations.
5) 14 Ga galvanized wire: 2.03mm diameter, such as small plant climbing frames, flower pot fixation, and other household uses. Fine crafts such as jewelry making and model making. Bundling lightweight goods or stationery.
6) 16Ga GI iron wire: diameter 1.63 mm, metal wire weaving, micro sculpture production, high flexibility occasions, integrated circuit fixation, cable bundling, and also used for fixed support of medical devices.
7) 18 gauge Galvanized wire: diameter 1.22 mm, thinner, can be packaged in a spool, weaving necklaces, bracelets, and other jewelry, architectural models, toys, and laboratory use.
8) 20 Gauge Galvanized wire: diameter 0.914 mm, extremely fine, micro metal sculptures, embroidery metal wire, micro sensors, precision fixation of circuit boards, medical scenes.
Chicken Fence
Mask Wire
Farm fence barbed wire fencing
Case summary
The Italian construction industry is growing at an average annual rate of 2.3% (EU report 2023), driving the demand for durable lashing materials.
Galvanized iron wire supply
Galvanized iron wire has the characteristics of rust resistance, high strength, and flexibility. The diameter of 0.5-4.0mm can be customized, suitable for building steel bar binding, gardening fixing and industrial bundling. It complies with the ISO:9001 standard and has a service life of more than 10 years. Customized length and packaging are supported.
High Tensile Wire for Sale

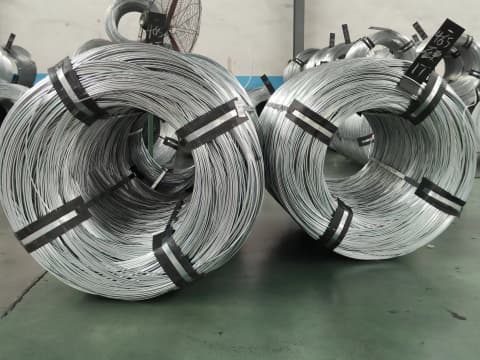

Silver Color Galvanized Zinc Coated Iron wire
