V Mesh Fencing

V mesh fencing is a rugged, beautiful, and versatile security solution that blends functionality with modern design. Also known as V Profile Mesh Fencing, it is used in commercial, industrial, and residential applications due to its visibility, exceptional durability, and ease of installation.

Wanzhi Steel‘s V mesh panels are made from pre-galvanised steel which is then powder coated in a range of standard RAL colors for added protection. A range of sizes are available, with heights ranging from 1.2m to 3.0m.

black v mesh fencing

black v mesh fencing

EuroGuard Regular Welded Mesh Panel

EuroGuard Regular Welded Mesh Panel



Over 20 years of experience in manufacturing and supplying V-net security fences.

From size to detailed specifications, we can tailor-make it for your business. Enjoy factory prices now!

What is V Mesh Security fencing?

The V Mesh Fence is a security solution characterized by its distinctive “V” profile pressed into the mesh panels. This design enhances strength and rigidity, making the fence difficult to climb. Ideal for low to medium security applications, it offers versatile solutions while maintaining an aesthetically appealing appearance. The mesh structure ensures visibility, which is crucial for effective surveillance and security.



Wanzhi Steel V Mesh fencing features a unique V-shaped profile that runs along the horizontal axis of the panels. This design significantly increases the strength and stiffness of the fence, making it highly resistant to impact and deformation. The panels are typically constructed from high-quality steel wire, welded at each intersection, ensuring a robust and stable barrier.

What sizes are available for V Mesh Security Fences?

V-Mesh-Fencing-Height

V-Mesh-Fencing-Height

The V Mesh Security Fencing range includes panels in the following sizes:

Panel heights: 0.9m, 1.2m, 1.5m, 1.8m, 2.0m, 2.4m and 3.0m.

Panel widths: 2.55m- 3.0m.



Standard Panel size

Most suppliers offer a generic size of 200 x 50mm, the wire measures 4mm after coating, but we offer two: 200 x 45mm and 200 x 30mm. The wire measures 5mm before coating. The wire is welded together with horizontal V-shaped beams pressed into the panel to create a sturdy anti-climb mesh fence. The V-shape creates tension in the panel.

Both panels have unique vandal-proof panels to post fixings, 3-4 folds per panel according to height, and panels that overlap onto posts to prevent large gaps between panels and posts.



Wanzhi Steel Regular Panel Specifications



Height (mm) Post Centres (mm) Post Dimensions (mm) Overall Post Lengths (mm)
1525 3034 60 x 40 2100
1810 3034 60 x 40 2500
2010 3034 60 x 40 2800
2410 3054 80 x 60 3300

Features







1. One of the outstanding advantages of V mesh security fencing is that it has an open mesh design that provides excellent visibility.







This is essential for monitoring and inspection because it helps security guards to see the fenced area. The open design also ensures that CCTV cameras can operate effectively and will not be obstructed.

Euroguard Extra Mesh Spacing

Euroguard Extra Mesh Spacing









2.  V mesh fencing panels are made of mild steel

or galvanized steel, with a powder coating or PVC coating on the surface, and have a modern appearance.







Its stylish design can improve the appearance of the house and is available in a variety of colors.

Euroguard Regular V Mesh Fence Detail

Euroguard Regular V Mesh Fence Detail







3. V mesh wire fence facilitates easy and efficient installation. The panels can be fixed in different ways, whether the v mesh fencing posts are buried or bolted.







Which depends on the ground conditions. This flexibility allows for custom-sized fences to meet the specific needs of different sites.

Euroguard Regular V Mesh Fence Post and Fixing

Fence Post and Fixing







4. V mesh fence panels are available in a variety of sizes: panel heights are 1.2m3.0m. Our panel heights range from 0.9m to 2.4m.







With a standard width of 3.0m. While our 3.0m high panels are 2.55m wide.

Green-Color-3D-Fence

Green-Color-3D-Fence

Zinc, zinc alloy coating, polyester powder coating

While most V-net Security Fence System is galvanized, our V net panels are available with a Galfan® zinc alloy coating on request for superior corrosion resistance. The zinc alloy coating is more ductile and resists cracking, thus improving weldability and formability, which is critical for V-Mesh Fencing due to the reinforced V-profile. In addition to the zinc alloy coating, a polyester powder coating in a variety of architectural grade colors can be optionally added.

All of our V-Mesh Fencing comes with a standard 25 year warranty.

Standard colors



Black RAL 9005
Green RAL 6005
Grey RAL 7012
Blue BS 20-C-40
Blue RAL 5010
Red RAL 3020
Yellow RAL 1018
Brown RAL 8017
White RAL 9010
Other colors available on request

The Ral color

The Ral color

Depending on your project and market, you can OEM every detail of the V-net security fence. Welcome to consult our mesh fence experts through online meetings or factory visits.



Number of Curves Panel Size Wire Diameter (mm) Mesh Size (mm)
Height (m) Width (m) Inside Wire After PVC After Powder Coating
2 1.0 m 2.0 m
2.5 m
3 mm
4 mm
5 mm
6 mm
3.8 mm
5 mm
6 mm
7 mm
3.15 mm
4.15 mm
5.15 mm
6.15 mm
50 x 200
55 x 200
60 x 150
75 x 100
2 1.2 m
3 1.5 m
3 1.7 m
4 1.8 m
4 2.0 m
4 2.2 m

What gates are compatible with V Mesh Fencing?

Wanzhi Steel Welded wire mesh fencing panels and matching security gates are available in different styles with a number of fixing and grounding options.

Our 868 mesh gates and 358 mesh gates are compatible with v mesh wire fencing. These gates include single leaf pedestrian doors and double leaf vehicle doors. They are specifically designed to integrate seamlessly with v wire fencing, ensuring a consistent security barrier. Our 868 gates are most commonly used with v mesh fencing due to the similarity of design. Our mesh gates come in various sizes to fit your requirements.

The Wanzhi Steel 1000 and 2000 security fencing systems offer cost-effective perimeter security, while Wanzhi Steel  656 and 868 use a twin-wire mesh system to offer increased strength. The Wanzhi Steel 358 prison mesh system(358 Anti-Climb Fence) provides the highest level of security thanks to its twin-wire, tightly space aperture design. We have also developed a mesh fence range that is best suited to sports enclosures and ball game areas, the Wanzhi Rebound system.

For more information about 656 mesh and 868 mesh, please check this article – Double wire fence.

358-Anti-Climb-Security-Fence

358-Anti-Climb-Security-Fence

Euroguard Regular V Mesh Single Leaf Gate

Euroguard Regular V Mesh Single Leaf Gate

Security Fencing

Security Fencing

Application

Essential elements of security systems for major commercial venues: ideal for office buildings, retail parks, and shopping malls. Complements the exterior of the property.

Industrial workshops use V-shaped metal fences to provide a reliable barrier to protect machinery, equipment and raw materials, and isolate high-risk areas to protect personnel safety.

Schools, colleges, and universities, creating a safe environment for students and faculty

Parks, playgrounds and leisure areas, and private villas, prevent unauthorized entry.

Residential areas, apartments, and kindergartens provide a strong barrier to intruders, and customized colors enable the fence to blend seamlessly with the exterior of the house.

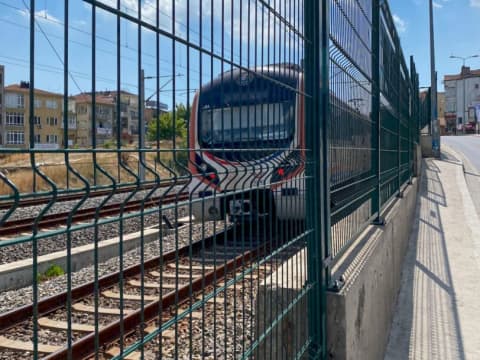

Transportation hubs such as airports and both sides of railways.

Welded mesh fencing and gates

Welded mesh fencing and gates

Green-PVC-Coated-3D-Panel-Fence

Green-PVC-Coated-3D-Panel-Fence

Profiled panel mesh fencing

Profiled panel mesh fencing

Don’t forget a Torque Bit!

Torque bits for mesh fencing are very important equipment for installing V-mesh fencing.

The bolts used for installation are tamper-proof. They are used to prevent vandals or intruders from dismantling your fence. Thus preventing them from getting inside. Due to this design, a torque bit is required to access these bolts and complete the installation.

Estimated Cost Price

The price drivers of wholesale V-net fences are fence wire, hole size, wholesale quantity, and shipping charges. For a formal and accurate quote, you can contact our experts for help.

3D-Fence-Installation

3D-Fence-Installation

3D-Curved-Green-Fence-Panel

V Curved-Green-Fence-Panel

V-Mesh-Perimeter-Fencing

V-shaped structure length

What is provided in a Mesh Security Panel kit?

Each mesh panel kit contains:

1). 1x panel

2). 1x posts

3). 1x Ribbed insert

4). Fixings kit with bolts and clips

Additional fixings and posts can be purchased separately.

Please note, that you will need to purchase a torque bit for installation of the mesh fencing.

V Mesh Fencing Suppliers

Wanzhi Steel has v mesh fencing for sale, the best-selling colors are green v mesh fencing and black v mesh fencing, the most common uses used by customers are v mesh horse fence, and V mesh gates, and the best-selling heights are 1.8 m high v mesh fencing and 2.4 m high v mesh security fencing.

White 3D Panel Fence

White 3D Panel Fence

Galvanized Fence Panels

Galvanized welded wire mesh

PVC Coated Fence Panels

PVC Coated Fence Panels



We are suppliers of a wide selection of V shaped fence systems. These range from our most popular Safe Mesh 100 perimeter fencing, which is the most cost effective V Mesh fencing system on the market, to our Twin Wire & prison mesh perimeter fencing systems.

For sports fields, courts, and pitches we also offer mesh fencing with rebound properties and spectator railings that are both affordable and aesthetically pleasing.

If you have any questions about V-Mesh Fence, such as installation, stock, or delivery, please feel free to contact us. You can contact us by email at info03@wanzhisteel.com or speak to one of our helpful team members Via Online Chat.
