358 Prison Mesh Fencing

358 Prison mesh fencing is a professional protective facility used in high-security supervised areas such as prisons and detention centers. It is made of high-strength steel, resulting in a robust and difficult-to-damage structure. Its main forms are welded wire mesh fences or fine-mesh fences, topped with anti-climb barbed wire, providing impact resistance, anti-climbing, and anti-dismantling security features. The surface is treated with anti-corrosion coating or plastic coating, offering excellent weather resistance and a long service life.



Wanzhi Steel is a professional metal fence manufacturer, producing welded wire mesh panels of various heights and lengths, and supplying barbed wire for the fence tops. If you are interested, please contact us.

Specification

Item	Prison fence
Place of Origin	Hebei, China
Standard	AISI, ASTM, BS, DIN, JIS, GB, EN
Alias	358 Anti-climbing protective net
Vertical lines	4.0mm
Horizontal lines	3.0-3.5mm, custom sizes from 3-6mm are available.
Panel height	1.8-5.2m
Panel width	2.0-3.0m
Columns (square)	60×60mm-120×120mm
Rectangular columns	40×60mm-60×80mm
Surface treatment	Hot-dip galvanizing + powder coating / PVC coating
Payment term	TT 30% Advance + 70% Balance
Price Item	FOB, CIF, EXW, CFR, etc
Packing	Standard export packaging
Certification	ISO 9001, SGS, ABS, BV, CE
MOQ	5 tons

Core Features

Triple Protection Mechanism

• Anti-climb: 12.7mm ultra-narrow horizontal spacing eliminates hand and foot gripping points.
• Anti-shear: 4.0mm thickened vertical lines combined with a dense weave structure effectively resist damaging tools.
• Corrosion resistant: Hot-dip galvanized + double-layer coating ensures a service life of over 20 years.

Engineering Adaptability

• The columns and trim strips are intelligently upgraded according to height (60×60mm for under 2.4m, 80×80mm for over 3.0m).
• The wind-resistant design has been verified by a 240km/h wind speed test.

Application Scenarios

Application scenario configuration scheme

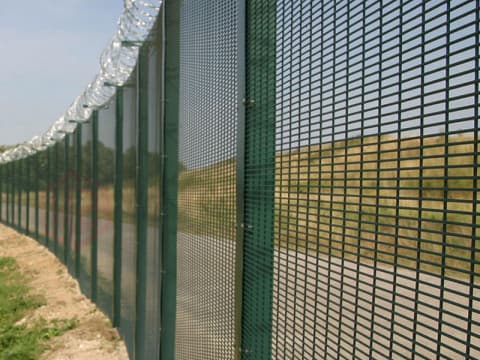

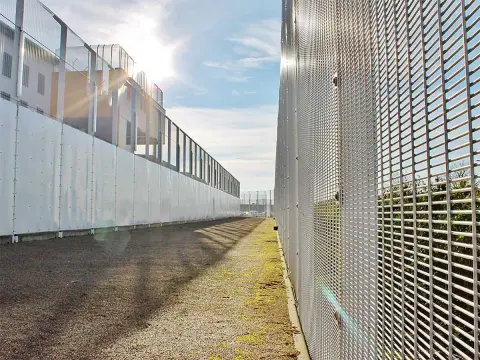

• Prisons/Detention Centers: Recommended height 4.2m + 100×100×4.0mm posts. Top with razor wire.

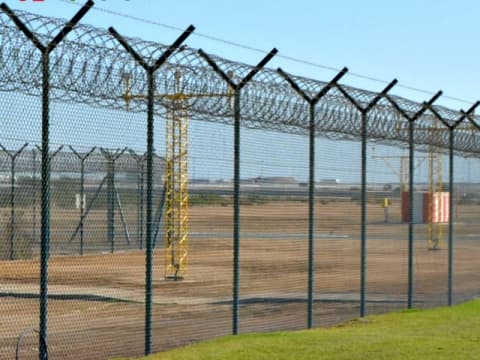

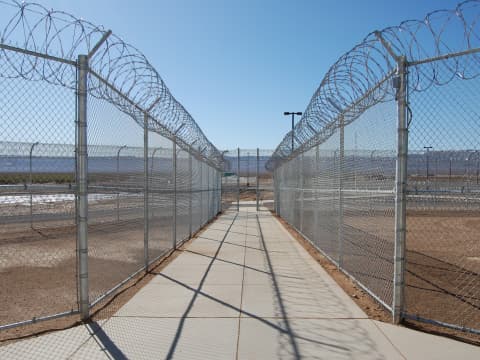

• Airports/Military Bases: 3.6m height + 30° anti-climb bend at the top; galvanized barbed wire can be added to the top of the fence.
• Schools/Residential Areas: 2.4m height + environmentally friendly PVC coating.
• Industrial Sites: 3.0m height + RAL7016 gray industrial color scheme.

What types are there?

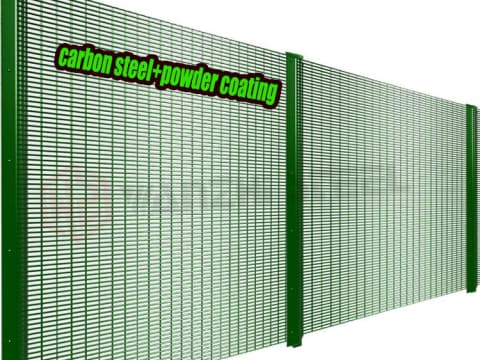

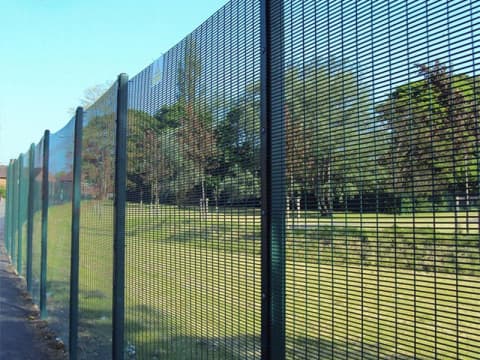

358 High Security Fence

It uses an ultra-dense 12.7×76.2mm mesh to form an insurmountable finger-grip-proof structure, combined with 4.0mm thickened vertical lines to prevent cutting, and is hailed as the highest level of solution for prison security.

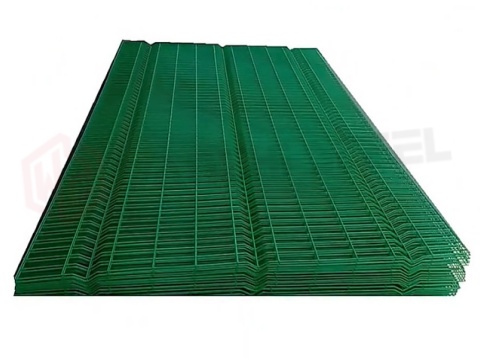

3D Curvy Wire Mesh Fence

The wave-shaped reinforced structure is formed through a three-dimensional welding process, which combines beautiful curves with impact resistance. The 3D panel‘s transparent mesh structure provides physical protection while ensuring the integrity of the field of view.

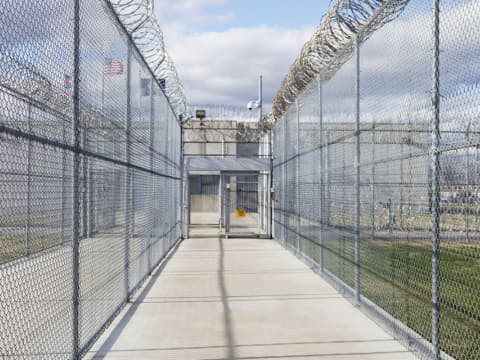

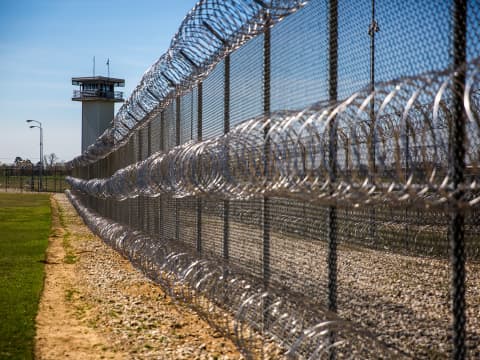

Galvanized Chain Link Fence

It provides economical and reliable basic protection with a classic chain structure, and can achieve a leap in security level by loading modules such as razor wire and high-voltage electric grid to meet different levels of protection needs.

Total Quality Control

We strictly control the mechanical properties and chemical composition of raw materials. The tensile strength, yield strength, and elongation of the high-strength low-carbon galvanized steel wire used are all tested by both a spectrometer and a universal testing machine.

Core Processes

• Precision Welding: Fully automated resistance welding ensures strong and uniform welds. Weld tensile strength is tested using destructive methods, with no incomplete or missing welds.
• Zinc Plating: Hot-dip galvanizing process, coating thickness 70-100μm, passes standard salt spray testing.
• Powder Coating: High-quality outdoor-grade polyester resin powder is used, with a coating thickness ≥80μm. Adhesion is tested using a cross-cut adhesion test, achieving a grade 0 standard.
• Dimensional Accuracy: Laser rangefinders and calipers are used throughout the process to perform 100% inspection of mesh size, wire diameter, panel diagonal length, and warpage, with tolerances controlled within ±2mm.

Final Inspection

• Shear Resistance Test: Hydraulic clamps are used to simulate destruction, ensuring the mesh wires cannot be cut by conventional tools.
• Anti-Climb Simulation: Evaluates the mesh design’s effectiveness in eliminating gripping points.
• Coating Inspection: Re-verifies coating thickness, uniformity, and adhesion.

FAQ

Q1: What is the minimum order quantity (MOQ)?

The MOQ is 1 container (approximately 500-700 m2). For customized projects or sample orders for testing, single-panel trial orders are supported.

Q2: What customization options are supported?

Panel height (1.5-6m), width (2.0-3.0m), customizable RAL international standard color chart, polyester powder coating/PVC coating surface treatment options, and the addition of razor barbed wire/V-shaped frame, etc.

Q3: What are the production cycle and delivery time?

Production will take approximately 15-21 business days from receipt of the prepayment. We are committed to providing transparent progress updates throughout the process to ensure on-time delivery.

Q4: How do you guarantee the product’s lifespan in harsh environments (such as coastal or industrial areas)?

For harsh environments, we offer reinforced solutions. We recommend using Galfan-coated steel wire, which offers 2-3 times the corrosion resistance of ordinary hot-dip galvanized steel.





Get samples or a bulk quote! Chat with Us Online,

or send an email to: info03@wanzhisteel.com





Wanzhi Steel is an ISO 9001-certified steel factory located in Hebei, China. It has been specializing in the production of galvanized and PVC-coated steel wire mesh fences for 14 years, including: Double Loop Wire Fence, Clear View Fence, Anti Climb Fence, BRC Fence, Railway fence, with a monthly output of 1,800 tons. With high-quality products and good services, its products have been exported to more than 120 countries around the world.
