Portable Fence Panels

Portable fence panels are lightweight, movable, and detachable wire mesh fences that can be quickly assembled and reused, unrestricted by terrain or weather, and consist of a panel and a plastic base. They are widely used in construction sites, event venues, and temporary crowd control. Durable and easy to transport, they are an economical temporary boundary solution. Wanzhi Steel is a professional manufacturer of temporary fence panels, offering full customization of colors, mesh sizes, heights, and widths, along with matching bases and accessories. If you are interested, please contact us.

Specification

Item	Portable fence panel
Place of Origin	Galvanized+Powder Coated
Standard	AISI, ASTM, BS, DIN, JIS, GB, EN
Alias	Temporary fence panels, moveable fence panels
Surface treatment	Galvanized/Powder Coated/PVC Coated
Mesh Size	50×200, 50×150, 50×100, 60*150, 75x 100, 75x150mm
Panel Height	1.8-2.8m
Panel Width	1.8-2.5m
Color	Yellow, green, black, red, white, black
Sample	Free Available
Payment term	TT 30% Advance + 70% Balance
Price Item	FOB, CIF, EXW, CFR, etc
Packing	Bulk, pallet, wooden box
Certification	ISO 9001, SGS, ABS, BV
MOQ	160 pieces

Main Advantages

Highly Efficient Assembly and Disassembly

Ready to use immediately, no digging or concrete pouring required. Modular design allows for quick assembly and disassembly, easily completed by a single person, and convenient to move.

Easy Mobility

Lightweight overall, some models come with casters or lightweight bases, allowing for direct transport or relocation by vehicle, meeting the needs of frequent site changes.

Durable and Robust

Hot-dip galvanized and powder-coated for rust prevention, resistant to wind and sun, and minor impacts, ensuring a long outdoor service life.

Reusable

Stable structure, not easily damaged, can be reused multiple times, significantly reducing long-term operating costs compared to traditional temporary fencing.

High Adaptability

Can be combined into fencing of different lengths and heights as needed, quickly dividing various areas in different scenarios.

Safety Protection

Fine mesh effectively blocks personnel and debris from passing through; optional anti-slip base provides enhanced wind resistance and stability.

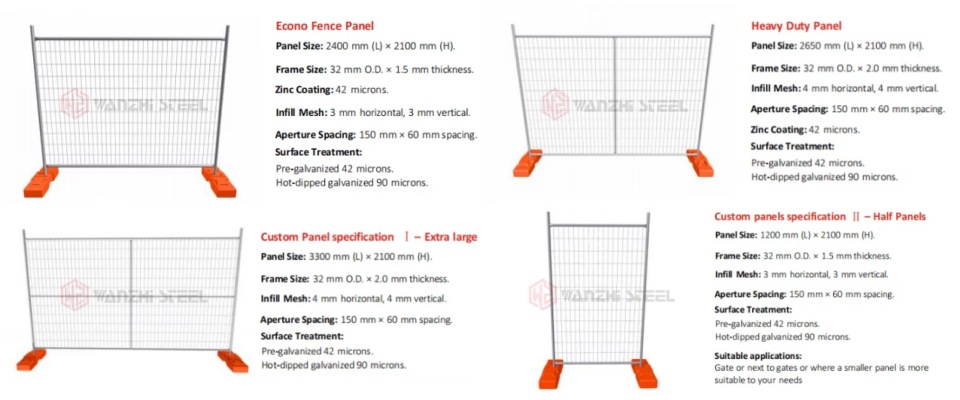

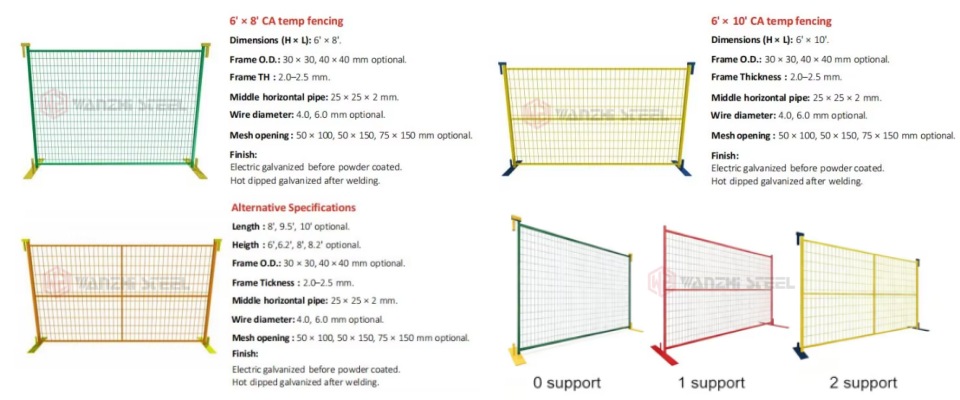

Our Styles, Sizes, and Colors

Recommended Colors

In addition to galvanized silver, the following colors are recommended for the colored portable fencing.

Besides galvanized silver, the following are recommended colors for colored portable fencing:

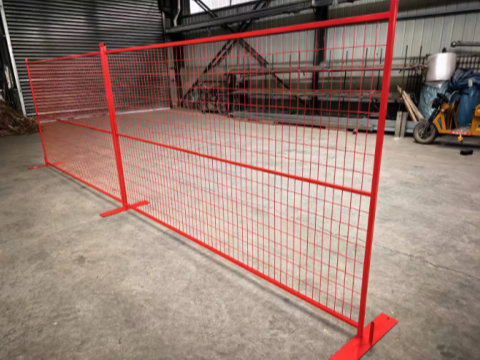

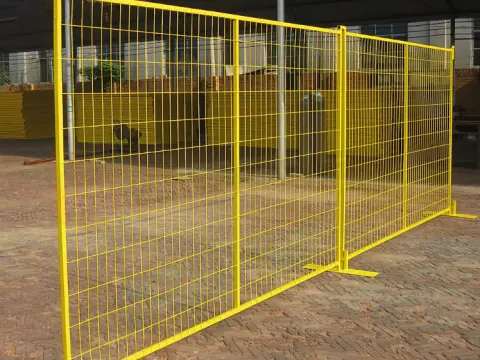

• Yellow: Obvious and warning, reminding people to pay attention to safety. Commonly used in construction sites, power repairs, factory goods areas, and hospitals.
• Green: Close to nature and visually soft. Commonly used in landscaping, community gardens, outdoor breeding areas, and greening construction.
• Blue: Professional and standardized, warning without being glaring. Commonly used in municipal engineering repairs, road and subway construction.
• Black: High-end and sophisticated, with strong occlusion. Commonly used at luxury goods exhibitions, celebrity meet-and-greets, commercial plazas, and villa courtyards.

Common Materials and Applicable Scenarios

Material

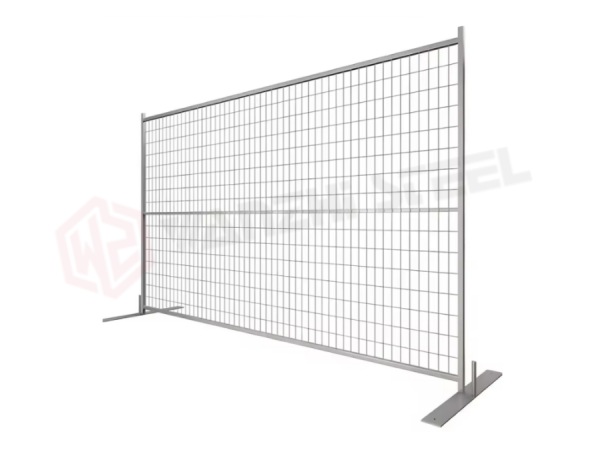

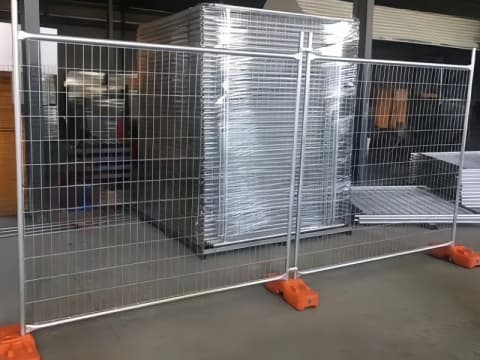

• Galvanized low-carbon steel wire temporary fencing: High strength, impact resistance, rust resistance, and moderate cost. Suitable for construction site isolation and other occasions where aesthetics are not a primary concern.
• PVC-coated portable fence panel: Combines the hardness of steel wire with the corrosion resistance and fade resistance of PVC. Widely applicable, different colors provide eye-catching warning and guidance signals.

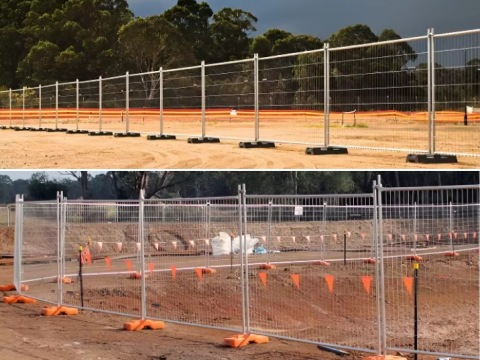

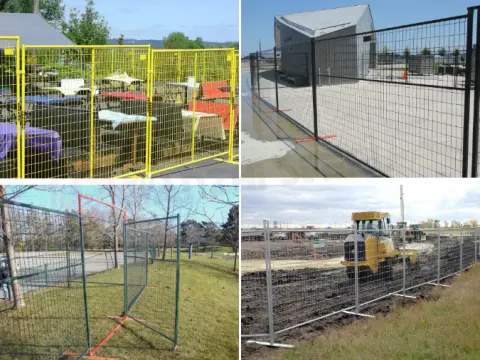

Practical Applications

• Construction: Site edge protection, material storage area zoning, and construction area isolation fencing.
• Event Scenarios: Audience flow control, VIP area demarcation, and ticket gate isolation for concerts, exhibitions, and sporting events.
• Daily Living: Temporary zoning of family courtyards, swimming pool perimeter safety protection, pet enclosures, and warehouse goods classification and partitioning.
• Municipal and Public Facilities: Park barriers, subway transfer passages, municipal roads, temporary traffic control, and also used for farm zoning and temporary flow restriction channels in scenic areas.

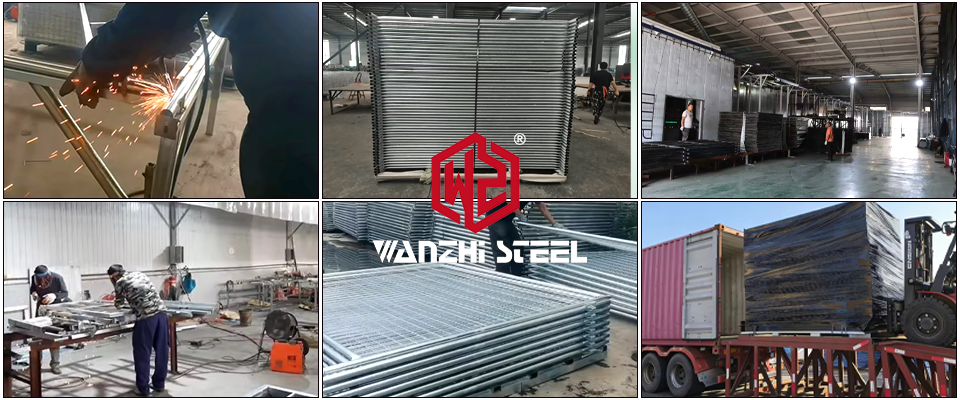

Production Steps

The core process revolves around three main stages: forming, reinforcement, and surface treatment.

Process Details

Q235 low-carbon steel wire is straightened and cut to the target length for warp and weft wires. These are then automatically welded using resistance welding equipment to form a robust mesh. Next, square tubing or angle steel of the same material is welded around the mesh to form a frame, which is then hot-dip galvanized or powder-coated for rust prevention. The clips and metal base are also hot-dip galvanized or painted. Finally, the finished product undergoes quality inspection and packaging.

Buying Guide

What wire diameter should be chosen for construction site protection?

Prioritize 3.8mm-4.5mm thick wire diameter fencing, paired with 20×30mm square tubing frames. Weld tensile strength ≥300N is essential to withstand impacts from construction tools and prevent unauthorized personnel from climbing over.

Why is hot-dip galvanized steel preferred in coastal areas?

Hot-dip galvanizing results in a 60-120μm thick layer. The zinc layer is metallurgically bonded to the steel wire substrate, providing over 3 times the corrosion resistance of ordinary painted steel.

How to match mesh size to isolation needs?

For personnel isolation: 50×100mm/100×100mm mesh is recommended. For pet/small animal isolation: 0×50mm fine mesh is recommended. For equipment/building material storage: 150×150mm-200×200mm.

Client Cases

Why Choose Wanzhi Steel Factory

• Controllable Quality: Fully automated welding and hot-dip galvanizing/electrostatic powder coating processes ensure high mesh precision, strong welds, and strong adhesion of the zinc/plastic coating, resulting in excellent weather resistance and rust resistance.
• Flexible Customization: Supports various mesh sizes and accessories to meet the temporary fencing and isolation needs of construction, municipal, and event scenarios.
• Timely Delivery: Multiple standardized production lines with an annual capacity of 200,000 tons ensure timely delivery of large orders and a stable supply.
• Complete Certifications: A proven reputation; products have passed multiple authoritative quality certifications and are sold in domestic and international markets, with applications in many locations.
