Galvanized Steel Guy Wire

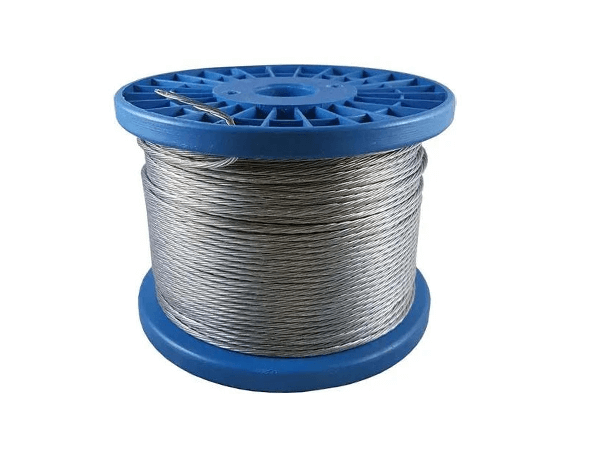

Galvanized steel guy wire, also known as galvanized steel strand, is a type of steel cable made by twisting multiple high-strength steel wires and hot-dip galvanizing them. Its surface zinc layer provides excellent corrosion protection, and its core characteristics are high tensile strength and good durability. Mainly used for wire fixation of structures such as utility poles, communication towers, and masts, providing stable support and windproof protection for tall structures through tension, used in power, communication, and construction engineering. Wanzhi Steel specializes in producing galvanized guy wires, galvanized steel cables/wire ropes, providing a wide range of rope structures and diameter options, customizable sizes, and roll weights. If you are interested, please feel free to contact us.

Specification

Item	Galvanized Steel Guy Wire
Place of Origin	Hebei, China
Standard	AISI, ASTM, BS, DIN, JIS, GB, EN

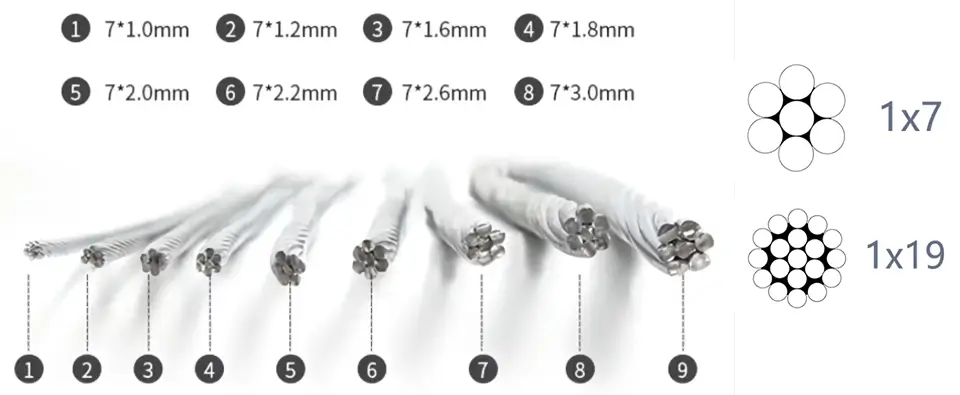

Structure	7*1.0mm/7*1.2mm/7*1.6mm/7*1.8mm/7*2.0mm, etc
Surface treatment	Hot-Dip Galvanized
Length	100m,500m,1000m,2000m, or customer specified
Tensile strength	≥1470N/MM2
Color	Silver Bright
Sample	Free Available
Payment term	TT 30% Advance + 70% Balance
Price Item	FOB, CIF, EXW, CFR, etc
Packing	Wooden Reel/coil/roll/Z2 Packing
Certification	ISO 9001, SGS, ABS, BV
MOQ	5 tons

What is Galvanized Steel Guy Wire?

Galvanized guy wire is a high-strength steel strand, also called”gi stay wire”,  “galvanized strand”,  used to secure tall structures such as poles, communication towers, and utility poles. Its core is made of stranded carbon steel wire, hot-dip galvanized or electroplated to create a corrosion-resistant coating that resists outdoor corrosion. It balances structural loads, resists wind loads, and prevents tilting through tension. It is widely used in outdoor applications such as power and telecommunications.

Key Features

High Tensile Strength

The twisted structure of multiple steel wires provides extremely high tensile strength, capable of withstanding significant tension and ensuring structural stability.

Excellent Corrosion Resistance

The hot-dip galvanized layer provides a physical barrier and electrochemical protection, effectively resisting atmospheric, rain, and UV damage, extending its outdoor service life.

Durability and Reliability

The zinc layer offers strong adhesion, abrasion resistance, and scratch resistance, making it suitable for harsh environments, providing long-term stable performance and low maintenance costs.

Flexible and Easy to Install

The twisted design combines rigidity with flexibility, making it easy to bend, cut, and secure, making installation convenient and compatible with a variety of anchoring systems.

Economical and Practical

Highly cost-effective, its rust-resistant properties reduce replacement frequency, making it widely used for cable anchoring in the power, communications, and construction sectors.

Application Areas

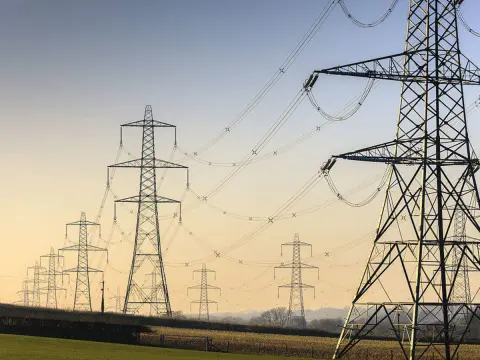

1. Stabilizing Power and Telecommunication Towers

Galvanized guy wire core is used to secure power transmission towers and communication signal towers. It effectively helps these tall structures withstand strong winds and inclement weather, ensuring their stability and upright position, and safeguarding the safe operation of power grids and communication networks.

2. Supporting Large Pole Structures and Buildings

This product is also commonly used to stabilize urban structures such as streetlight poles, surveillance poles, and flagpoles. In the construction sector, it provides the necessary tensile support to ensure the safety of large temporary structures such as construction cranes, tents, and storage sheds.

3. Supporting Agriculture and Horticulture

In agriculture, galvanized guy wire is used to support greenhouse structures and large irrigation systems. In horticulture, it is often used to provide traction and anchorage for newly planted trees or climbing plants, supporting their healthy growth.

Selection Guide

Diameter Selection

The primary basis for selecting the diameter is the breaking force, which must meet the designed safety factor. Usually, the safety factor of the key structure is not less than 3:1, that is, the breaking force is at least 3 times the maximum working tension.

Common specifications (inch/mm)	Approximate nominal diameter (mm)	Typical breaking force (kN)	Applicable Scenarios
1/4″ (6.35mm)	6.0	20 – 25	Small communication antennas, garden flagpoles, light gardening supports
5/16″ (7.94mm)	8.0	30 – 40	Low-voltage power poles, residential monitoring poles, small signboards
3/8″ (9.53mm)	10.0	45 – 55	The most commonly used specifications, used for standard transmission poles and communication tower cables
1/2″ (12.70mm)	13.0	80 – 100	High voltage transmission towers, communication towers, building structure supports
5/8″ (15.88mm)	16.0	120 – 140	Heavy industrial applications, such as port crane cable pulling and large wind turbine anchoring

Selection advice: Calculate the expected maximum load (including wind load, ice load, etc.), multiply it by the safety factor, and then select a specification with a breaking force greater than this value.



Zinc Layer Weight

The zinc coating is typically expressed in “g/m²” and is designated in the standard. We offer zinc coatings ranging from Z30 to Z275 for galvanized wire. Our technical team can assist you in selecting the right coating.

• Z275: For use in most urban and general industrial areas, it’s a common and most cost-effective option.
• Z180: For use in mild environments, rural or inland areas with clean, dry air, and meets basic corrosion protection requirements.
• Z30-Z140: For general corrosion protection/indoor environments, offering better economical performance.

Main Structural Types

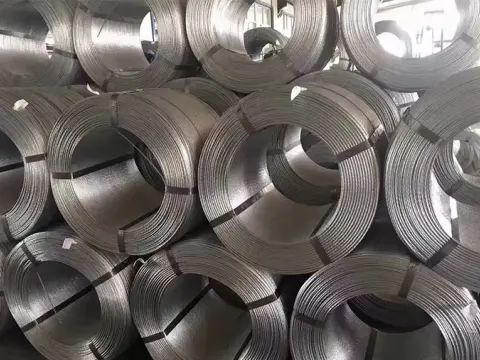

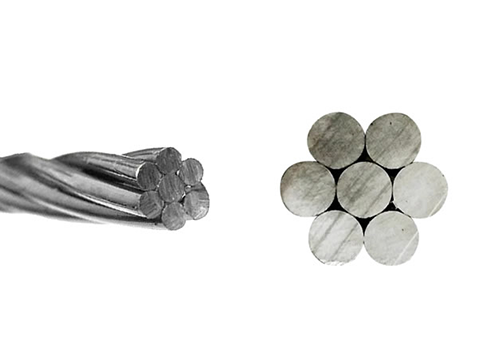

1×7 Construction

Consists of a single strand of a central wire and six outer strands twisted together. This construction is extremely rigid and resists bending.

1×19 Construction

Consists of a strand of steel wire wrapped around a central wire, using more and finer wires than the 1×7 construction. It offers exceptional rigidity and greater flexibility than the 1×7.

7×7 Construction

The most common type. This construction consists of seven strands of steel rope (each containing seven wires), twisted together. It offers excellent flexibility, making it easy to bend and install while maintaining high strength.

7×19 Construction

Consists of seven strands of steel rope (each containing 19 finer wires). This is the most flexible construction, consisting of a large number of finer wires, making it highly flexible and resistant to fatigue from repeated bending.

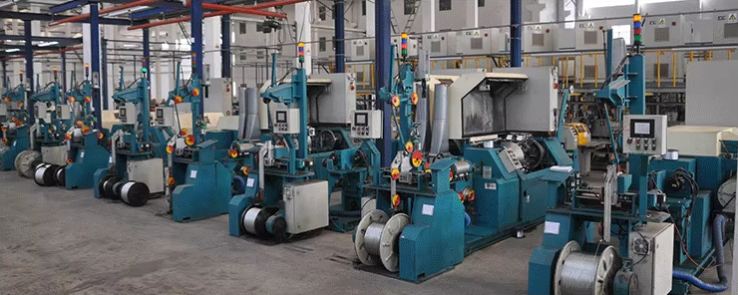

Production Process

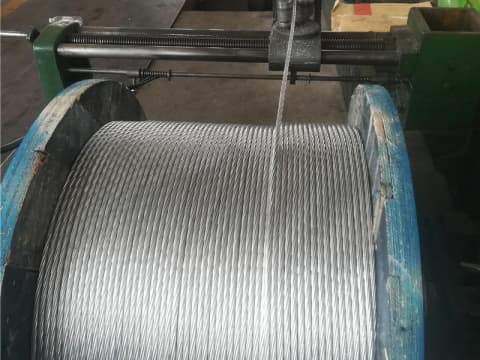

Stranding

This is the core step. Multiple galvanized steel wires are spirally twisted around a central wire on a dedicated stranding machine, depending on the design.

Stabilization

While stabilization (pre-tensioning) is optional, some products may be pre-stretched. This eliminates internal stresses in the cable, reduces elongation, and provides greater dimensional stability.

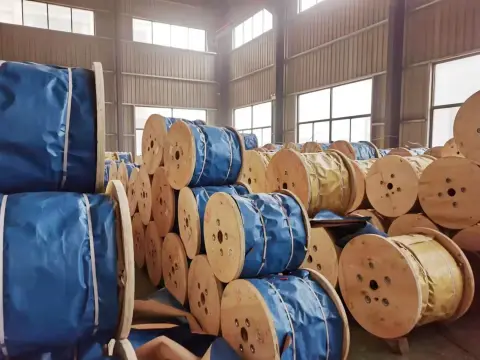

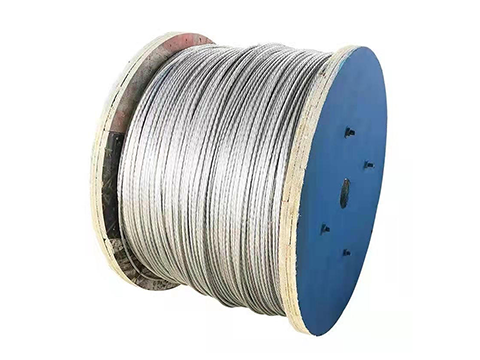

Winding & Packaging

Finally, the finished galvanized stranded wire is wound onto a spool or coil and packaged in appropriate rust-proof packaging, such as waterproof paper or plastic film.

FAQs

Q1: How to choose between galvanized guy wire and stainless steel guy wire?

Galvanized guy wire is the preferred choice as it is economical, strong, and suitable for most environments, offering the best value for money. 304/316 stainless steel guy wire is only recommended for use in extreme corrosion scenarios with sufficient budget.

Q2: What is the expected service life of galvanized steel strand?

The lifespan of Z275 galvanized wire ropes depends largely on the environment. In mild rural environments, the lifespan may exceed 30 years, and in heavily industrial or coastal areas, it may be around 10-15 years.

Q3: How much tension is required during installation?

Tensioning force must be determined by a structural engineer based on calculations of wind loads, ice loads, and other factors. Arbitrary adjustment is strictly prohibited. Initial tension is typically set at 10%-20% of the breaking force and calibrated using a tension dynamometer to ensure uniform tension across the entire group of cables.

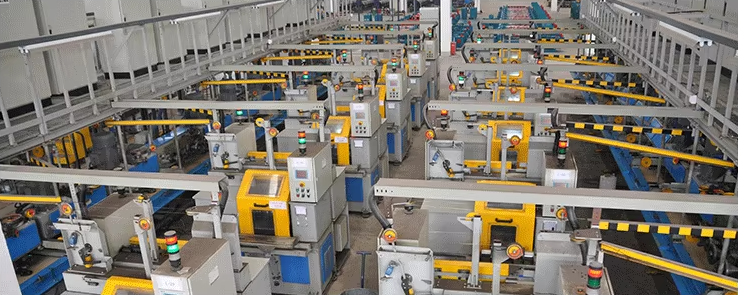

Galvanized Steel Guy Wire Supplier- Wanzhi Steel

Whether it’s stabilizing a communications tower or supporting agricultural facilities, choosing the right galvanized steel guy wire is crucial to ensuring project safety and long-term success. Wanzhi Steel is committed to providing customers with comprehensive guy wire solutions, not just the products themselves. With efficient logistics and good after-sales service, we have become a reliable partner for many global contractors and buyers. Learn more about technical specifications or contact our expert team directly for precise product selection advice.
