Concertina Coil

Concertina coil is made of high-strength galvanized steel wire or GI and stainless steel sheet strip, which is precision stamped and stretched into a blade shape, and then spirally wound and fixed onto the core steel wire to form a continuous concertina coil structure. Also known as razor blade wire, concertina helix coils, and punched tape concertina coil.

Wanzhi Steel manufacture concertina razor wire in various blade shapes. As a leading manufacturer of concertina coil fencing, we offer concertina wire fences with diameters ranging from 300 mm to 1200 mm to suit different site conditions.

Specification

Item	Concertina coil
Place of Origin	Shandong, China
Standard	AISI, ASTM, BS, DIN, JIS, GB, EN
Blade types	Fish Hook Blade, Long Blade, Medium Blade, Short Blade, Tear Blade
Tensile strength	1250 – 1350 and 1350 – 1550N/mm²
Wire	Galvanized wire, SS204Cu, SS304, SS316
Blade material	Galvanized steel sheet, SS430, SS304, SS316
Sample	Free Available
Payment term	TT 30% Advance + 70% Balance
Price Item	FOB, CIF, EXW, CFR, etc
Packing	Standard export packaging
Certification	ISO 9001, SGS, ABS, BV



Size Details

Parameters	Specifications
Blade Length	10mm – 66mm
Coil Length	4m – 15m
Core Wire Diameter	2.50mm – 3.0mm
Blade Thickness	0.40mm – 0.60mm
Coil diameter/Height	400 mm – 1200 mm
Weight per Coil	5.5 – 18 kg

Features

• High Deterrence: Sharp, pointed metal blades, available in various blade types to counter different intrusion threats.
• Flexibility: Variable coil diameter allows for rapid deployment atop walls or fences, regardless of terrain.
• Durability: Constructed with hot-dip galvanized steel or 304/316 stainless steel, offering excellent corrosion and oxidation resistance and a long service life.
• Economy: Wide coverage, low procurement and maintenance costs, and high cost-effectiveness.

Application

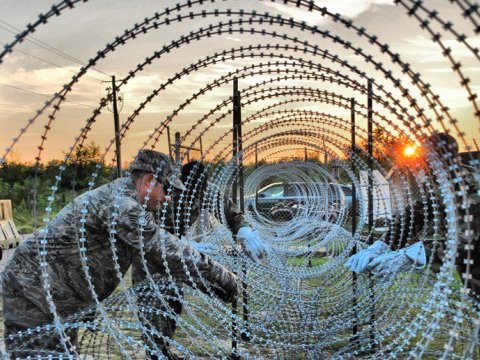

• National Defense Border
• Military Management Perimeter
• Prison/Detention Center Fence Tops and Walls
• Airport Fence Flight Zone Boundaries
• Nuclear Power Plant/Power Facility Areas
• Sensitive Locations of Government Confidential Units
• Industrial Parks and Factories
• Logistics and Warehousing Centers
• Private Estates/Villas
• Wildlife Park Boundaries

Concertina Coil For Sale

PRODUCT NAME	PRODUCT SPECIFICATION
	Material	Wire Diameter	Coil Diameter	Coil Length	Zinc Coating	Weight per Coil	Blade Profile
Concertina Coil	GI / SS / AL	2.50 MM	600 MM	6 Meters	Z250	8.50 Kgs	BTO – 10 & 22
Barbed Tape Concertina Coil	S.S -304 or S.S – 430	2.60 MM	450 MM	8 Meters	Z180	14.00 Kgs	CBT – 60 & 65
Concertina Coil Fencing	GI or Stainless	2.50 MM	610 MM	6 Meters	Z230	9.50 Kgs	BTO – 10 ,12 & 22
Concertina Fencing	GI	2.64 MM	730 MM	10 Meters	Z275	8.25 Kgs	BTO – 30
Concertina Helix Coil	Aluminium	3.00 MM	550 MM	15 Meters	Z150	7.50 Kgs	BTO – 22 & CBT60
Concertina Fence	Galvanized	3.00 MM	650 MM	10 Meters	SS -304	7.80 KGS	BTO – 22 & 30
600 mm Dia Concertina Coil	GI	2.50 MM	600 MM	6 Meters	Z230	8.50 Kgs	BTO – 10 & 22
Concertina Razor Coil	SS ot ZAL	2.95 MM	980 MM	15 Meters	275 GSM	15.00 kgs	CBT – 60 & 65
Razor Concertina Coil	GI or SS	3.00 MM	300 MM	4 Meters	250 GSM	6.00 kgs	CBT – 60 & 65
Galvanized Concertina Coil	Galvanized	2.60 MM	500 MM	5 Meters	Z260	7.50 kgs	BTO – 10 & 22
Helix Concertina Coil	Hot dip GI	2.80 MM	1200 MM	15 Meters	Z290	18.00 kg	BTO –12 & 30
Anti-Rust Concertina Coil	ZAL Steel	2.60 MM	630 MM	6 Meters	300 GSM	9.50 kgs	BTO – 10 , 22 & 30
Baebed Razor Tape Concertina Coil	316 SS	2.50 MM	400 MM	5 Meters	SS-316	7.00 Kgs	CBT – 60 & 65
SRPBT Concertina Coil	ZAL or SS GR	2.70 MM	610 MM	6 Meters	150GSM	8.50 Kgs	BTO – 22
Concertina Baebed Razor Coil	GI or Aluminum	3.00 MM	400 MM	4 Meters	275 GSM	5.50 Kgs	BTO – 30 & CBT – 60

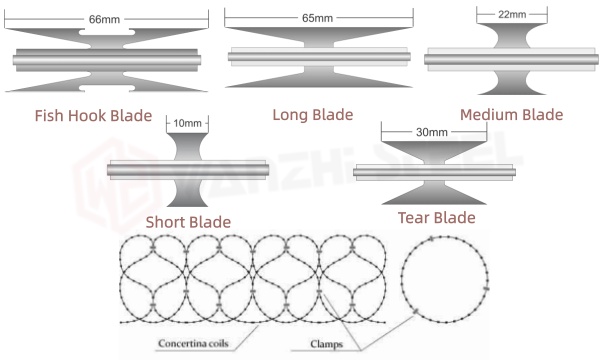

Our 5 blade Shapes

We offer five blade types: Fish Hook Blade, Long Blade, Medium Blade, Short Blade, and Tear Blade, comprehensively covering your required security level. Whether for military, factory, yard, or government applications, we provide robust intrusion prevention solutions.

Wanzhi Steel- Concertina Coil Manufacturer

As a manufacturer with a complete production chain, we implement strict quality control from raw materials to finished products, ensuring that every meter of barbed wire possesses the promised deterrent effect, durability, and resistance to damage. Our technical team will provide the optimal razor wire configuration and highly competitive ex-factory price based on your security level, terrain characteristics, and budget.

Tell us your project needs now, and you will receive:

• Precise selection recommendations: Avoid inadequate protection or over-investment.
• Real factory price: Save you on intermediary costs.
• Stable delivery capability: Ensure your project schedule is met.



Get samples or bulk quotes! Chat with Us Online,

or send an email to: info03@wanzhisteel.com





Wanzhi Steel is an ISO 9001-certified steel factory located in Hebei, China. It has been specializing in the production of galvanized wire, low carbon wire, barbed wire, SS wire, concertina razor wire, barbed wire fence, PVC Coated Galvanized Wire, and galfan wire for 14 years, with a monthly output of 1,800 tons. With high-quality products and good services, its products have been exported to more than 120 countries around the world.
